CYALKIT-E03

Solar-Powered BLE Sensor 5 Pack

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYALKIT-E03
CYALKIT-E03

Product details

  • Board Type
    Evaluation Board
  • Family
    DC-DC Converter
  • Input Type
    DC
  • Qualification
    Consumer, Industrial
  • Target Application
    Wearables, Mobile devices
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

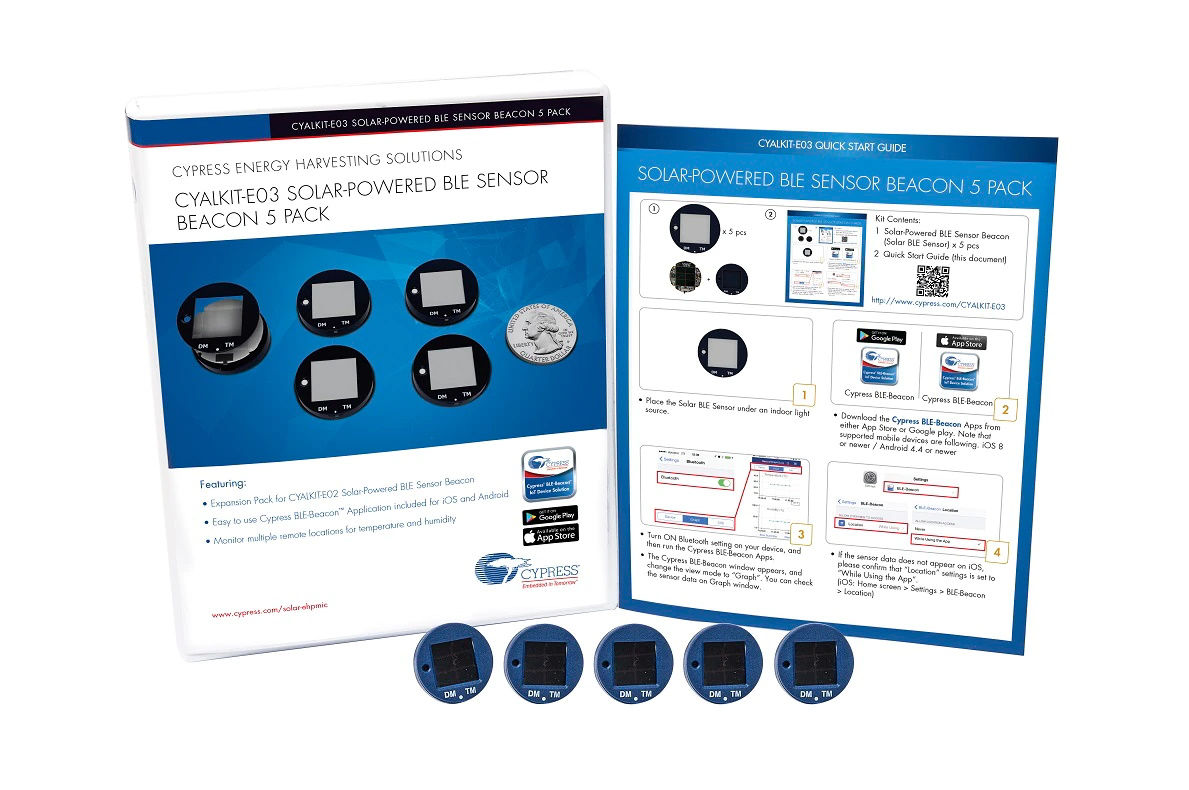

The CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack expands the CYALKIT-E02 for a wireless sensor network. The Solar BLE Sensor transmits temperature and humidity data using BLE broadcasting mode, powered by solar energy managed by the Energy Harvesting PMIC S6AE103A. It includes five Sensor Beacons and enclosures, with a Quick Start Guide. For detailed specifications, refer to the CYALKIT-E02 Kit.

Features

  • CYALKIT-E02 Solar-Powered BLE Sensor Beacon RDK Expansion Pack​
  • Includes the following:
  • Five Solar-Powered BLE Sensor Beacons
  • Five enclosures for Solar-Powered BLE Sensor Beacons
  • Quick start guide
  • Solar BLE Sensor
  • Tiny, thin design: 25 mm diameter x 5.5 mm (Enclosure size)
  • Operates at minimum 100 lux
  • Transmits temperature and humidity sensor data
  • Up to 30-hours operation without ambient light via the fully charged super capacitor (0.2 F)
  • Mounted Energy Harvesting PMIC S6AE103A and EZ-BLE PRoC Module,
  • Temperature and humidity sensor, 15 mm x 15 mm solar cell
  • BLE-Beacon app
  • Free software application
  • Supported iOS, Android devices,and PCs
  • 2D/3D graph visualization for sensor data
