Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

CY8CPROTO-064B0S3

END OF LIFE

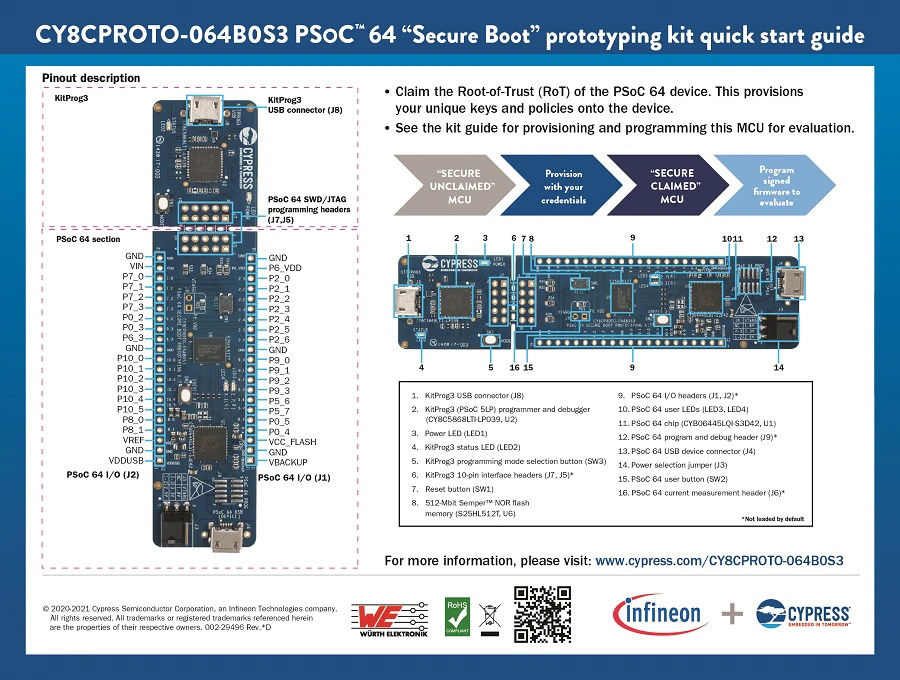

PSOC™ 64 "Secure Boot" Prototyping Kit
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY8CPROTO-064B0S3
CY8CPROTO-064B0S3
User Manual

Product details

  • Board Type
    Evaluation Board
  • Input Type
    DC
  • Qualification
    Industrial, Consumer
  • Target Application
    Industrial automation, Home entertainment, Security for IoT
OPN
CY8CPROTO-064B0S3
Product Status discontinued
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The PSOC™ 64 "Secure Boot" Prototyping Kit (CY8CPROTO-064B0S3) enables evaluation and development using the PSOC™ 64 Line of Secured MCUs. It includes the PSOC™ 64 "Secure" MCU with up to 512KB flash, up to 256KB SRAM, on-board programming/debugging with KitProg3, and 512-Mbit Quad-SPI Semper™ NOR flash, along with user LEDs and buttons.

Features

  • Based on PSOC™ 6 MPN: CYB06445LQI-S3D42
  • Kit for: PSOC™ 6445
  • ModusToolbox™ software support
  • 512-Mbit external Quad-SPI NOR Flash
  • On board SWD, USB-UART, USB-I2C bridges
  • User buttons, LEDs

Benefits

  • PSOC™ 6 memory -384 KB flash, 176 KB RAM
  • Secured boot, secured provisioning
  • Rich analog, digital blocks, CAPSENSE™
  • Low power, battery operated use cases
  • CAN-FD for industrial applications
