Active and preferred
RoHS Compliant

CY4532

EZ-PD™ CCG3PA evaluation board
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY4532
CY4532
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Industrial, Consumer
  • Target Application
    Adapters and chargers, Home entertainment, Mobile devices
Recommended
OPN
CY4532
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

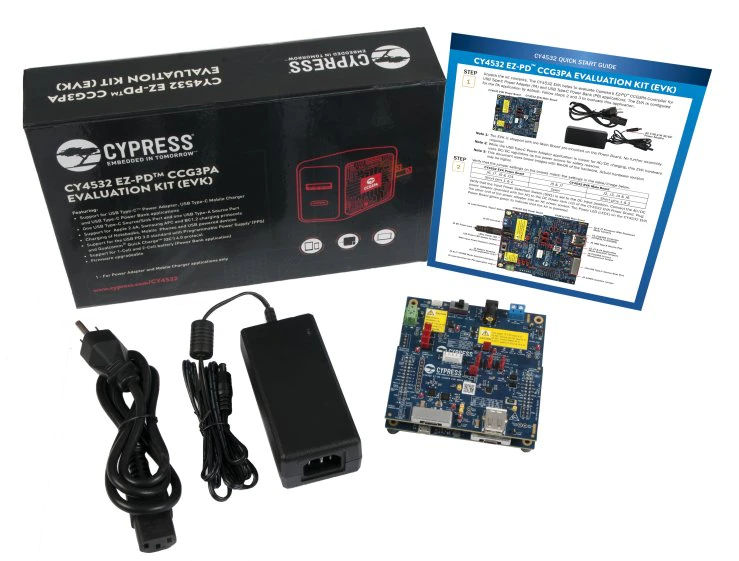

CY4532 evaluation kit (EVK) is based on the EZ-PD™ CCG3PA family of USB Type-C microcontrollers. This EVK is intended to be an evaluation vehicle for USB Type-C power adapter (PA), USB Type-C mobile charger and USB Type-C power bank (PB) applications. The kit can be configured for the PA or PB application using a combination of firmware, jumper settings on the kit hardware, and external accessories.

Features

  • Supports USB Type-C and USB-PD 3.1
  • Supports BC1.2, QC3.0, and Samsung AFC
  • Supports Apple charging 2.4A
  • Support DC-DC control over FB & PWM
  • Support adapter & charger applications
  • Support power bank DRP applications
  • Firmware upgradeable

Benefits

  • Support firmware updgrade
  • Support source/sink design

Applications
