CY4502

END OF LIFE
EZ-PD™ CCG2 EMCA development board
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY4502
CY4502
View replacement

Product details

  • Board Type
    Evaluation Board
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Industrial, Consumer
  • Target Application
    Adapters and chargers, Home entertainment, Mobile devices
OPN
CY4502
Product Status discontinued
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

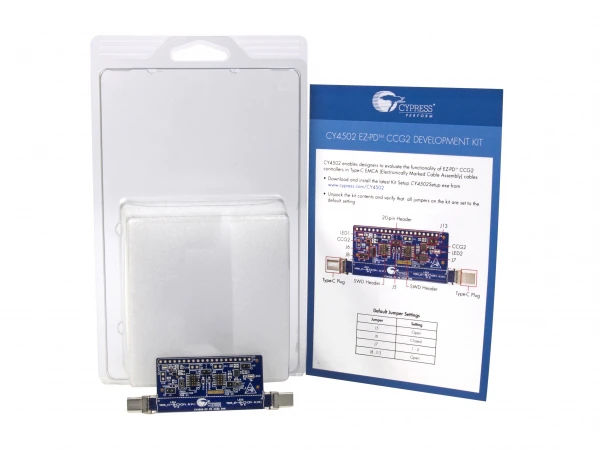

This guide covers software installation and operation of the provided development board, detailing firmware downloading and debugging methods. The CY4502 kit allows evaluating CCG2 controllers in Type-C EMCA cables, reporting characteristics to the Type-C Host. It includes two CCG2s, two Type-C plugs, and SWD headers for programming each.

Features

  • USB-C and USB-PD for Cable SPR & EPR
  • Cable with RA
  • 32 KB flash with 4 KB SRAM
  • Integrated transceiver with resistors
  • Wide operating range: 2.7 V to 5.5 V
  • System level ESD on CC pins +/
  • 8kV

Benefits

  • Simple EMCA controller solution
  • Reduced solution footprint
  • GUI based configuration utility
  • Compliant to USB PD specification
  • Extensive interop tested solution
