BOARD BTS50005-1LUA
BOARD BTS50005-1LUA
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    Power PROFET™ + 12/24/48V, High-side switches
  • Input Type
    DC
  • Output Voltage
    3.1 V to 28 V
  • Product Name
    BTS50005-1LUA, BTS50010-1LUA
  • Qualification
    Automotive
  • Sub Application
    Relays, Power Distribution, ECU power feeds, Automotive
  • Supply Voltage
    3.1 V to 28 V
  • Target Application
    Automotive, Relays, Power Distribution, ECU power feeds
  • Topology
    High-side switch
Recommended
OPN
BOARDBTS500051LUATOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

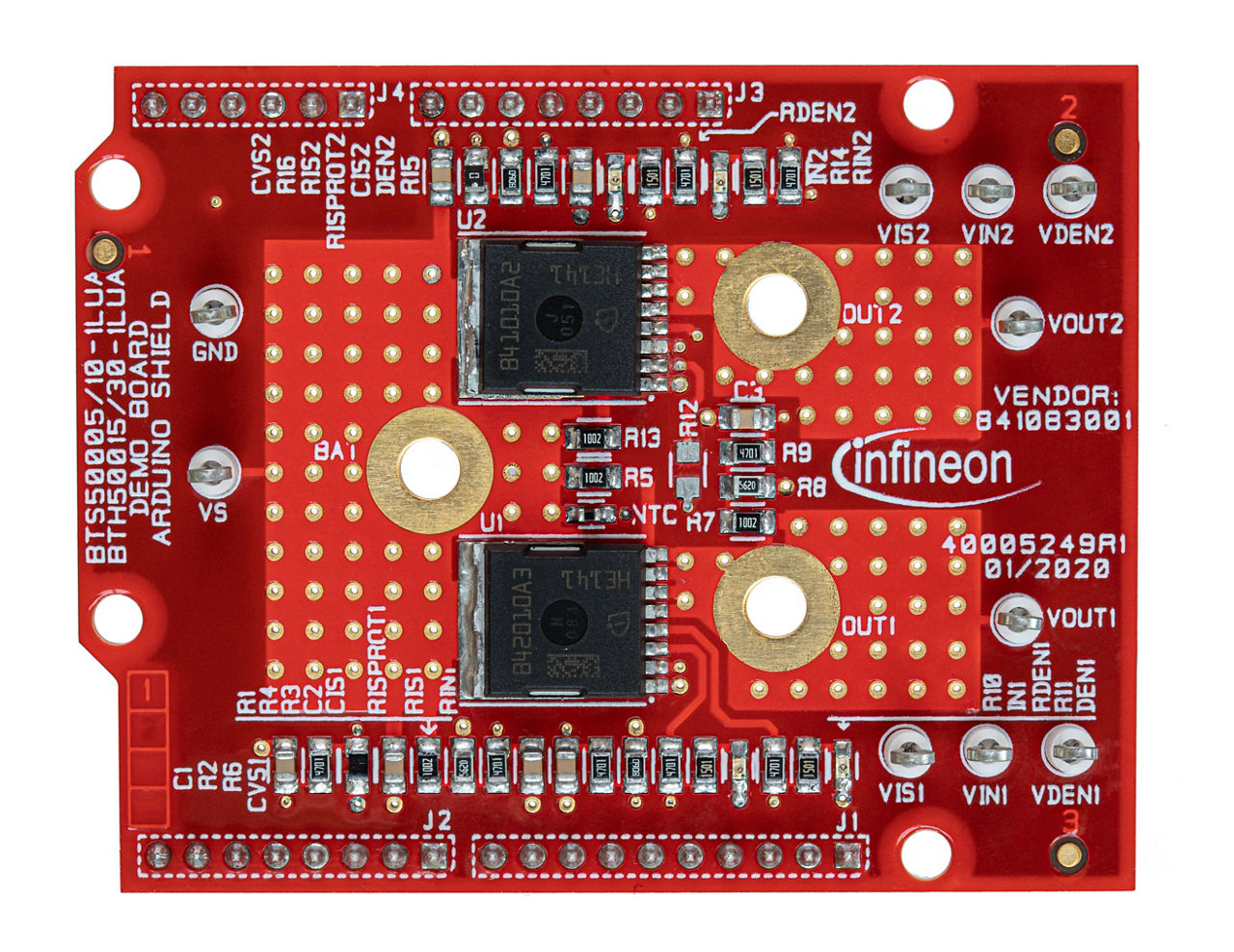

The 12V protected switch shield for Arduino drives loads using BTS50005-1LUA (RDS(ON) 0.6 mΩ) and BTS50010-1LUA (RDS(ON) 1.0 mΩ). It's designed for relay and fuse replacement in power distribution and junction boxes, compatible with Infineon’s XMC1100 Boot Kit and the Arduino UNO form factor. Allows quick evaluation of features like analog current feedback and protections against short circuits.
