BGSF18D BOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGSF18D BOARD
BGSF18D BOARD

Product details

OPN
BGSF18DBOARDTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

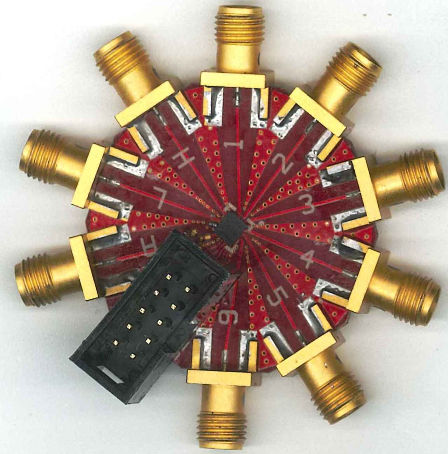

The BGSF18DM20 is a SP8T switch module for wireless applications up to 2.7 GHz, suitable for Quadband GSM and WCDMA. It features 2 high-linearity GSM Tx paths, 6 WCDMA TRx ports, integrated harmonic filters, and direct battery connection. With low insertion loss, high port-to-port isolation, and no need for external DC blocking capacitors, it's ideal for various wireless applications.
