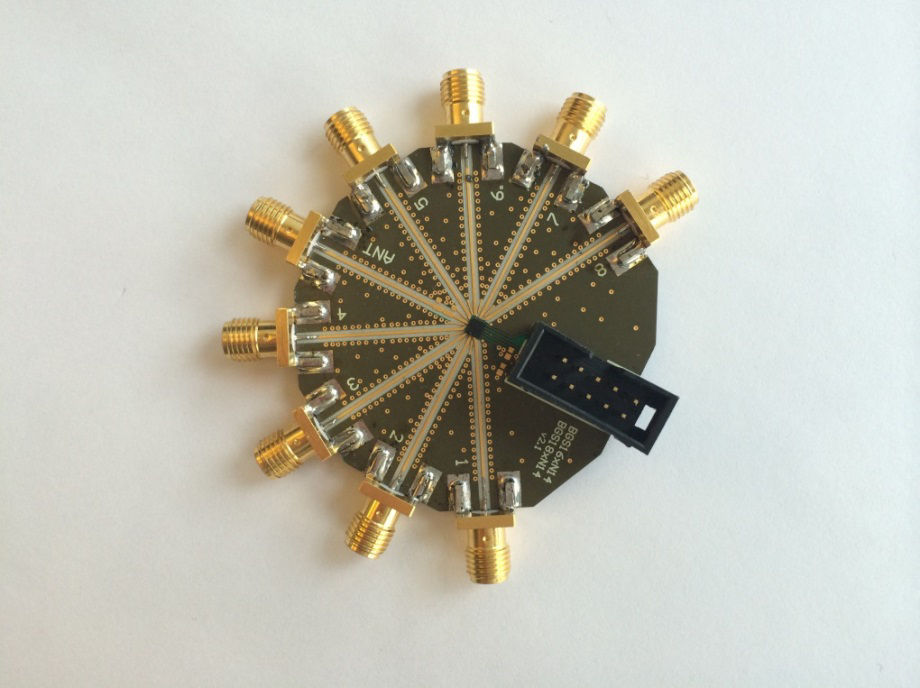

BGS18MN14 BOARD

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGS18MN14 BOARD
BGS18MN14 BOARD

Product details

OPN
BGS18MN14BOARDTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The BGS18MN14 is a Single Pole Eight Throw (SP8T) Diversity Switch Module for wireless applications up to 2.7 GHz. Suitable for multi-mode WCDMA/LTE diversity, it features ultra-low insertion loss, high port-to-port isolation, and 8 high-linearity, interchangeable RX ports. It supports direct to battery supply with a voltage range from 2.5V to 5.5V and integrates an MIPI RFFE interface supporting 1.2V and 1.8V bus voltage.

Features

  • Suitable for multi-mode WCDMA / LTE diversity applications
  • Ultra-low insertion loss and harmonics generation
  • 8 high-linearity, interchangeable RX ports
  • 0.1 to 2.7 GHz coverage
  • High port-to-port-isolation
  • Direct to battery supply enabled by large supply voltage range from 2.5 V to 5.5 V
  • Integrated MIPI RFFE interface supporting 1.2 and 1.8 V bus voltage
  • Software programmable MIPI RFFE USID
  • No decoupling capacitors required if no DC applied on RF lines
