BASICPLUS DEMOBOARD
BASICPLUS DEMOBOARD
ea.

Product details

  • Board Type
    Demo Board
  • Family
    LITIX™ Basic+
  • Input Type
    DC
  • Language
    SPICE
  • Output Voltage
    1.4 V to 7 V
  • Product Category
    Evaluation Boards
  • Qualification
    Automotive
  • Sub Application
    LED Rear Lighting, Interior Lighting, Exterior Lighting, General purpose lighting
  • Supply Voltage
    8 V to 16 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
BASICPLUSDEMOBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

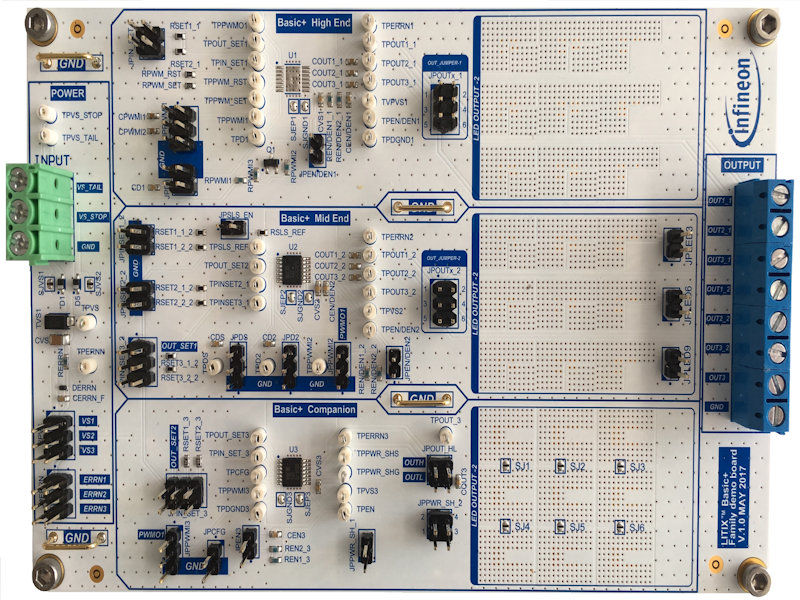

Equipped with one TLD2141-3EP (High End), one TLD2331-3EP (Mid End) and one TLD1114-1EP (Companion) LITIX™ Basic+ devicesCompatible with all LITIX™ Basic+ High End and Mid End devicesTypical supply voltage range: 8V – 16V (5.5V – 40V), with possibility to power-ON and test each device separatelyOn-board LED load for each device, 3x3 LEDs per devicePossibility to connect to external load15cm x 10cm 2-layer PCB
