AUIR3242S BOARD B2B
AUIR3242S BOARD B2B
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    105 mm x 120 mm
  • Family
    Gate Driver
  • Input Type
    DC
  • Qualification
    Automotive
  • Supply Voltage
    3 V to 36 V
  • Target Application
    Automotive, Power Distribution, Relays, Battery Switch
  • Topology
    High-side switch, Q-diode, Back to Back common source
Recommended
OPN
AUIR3242SBOARDB2BTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
AUIR3242S - Board back to back is a semiconductor-based solution of a fail-safe power switch for 12V automotive applications. It has a back to back, N-channel MOSFET common source structure and allows replacement of mechanical relays by cutting the current flow in both directions. Additionally, the back to back structure blocks current in case of reverse battery situation. Switching logic is active low

Features

  • Control input active low
  • Very low quiescent current on&off state
  • Back to back configuration
  • Boost converter with integrated diode
  • Support standard gate voltage level
  • Under voltage lockout
  • Analog gate current monitoring
  • Wide operating voltage 3-36V
  • Lead-Free, Halogen Free, RoHS compliant

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

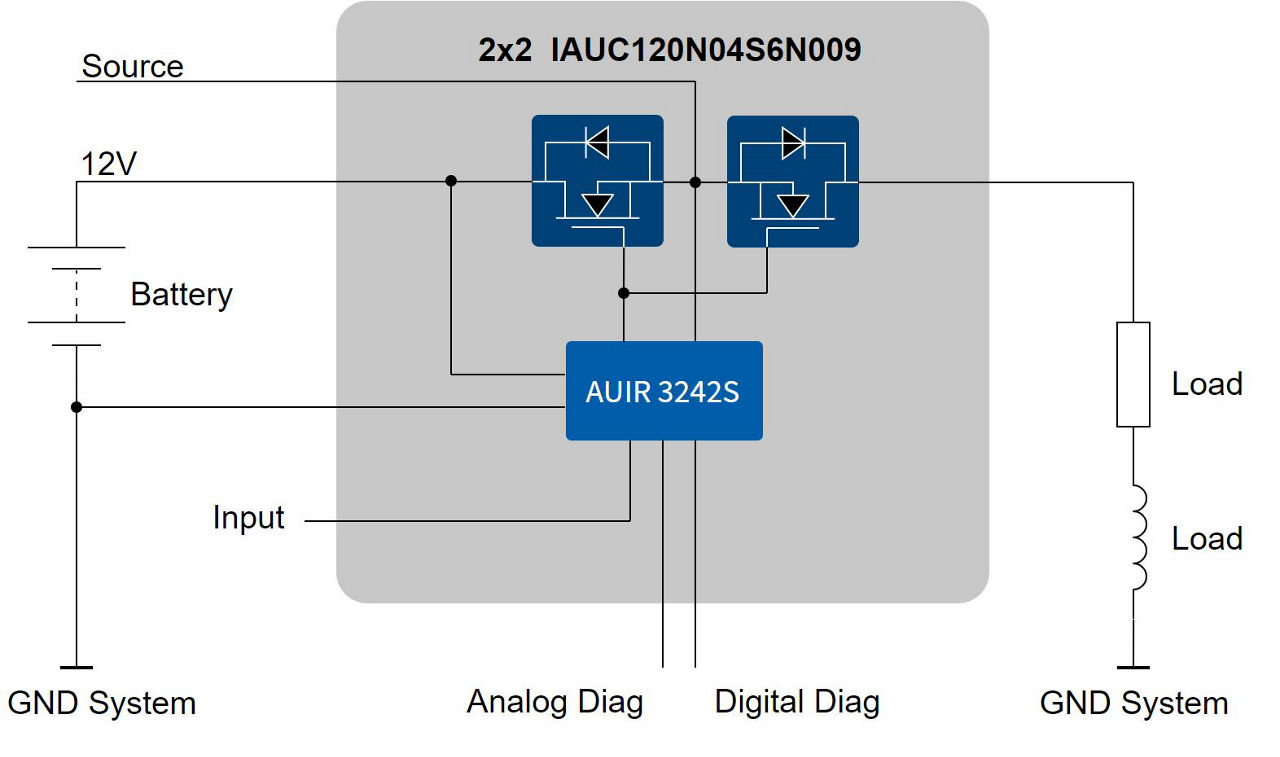

AUIR3242S-Block-diagram
AUIR3242S-Block-diagram
AUIR3242S-Block-diagram AUIR3242S-Block-diagram AUIR3242S-Block-diagram
×
