ACIC BOARD
ACIC BOARD
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    (78,41x40,38)mm
  • Family
    Alternator Regulator
  • Input Type
    DC
  • Interfaces
    LIN, USB
  • Mounting
    TO-220-5 Socket
  • Output Current max
    12 A
  • Output Voltage
    10.6 V to 16 V
  • Qualification
    Automotive
  • Sub Application
    Alternator
  • Supply Voltage
    9 V to 40 V
  • Target Application
    Automotive
  • Topology
    3-Phase Motor
Recommended
OPN
ACICBOARDTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

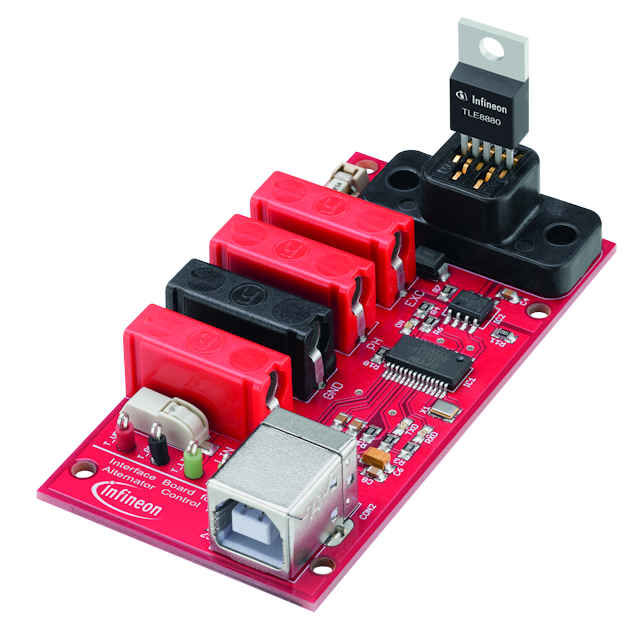

Interface board for Infineon LIN alternator regulator IC family (TLE888x) to get familiar with the regulator ICs as fast as possible. Together with the interface software (available for download) the board enables an easy and convenient Design-In and Debugging. The board can be operated at an input voltage range from 9 V up to 40 V DC.

Features

  • EEPROM prog with alternator regulator
  • USB to connect the interface board
  • Command line tool for automation

Applications
