6ED100E12-F2

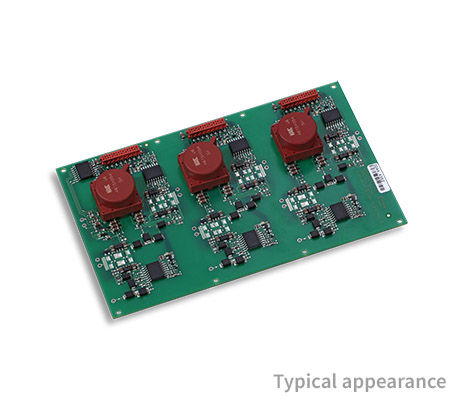

Evaluation Driver board for EconoPACK™+ IGBT modules

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

6ED100E12-F2
6ED100E12-F2

Product details

  • Applications
    CAV, Drives, Power Supply, Solar
  • Board Type
    Evaluation Board
  • Family
    Gate Driver, IGBT Modules
  • Input Type
    DC
  • Product Name
    6ED100E12-F2
  • Sub Application
    CAV, Solar, Renewable Energy, Power Supply, Drives
  • Target Application
    Wind Energy Systems, Solar Energy Systems, Motor Control & Drives, Industrial
  • Topology
    B6 Bridge
OPN
6ED100E12F2EVALNOSA1
Product Status on request
Infineon Package E-EUPEC
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package E-EUPEC
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

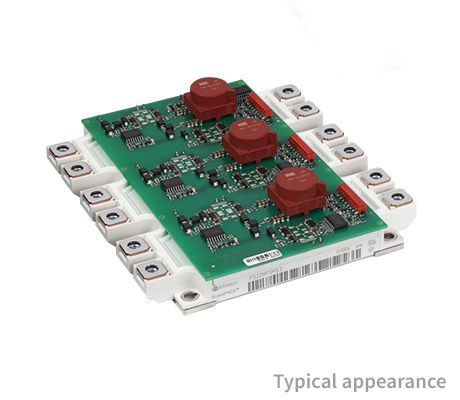

The Evaluation Driver board for 1200 V EconoPACK™+ IGBT modules , using a coreless transformer single-channel driver 1ED020I12-F2 were developed to support customers during their first steps designing applications. The IGBT module is to be ordered separately.

Features

  • Plug & play solution
  • Includes transformer technology
  • Mech. adaption to module package

Applications
