Overview

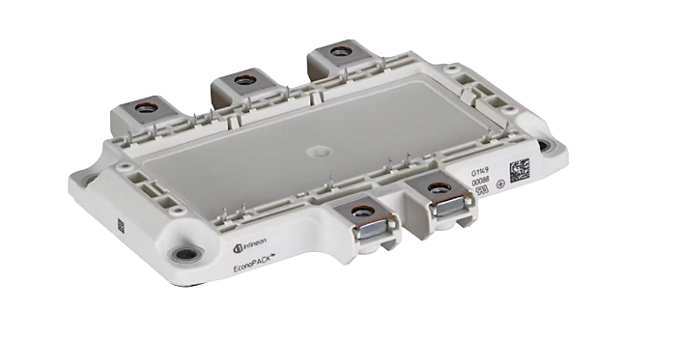

EconoPACK™ 4 package is our world standard and perfectly fits into the well-known Econo portfolio.

Key features
  • Easy assembly: PressFIT control pin
  • Rugged mechanical design
  • Ultrasonic-welded screw terminals
  • Injection-molded screw terminals
Applications
EV charging
Motor Control
Uninterruptible power supplies (UPS)
Photovoltaic

Products

About

Key features

EconoPACK™ 4 incorporates important key features, e.g., rugged mechanical design with ultrasonic-welded and injection-molded screw terminals, PressFIT control pins and screw power terminals for completely solderless connections, leading IGBT4 technologies with increased Tvjop = 150°C, optimized module layout for high power densities, compact rectifier, chopper, sixpack and 3-level single-phase configurations with NTC and it allows more compact inverters compared to using 3 mm x 34 mm / 3 mm x 62 mm modules.

Key applications

The EconoPACK™ 4 can be used in several applications, such as motor control and drives, uninterruptible power supplies, solutions for photovoltaic energy systems and fast EV charging.

Key features

EconoPACK™ 4 incorporates important key features, e.g., rugged mechanical design with ultrasonic-welded and injection-molded screw terminals, PressFIT control pins and screw power terminals for completely solderless connections, leading IGBT4 technologies with increased Tvjop = 150°C, optimized module layout for high power densities, compact rectifier, chopper, sixpack and 3-level single-phase configurations with NTC and it allows more compact inverters compared to using 3 mm x 34 mm / 3 mm x 62 mm modules.

Key applications

The EconoPACK™ 4 can be used in several applications, such as motor control and drives, uninterruptible power supplies, solutions for photovoltaic energy systems and fast EV charging.
