TLE4971-A075T5-U-E0001

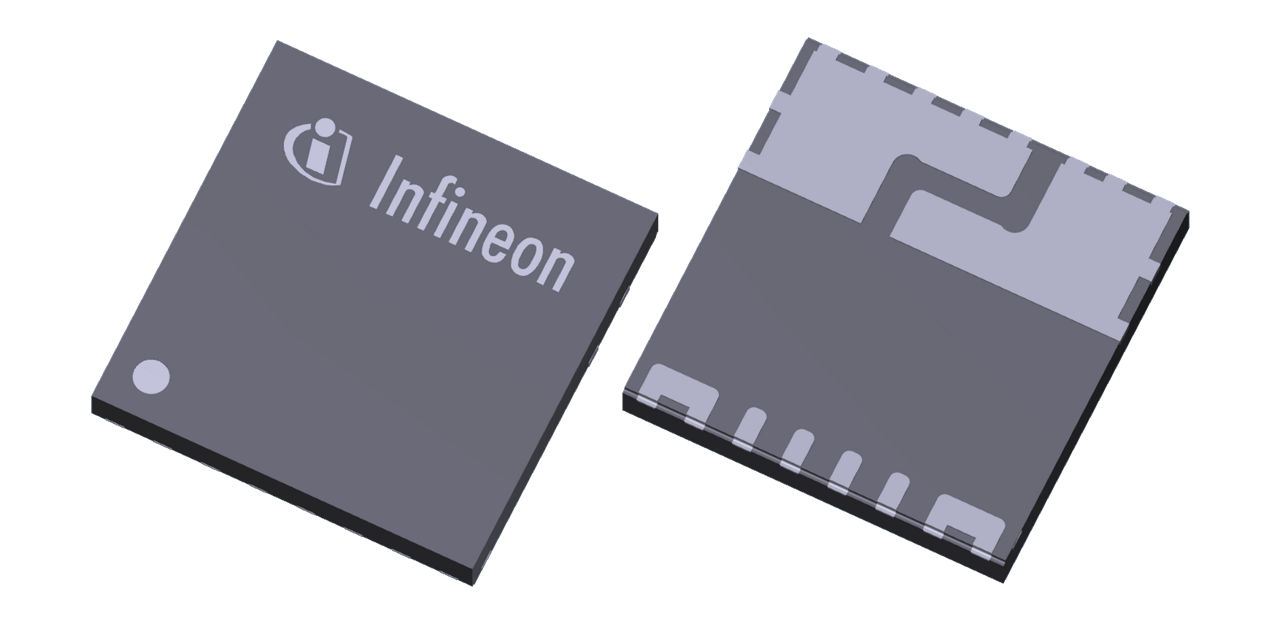

XENSIV™ - TLE4971-A075T5-U-E0001 high precision coreless current sensor with analog interface and optical inspection capable small SMD package, UL certified device
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4971-A075T5-U-E0001
TLE4971-A075T5-U-E0001
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Classification
    AEC-Q100, IEC62368-1, UL 1577
  • Current range
    75 A
  • Diagnosis
    OCD 1, OCD 2, OV, UV, diagnosis mode
  • Interfaces
    Analog
  • Isolation UIORM
    1150 V
  • Currently planned availability until at least
    2038
  • Supply Voltage
    3.1 - 3.5
Recommended
OPN
TLE4971A075T5UE0001XUMA1
Product Status active and preferred
Infineon Package
PG-TISON-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TISON-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Current sensor TLE4971-A075T5-U-E0001 is the latest edition to our automotive qualified product family, a pre-programmed 75 A current sensor. A new package developed to enable quality control only via optical inspection in the assembly line is introduced with this product. The high precision current measurement serves applications with medium to high currents. Due to the coreless magnetic current sensing principle, saturation or hysteresis effects commonly known from sensors using flux concentration techniques are avoided. The analog interface and two fast over-current detection pins with a reaction time of less than 1µs ensures a safe operation of the applications. Infineon's well-established and robust Hall technology enables accurate and highly linear measurement of AC and DC currents, rated as medium to high currents, with a full measurement range up to ±75 A full scale range. All negative effects (saturation, hysteresis) commonly known from sensors using flux concentration techniques are avoided. The digitally assisted analog concept of TLE4971 offers superior stability over temperature and lifetime thanks to the proprietary digital stress and temperature compensation. The differential measurement principle allows great stray field suppression for operation in harsh environments up to 125°C. We offer two derivatives:
  • TLE4971-A075T5-U-E0001 with 75 A measurement range, UL certified device
  • TLE4971-A075T5-E0001 with 75 A measurement range

Features

  • Minimal insertion resistance 220µΩ & inductance <1nH
  • High dynamic range
  • High peak current
  • Market leading thermal performance
  • Fast over current detection (OCD)
  • Small size
  • Optical inspection capable small SMD package

Applications
