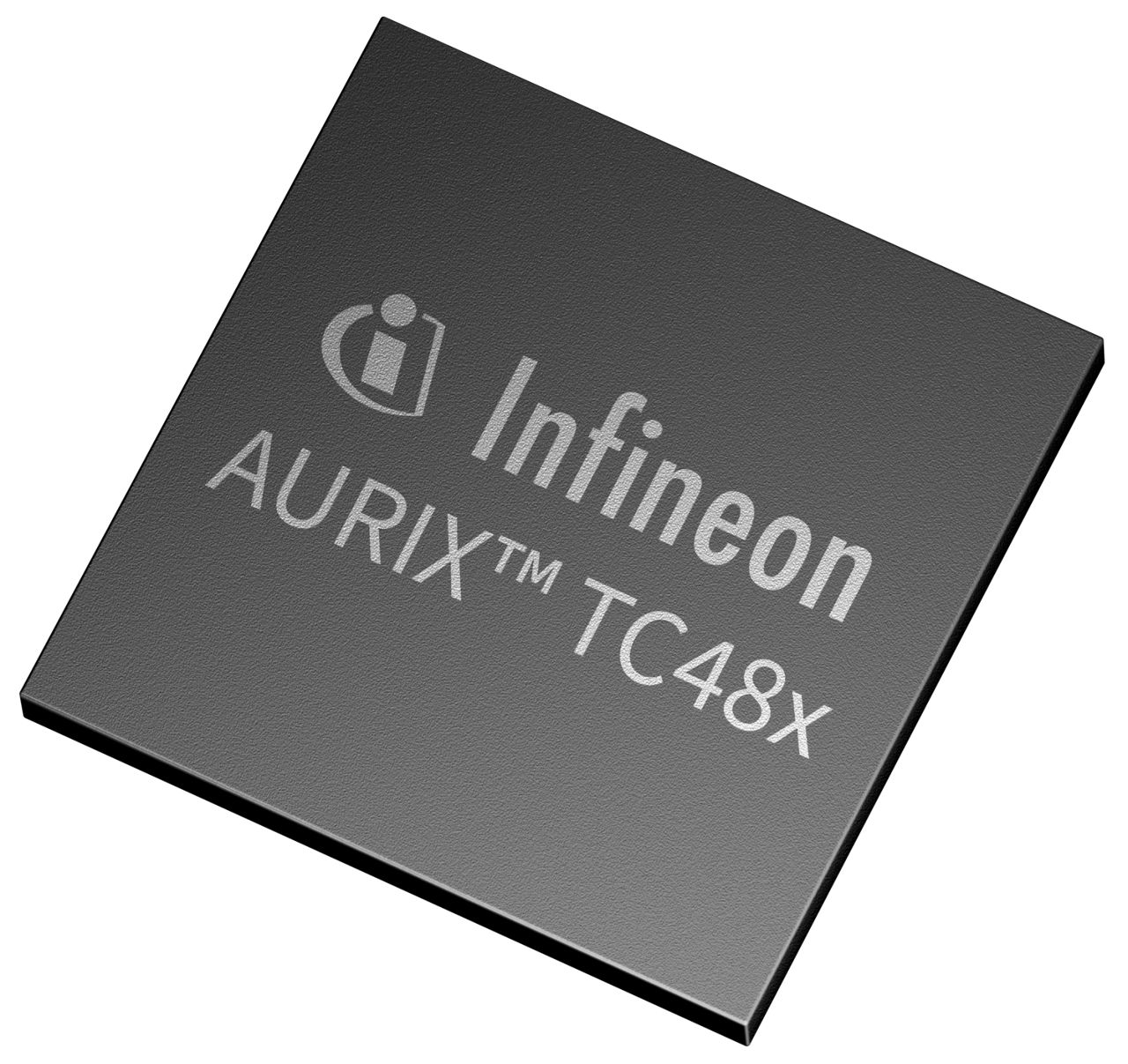

SAK-TC487QQ-16NF400MC AA
NEW
Active and preferred
RoHS Compliant
Lead-free

SAK-TC487QQ-16NF400MC AA

NEW
AURIX™ TC4x—power, safety, security and connectivity in one MCU
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SAK-TC487QQ-16NF400MC AA
SAK-TC487QQ-16NF400MC AA
Data Sheet

Product details

  • # of cores / lockstep cores
    4/4
  • ASIL/SIL support
    ASIL-D
  • CAN Nodes
    20
  • Classification
    ISO26262-compliant
  • DSP Functionality
    Yes
  • eMMC
    No
  • External Bus Interface
    Yes
  • Family
    AURIX™ TC4
  • Floating Point Unit
    Yes
  • Hardware Accelerator
    Yes
  • LIN Controller
    Up to 20 via ASCLIN
  • On-chip Clock Generation
    Yes
  • On-chip Voltage Regulator
    Yes
  • Operating Temperature range
    -40 °C to 125 °C
  • Oscillator Watchdog
    Yes
  • Program Memory
    16 MByte
  • Real Time Clock
    Yes
  • SPI
    8
  • SRAM (incl. Cache) (Without cache)
    3 Bit
  • Type of Memory
    RRAM
Recommended
OPN
TC487QQ16NF400MCAAKXUMA1
Product Status active and preferred
Infineon Package
PG-LFBGA-292
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-LFBGA-292
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
SAK‑TC487QQ‑16NF400MC is part of the AURIX™ TC4x family, purpose‑built for mainstream zone/domain controllers, mainstream gateways, and high‑performance camera monitoring. It combines 4/4 lockstep TriCore processing up to 400 MHz with ASIL‑D–capable safety for dependable real‑time control. A decentralized security architecture with CSRM and Crypto Satellites (CSS) safeguards software and communications, while the Data Routing Engine (DRE) and integrated 2.5‑GbE plus 10/100‑Mb Ethernet move data efficiently with minimal CPU load—helping you consolidate more functions on a single ECU and process faster.

Features

  • 4/4 lockstep TriCore CPUs
  • 16 MB program RRAM
  • 3 MB on‑chip SRAM
  • 400 MHz core frequency
  • 20 CAN-FD, 8x QSPI, 20x ASCLIN
  • Up to 61 analog input pins
  • ASIL‑D capable safety architecture
  • 3× 10/100 Mb LETH modules 1x 2.5Gb Ethernet
  • Data Routing Engine (DRE) with Ethernet bridging
  • FlexRay networking: 1 module / 2 channels
  • External memory support via xSPI (NOR) and on‑chip QSPI
  • PG‑LFBGA‑292 Package

Benefits

  • Large local memories for fast data access
  • Faster bring‑up with integrated debug
  • High-performance CSRM security module
  • CSS crypto offload
  • Software backwards compatible with AURIX™ TC3x MCUs
  • Strong software ecosystem (MC‑ISAR, Drive Core)

Applications
