NAC1080

END OF LIFE
NFC actuation controller
Data Sheet

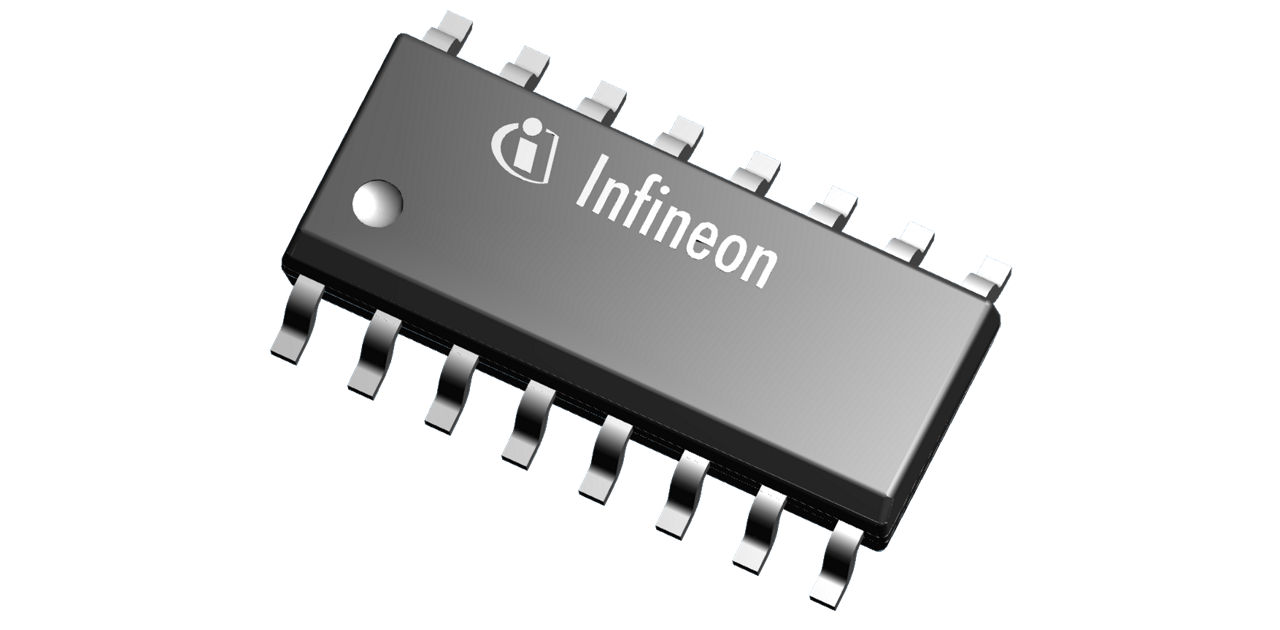

package
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

NAC1080
NAC1080
Data Sheet

Product details

  • ADC
    -
  • DAC (#, Max. Resolution @ Sample Rate)
    -
  • Energy Harvesting
    Yes
  • GPIOs
    7
  • H-Bridge
    Yes
  • NFC
    ISO14443A
  • NVM
    60 kByte
  • Package
    DSO16
  • Processor Type
    32-bit Arm® Cortex®-M0
  • SPI
    Yes
  • UART
    Yes
OPN
NAC1080XTMA2
Product Status discontinued
Infineon Package
PG-DSO-16
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-DSO-16
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
NAC1080 is a NFC actuation IC with integrated H-bridge and energy harvesting modules for smart actuators like passive locks. The low-power ARM Cortex-M0 microcontroller with NFC, sensing, motor driver, and energy harvesting enables cost-effective development with minimal BOM. Flexible IC architecture and smart partitioning maximize software-defined functions. Hardware security features include secure flash, AES accelerator, and random generator.

Features

  • NFC interface compliant to ISO 14443 type A
  • Arm® 32bit Cortex®-M0 microcontroller core
  • Dual-operation mode: passive
  • or battery-mode
  • Memory:
  • 16kB ROM as bootloader
  • 16kB RAM
  • 60kB NVM
  • Digital I/O: SPI, UART
  • Integrated H-bridge supports up to 250mA load current
  • Available in DSO-16 package

Benefits

  • Reduced BOM thanks to a highly integrated single-chip solution
  • Fully flexible software-defined functions
  • Build-in security functions to meet the application requirements

Applications

Smart door lock
