Active and preferred
RoHS Compliant

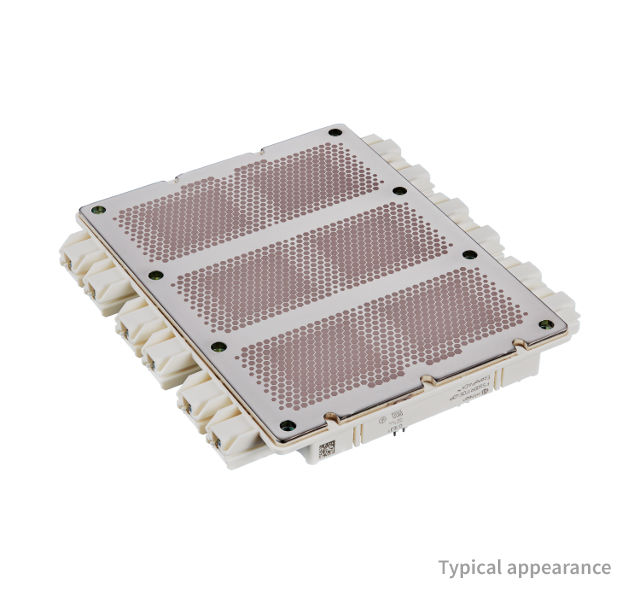

FS500R17OE4DP

1700 V, 500 A sixpack IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS500R17OE4DP
FS500R17OE4DP
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (width)
    150 mm
  • Dimensions (length)
    162 mm
  • Features
    TIM, PressFIT
  • Housing
    EconoPACK™ + D
  • IC(nom) / IF(nom)
    500 A
  • IC max
    500 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1700 V
Recommended
OPN
FS500R17OE4DPBOSA1
Product Status active and preferred
Infineon Package AG-ECONOPP
Package Name N/A
Packing Size 4
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONOPP
Package Name -
Packing Size 4
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPACK™ + D-series 1700 V, 500 A sixpack IGBT module with Trench/Fieldstop IGBT4, enhanced Emitter Controlled diode, NTC, PressFIT Contact Technology and pre-applied Thermal Interface Material .

Features

  • High short circuit capability
  • Self limiting short circuit current
  • Unbeatable robustness
  • Tvj op= 150°C
  • High surge current capability
  • High mechanical robustness
  • Integrated NTC temperature sensor
  • Isolated base plate
  • RoHS compliant

Applications

Wind power
