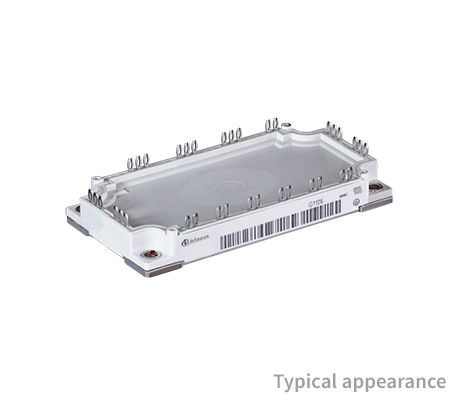

FP150R12KT4_B11

1200 V, 150 A PIM three phase input rectifier IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP150R12KT4_B11
FP150R12KT4_B11
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    122 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    EconoPIM™ 3
  • IC(nom) / IF(nom)
    150 A
  • IC max
    150 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FP150R12KT4B11BPSA1
Product Status active and preferred
Infineon Package AG-ECONO3B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONO3B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPIM™3 1200 V, 150 A three-phase IGBT module with fast Trench/Fieldstop IGBT4, Emitter Controlled Diode, NTC and PressFIT Contact Technology . Also available with pre-applied Thermal Interface Material .

Features

  • Low switching losses
  • Low VCEsat
  • Tvj op = 150°C
  • VCEsatwith positive temp. coeffi.
  • High power & thermal cycling capab.
  • Integrated NTC temperature sensor
  • Copper Base Plate
  • Standard housing

Applications

Motor control
