Active and preferred
RoHS Compliant

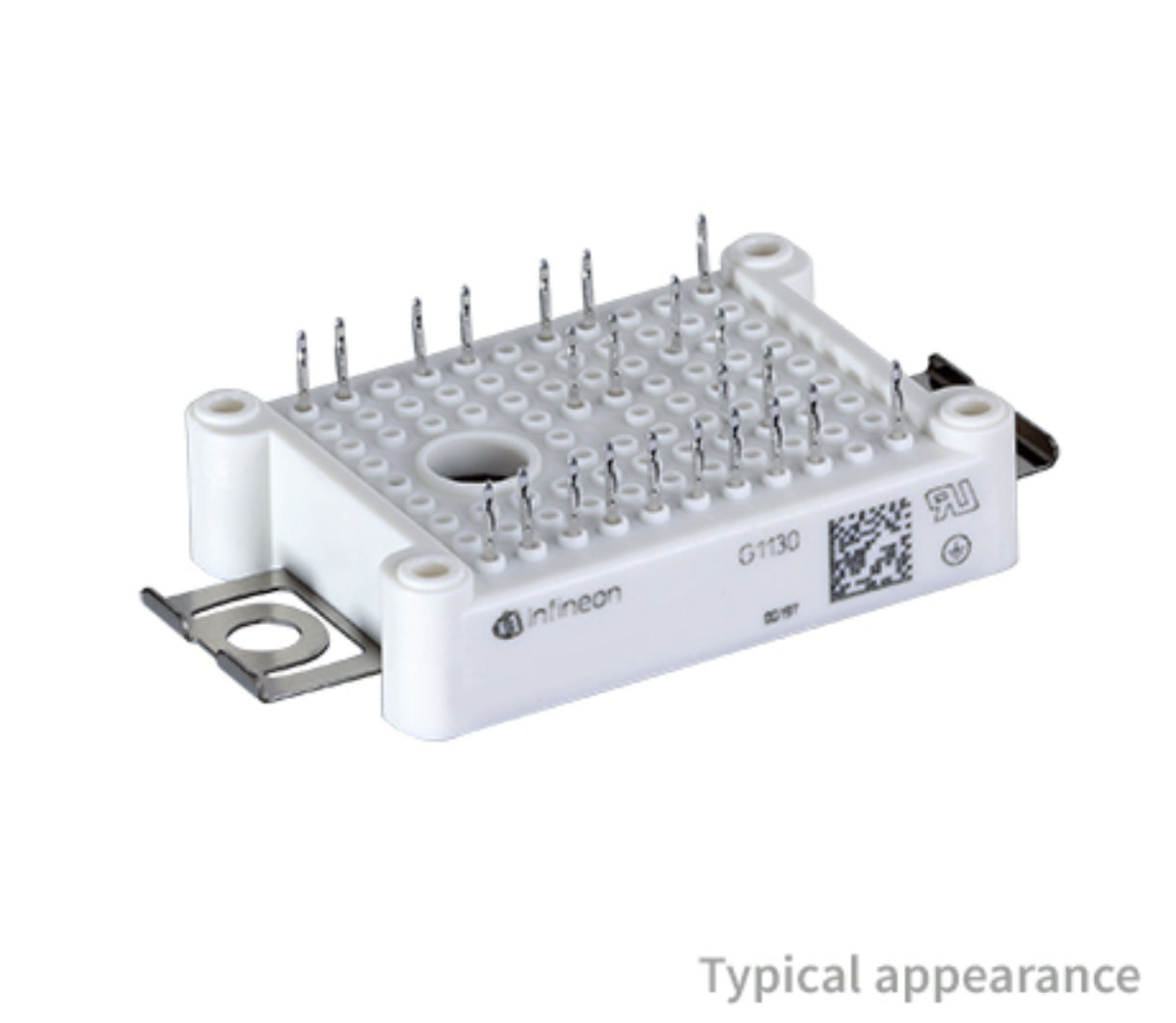

DDB6U75N16W1R_B11

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DDB6U75N16W1R_B11
DDB6U75N16W1R_B11
Data Sheet

Product details

  • Configuration
    Diode Bridges with Brake Chopper and NTC
  • Housing
    EasyBRIDGE 1
  • I(FSM) max
    605 A
  • IRMSM
    75 A
  • Voltage Class max
    1600 V
Recommended
OPN
DDB6U75N16W1RB11BOMA1
Product Status active and preferred
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-EASY1B
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EasyBRIDGE 1 - 1600V Diode Bridge Modules with Brake Chopper and NTC for a more compact converter design.

Features

  • Unbeatable robustness
  • Trench IGBT4
  • Al(2)O(3) Substrate
  • Compact design
  • PressFIT contact technology
  • Rugged mounting
  • Integrated mounting clamps
  • RoHs-compliant

Applications
