Active and preferred
RoHS Compliant

CYPM1211-42FNXIT

Dual Role Port USB-C PD with USB Full-Speed device, including moist detection
Data Sheet

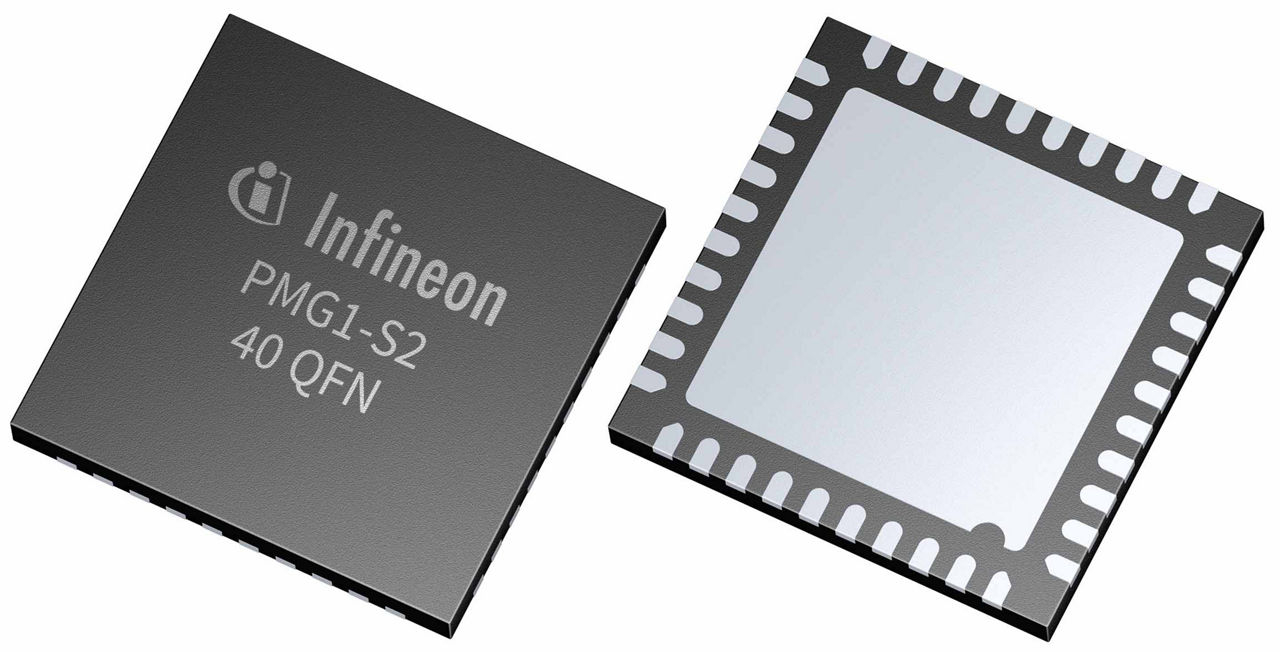

package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPM1211-42FNXIT
CYPM1211-42FNXIT
Data Sheet

Product details

  • Applications
    Personal care solutions, Power tools, Home appliances, Smart speakers
  • Battery series
    1S to 5S
  • Family
    EZ-PD™ PMG1-S2
  • Flash
    128 kByte
  • GPIOs
    20
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    4 V to 21.5 V
  • Package Type
    42-ball CSP
  • Peak Reflow Temp
    260 °C
  • Processor Type
    ARM® Cortex®-M0/M0+
  • Product Category
    High Voltage MCUs
  • Product Description
    MCU with crypto engine
  • Software Tools
    ModusToolbox™
  • SRAM
    8 kByte
  • Temperature grade
    Industrial
  • USB Standard
    USB-PD 3.2
  • VBUS Short Protection
    N
  • VCONN FET
    N
Recommended
OPN
CYPM1211-42FNXIT
Product Status active and preferred
Infineon Package
SG-UFWLB-42
Package Name WLCSP-42 (002-04062)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
SG-UFWLB-42
Package Name WLCSP-42 (002-04062)
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EZ-PDTM PMG1-S2 CYPM1211-42NFXIT is the tape and reel packing option of the PMG1-S2, it supports Dual Role Port (DRP) USB-C PD applications and integrates a USB full-speed device controller.

Features

  • USB-C support and USB PD support
  • Moisture detection
  • Programmable MCU
  • Integrated legacy charging block
  • Apple charge support
  • Integrated hardware crypto block for authentication
  • Integrated 8-bit ADC for voltage monitoring
  • Integrated current sense block
  • Integrated digital blocks configurable
  • USB full-speed device controller
  • NFET gate drivers
  • System-level fault protection
