Active and preferred
RoHS Compliant
Lead-free

AIMBG75R060M1H

The CoolSiC™ Automotive MOSFET 750 V G1 is a highly robust SiC MOSFET for the best system performance and reliability.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AIMBG75R060M1H
AIMBG75R060M1H
ea.
Data Sheet

Product details

  • ID (@25°C) max
    34 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    D2PAK 7-pin
  • Polarity
    N
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    60 mΩ
  • Technology
    CoolSiC™ G1
  • VDS max
    750 V
Recommended
OPN
AIMBG75R060M1HXTMA1
Product Status active and preferred

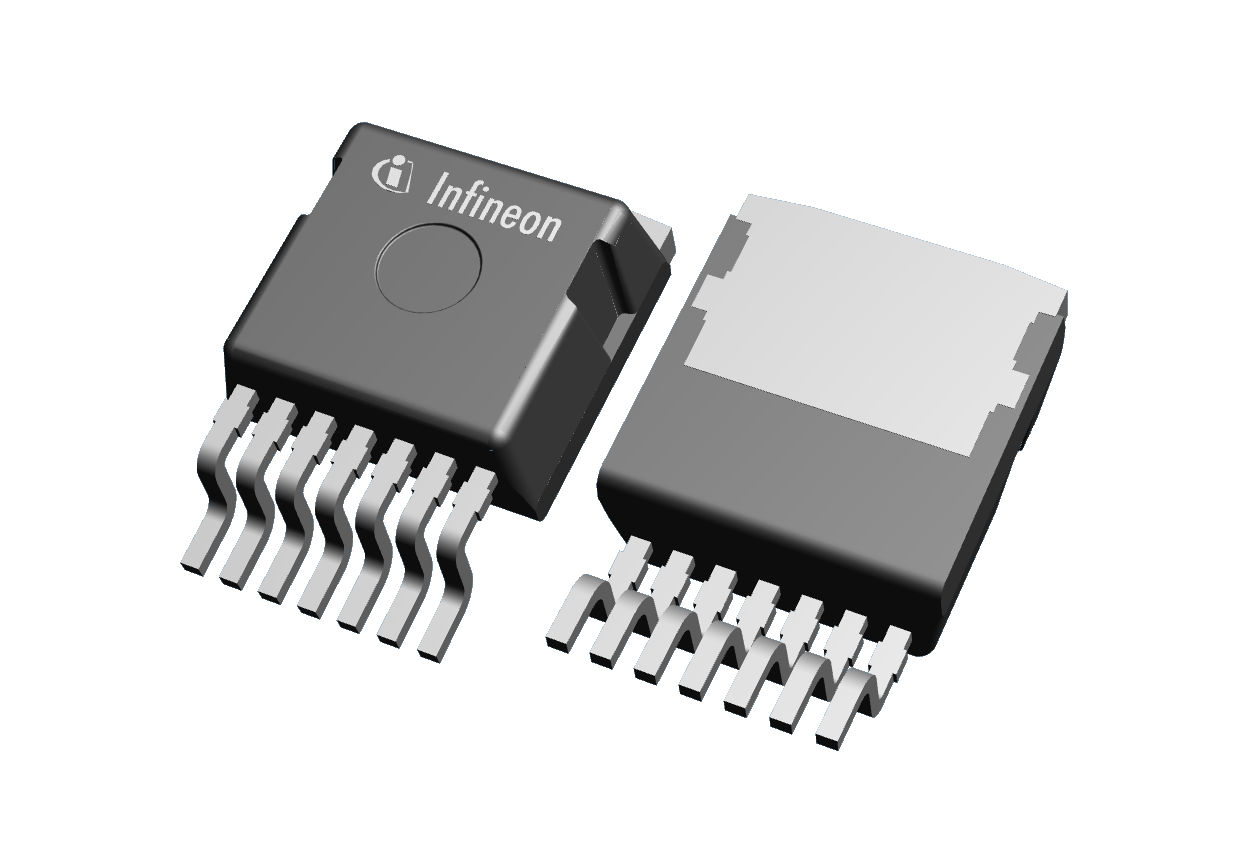

Infineon Package
PG-TO263-7
Package Name D2PAK 7-pin
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO263-7
Package Name D2PAK 7-pin
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The CoolSiC™ Automotive MOSFET 750 V G1 leverages more than 20 years of SiC experience in Infineon.  It offers an edge in performance, reliability and robustness, with gate driving flexibility, enabling the simplified and cost effective system design for top efficiency and power density. The innovative top-side-cooling package further enhance the CoolSiC™ 750 V strengths offering more density, optimized power loop design and less system and assembly cost.

Features

  • Highly robust 750 V technology
  • Best-in-class RDS(on) x Qfr
  • Excellent Ron x Qoss and Ron x QG
  • Low Crss/Ciss together and high Vgsth
  • 100% avalanche tested
  •  .XT interconnection technology for best-in-class thermal performance

Benefits

  • Superior efficiency in hard switching
  • Enables higher switching frequency
  • Higher reliability
  • Withstand bus voltages beyond 500 V
  • Robustness against parasitic turn
  • Unipolar driving
