High-efficiency 65 W USB-C dual-port charger reference design with ATQ transformer
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_65W_2C_GAN_PAG1
REF_65W_2C_GAN_PAG1
User Manual

Product details

  • Configuration
    PAG1S, PAG1P, CCG7DC, BSZ063N04LS6, BSZ0902NS, BSC077N12NS3G, IGLD60R190D1AUMA1, ESD245, ESD253
  • Dimensions
    56*27*33 (mm^3)
  • Family
    USB PD Controller
  • Frequency
    47 Hz to 63 Hz
  • Full Power max
    65
  • Input Type
    AC
  • Interfaces
    Type-C *2
  • Iout max
    3.25 A
  • Output Voltage
    3.3 V to 21 V
  • Qualification
    Consumer
  • Sub Application
    USB-C Chargers
  • Supply Voltage
    100 V to 240 V
  • Target Application
    Power Supplies
  • Topology
    Flyback
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

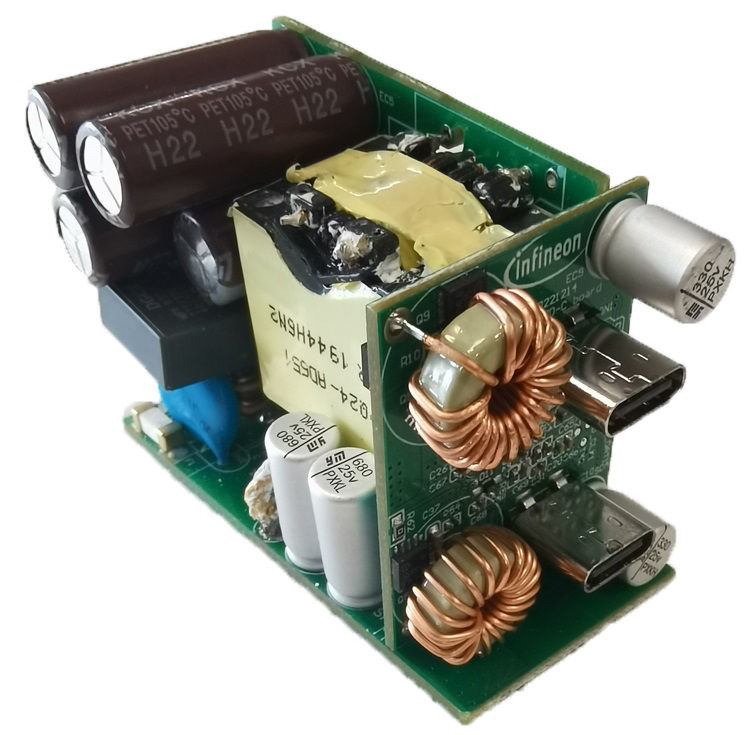

The REF_65W_2C_GAN_PAG1 is a USB-PD multiport charger with a wide input range and 3.3V to 21V output voltage. Each USB-C port delivers 65W, dynamically shared between the two ports based on connected devices. It features EZ-PD™ PAG1P/PAG1S controllers, EZ-PD™ CCG7DC controller, CoolGaN™ 600V GIT HEMTs, OptiMOS™ N-channel MOSFET, OptiMOS™ 6 DCDC switch, and BSZ0902NS OptiMOS™ VBUS switch. Contact us for requests or more information.

Features

  • Dual USB-C PD 65 W GaN Charger
  • Single flyback with dual buck converters
  • Total power = 65 W, port power = 65 W
  • Dynamic loadsharing
  • Power density of 21.34 W/in³
  • Integrated EZ-PD™ PAGx & EZ-PD™ CCG7DC
  • 56 mm x 27 mm x 33 mm board dimension
  • ATQ 24 transformer
  • Compliant to DoE VI
  • CE passing

Benefits

  • High-efficiency dual-port USB-C charger
  • Small form factor
  • Enabling high power density designs
  • Meets the DoE Level VI
  • EN 55032 B standard compliant
  • Support firmware updgrade
