Active and preferred
RoHS Compliant

KIT_PSOC4-HVMS-128K_LITE

ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_PSOC4-HVMS-128K_LITE
KIT_PSOC4-HVMS-128K_LITE
ea.

Product details

Recommended
OPN
KITPSOC4-HVMS-128KLITE
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

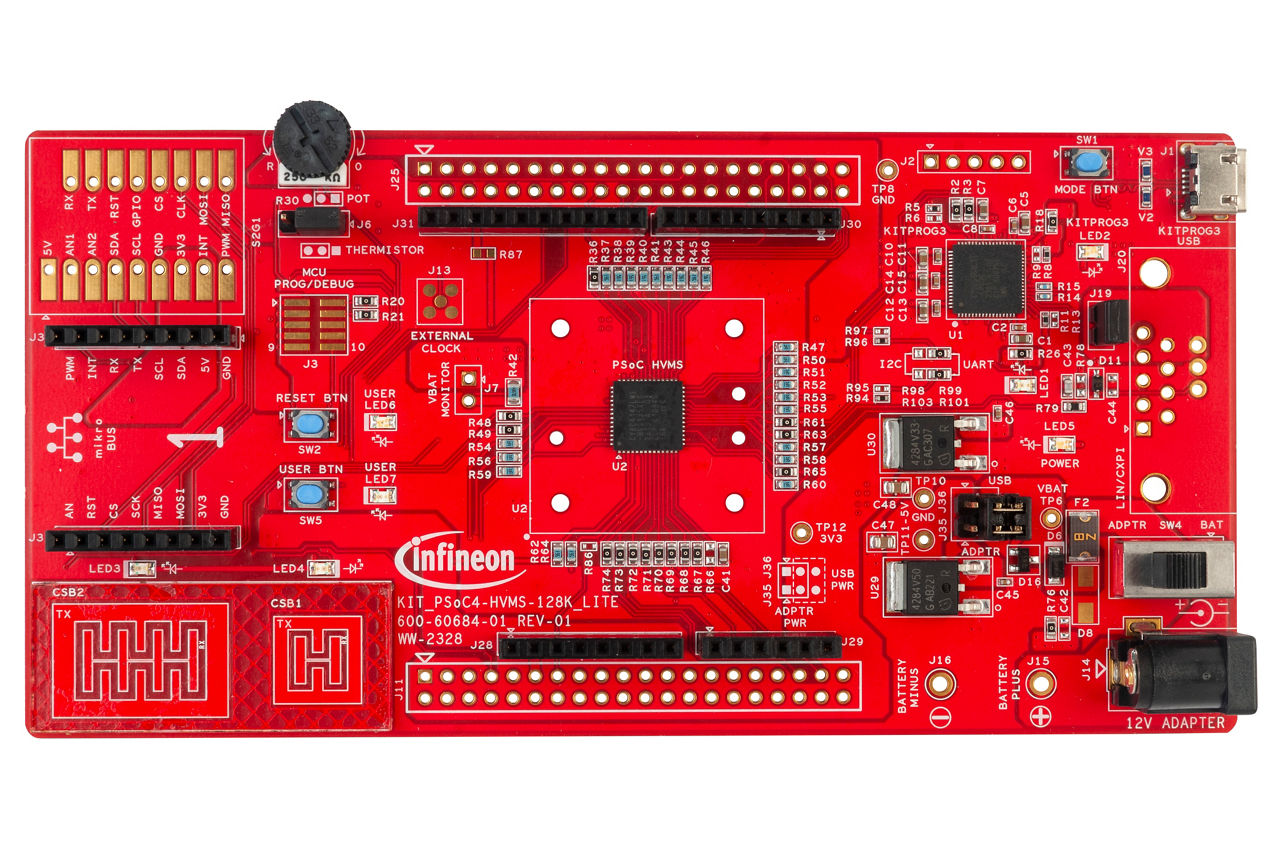

The PSOC™ 4 HVMS Lite Kit is designed to accelerate development with the PSOC™ 4 HVMS series, offering a single-chip solution for advanced automotive smart edge-sensing applications. This powerful kit integrates a multi-sense converter, programmable analog blocks, a high-voltage (12 V) LDO, LIN PHY, and an ARM™ Cortex CPU, making it ideal for Human-Machine Interface (HMI) and sensing applications.

Features

  • : Integrates a 42 V-tolerant high-voltage LDO and LIN/CXPI PHY for robust performance.
  • : Developed in accordance with ISO26262 for ASIL-B as a Safety Element out of Context (SEooC).
  • : Features a multi-sense converter with 5th-generation CAPSENSE™ technology for superior capacitive sensing.
  • : Includes free software tools via ModusToolbox™, such as a peripheral driver library, CAPSENSE™ middleware library, and ready-to-use code examples for rapid prototyping.
  • : ASPICE-qualified and ISO 26262-compliant software (AutoPDL, SafeTlib, and CAPSENSE™ MW) ensures faster time-to-market.

Benefits

  • Simplified Design: Directly connects to a 12 V battery supply and LIN/CXPI network, enabling compact and footprint-optimized designs.

  • Enhanced Safety: Integrated functional safety features (up to ASIL-B) support the development of safe automotive sensors.

  • Superior Performance: Delivers robust capacitive sensing with best-in-class signal-to-noise ratio (SNR), enabling sophisticated automotive HMI designs.

Applications

Bill of Material

Documents

Documents

Design resources

Partner solutions
