FLEXZCUREFKIT

Reference Kit, jointly developed with Infineon and Vector
Product Brief

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FLEXZCUREFKIT
FLEXZCUREFKIT
Product Brief

Product details

  • Applications
    Zone Control Unit, Power distribution Unit, Gateway, Load actuation

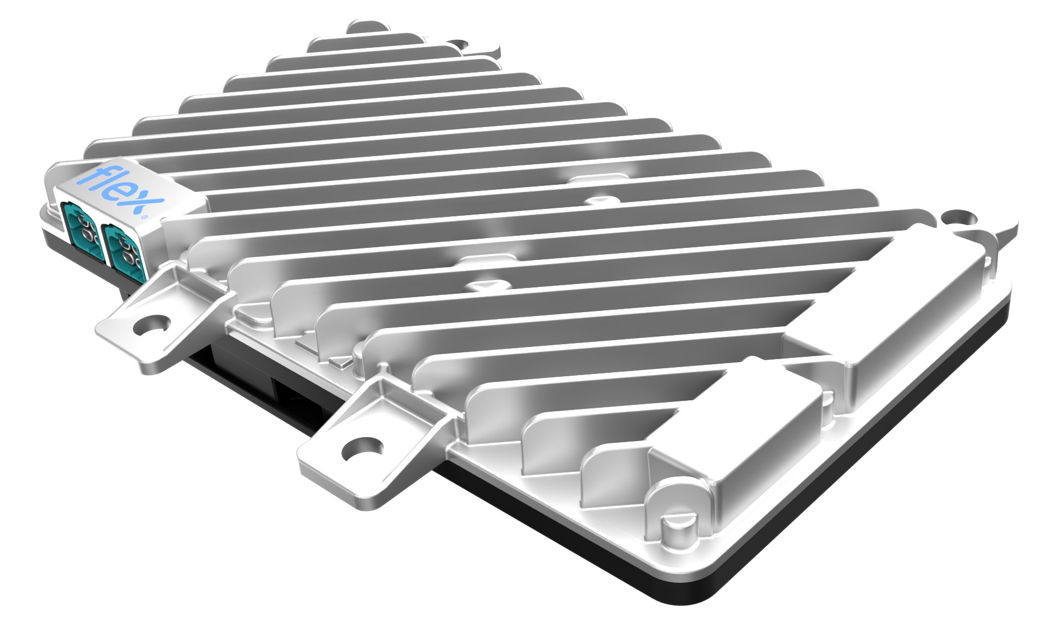

  • Board Name
    FlexZoneX™
  • Board Type
    Reference Board
  • Family
    AURIX™, OPTIREG, BRIGHTLANE™, SEMPER™NOR Flash, MOTIX™, PROFET™, SPOC™
  • Input Type
    12 V DC
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Infineon's Zone Control Reference Kit is a game-changing solution developed with Flex and Vector. It features dual AURIX TC4D9 MCUs, OPTIREG PMICs, 54 power channels, 9 actuation channels, and 6 Ethernet channels, enabling rapid exploration of zonal E/E architectures and accelerating time-to-market with cost-optimized ZCU designs. The kit's components and standardized interfaces support efficient development and cost optimization in various applications.

Features

  • Super set to cover all ZCU functions
  • Dual AURIX TC4D9 MCU architecture
  • Powered by OPTIREG PMICs
  • 54 smart power distribution channels
  • 9 load actuation channels (MOTIX)
  • 6 Ethernet channels via BRIGHTLANE PHYs
  • TSN and Ethernet-to-x data routing
  • Cyber security and A/B swap support
  • Protection: I2t, CLS, OCP, OVP, RPP
  • 20x CAN-FD and 16x LIN interfaces
  • FlexRay, PSI5 and other bus options
  • Standardized interfaces for easy reuse

Benefits

  • Reduced time-to-market
  • Rapid functional exploration platform
  • Tailoring through modular concept
  • Validated, building block platform
  • Super set to cover all ZCU functions
  • Best-in-class automotive components
  • Clear path to industrialization
  • Basis for cost-optimized adaptations
  • Partnership with industry leaders
  • Flexible configuration for variants

Applications
