48V BSG INVERTER

Power stage of 48V BSG inverter Demonstrator
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

48V BSG INVERTER
48V BSG INVERTER
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    140mm*140mm
  • Family
    MOSFET
  • Frequency
    5 kHz to 20 kHz
  • Input Type
    DC
  • Mounting
    SMD
  • Output Current
    0 A to 500 A
  • Output Voltage
    0 V to 60 V
  • Pout
    0 kW to 12 kW
  • Qualification
    Automotive
  • Sub Application
    48V BSG/ISG
  • Supply Voltage
    24 V to 60 V
  • Target Application
    Automotive
  • Topology
    3-Phase Motor
Recommended
OPN
48VBSGINVERTERTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

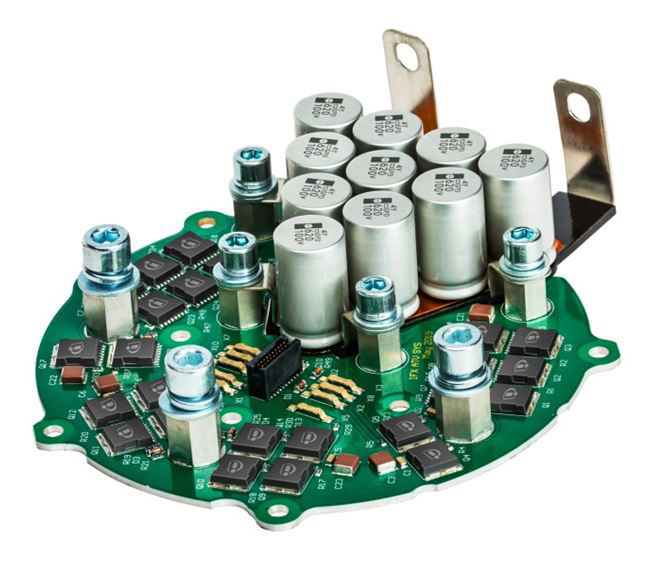

The power stage was developed to support customers during their first steps in designing 48V inverter for Belt-driven Starter Generator (BSG) application.
The document provides a detailed description of the main components and their functionality.

Features

  • 24pcs IAUS240N08S5N019 TOLG MOSFET with Al-IMS board
  • 12kW 500Arms (700A peak) Output
  • 105°C liquid cooling capability
  • Three phases output
  • Diameter 140mm, Height 35mm
  • Design for integration with Motor

Applications

Bill of Material
