TLI5590 SATELLITE

XENSIV™ - TLI5590 SATELLITE adaption board preassembled with linear TMR sensor TLI5590-A6W
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI5590 SATELLITE
TLI5590 SATELLITE
User Manual

Product details

  • Applications
    Human machine interface, Medical, Multi-purpose camera, Industrial sensors
  • Family
    Linear sensors
  • Product Name
    TLI5590-A6W
Recommended
OPN
TLI5590SATELLITETOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The ADC frontend board needs to be connected to the TLX559X Evaluation POSIF board. In the evaluation kit the boards already arrive assembled in this configuration. Connect the TLI5590 Sensor Board via the FPC cable to the ADC frontend board. Now the evaluation board is ready to be plugged in to a micro-USB cable (not supplied in the package) to a PC and ready to be used with the TLI5590 evaluation software. Hardware includes:

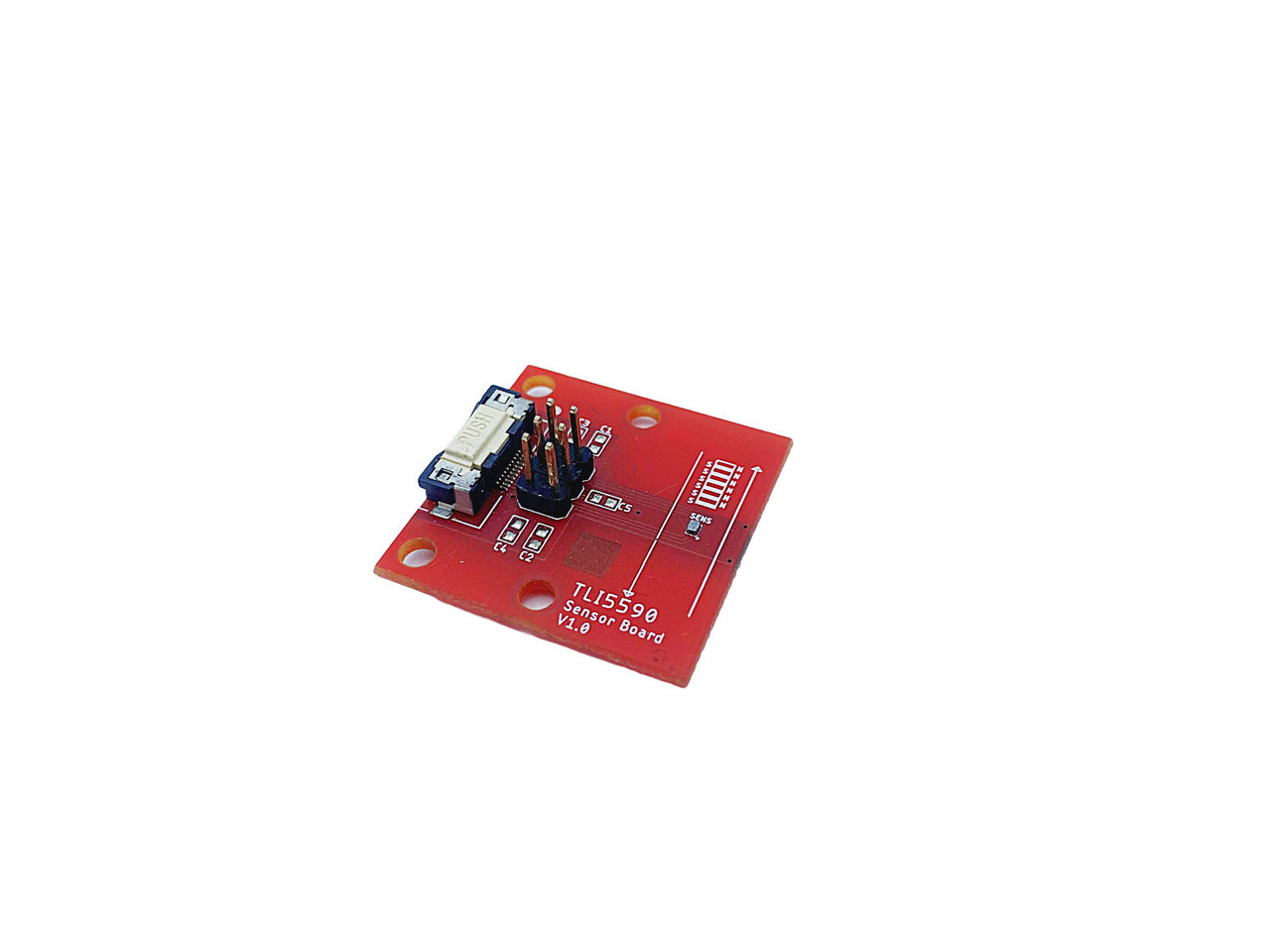

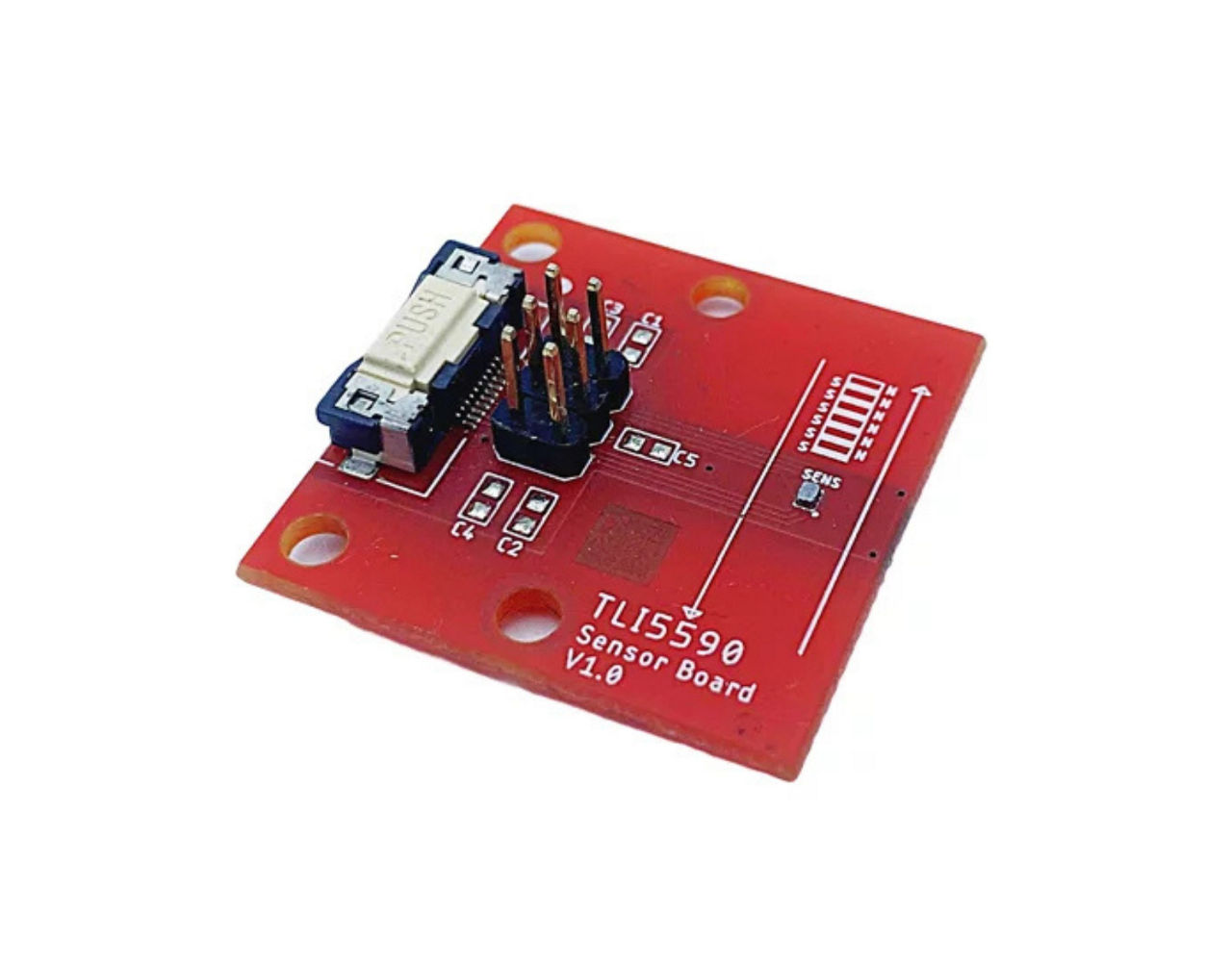

  • TLI5590 satellite board, assembled with linear TMR sensor TLI5590-A6W & FPC connector
  • Multipole magnet, 0.5 mm pitch.
The TLI5590 SATELLITE is compatible with the TLI5590 EVAL KIT demo board.

Features

  • TLI5590-A6W included
  • Multipole magnet included
  • Graphical user interace provided
  • Compatible with TLI5590 EVAL KIT

Benefits

  • Use with: TLI5590 EVAL KIT
  • Graphical user interface @IDC

Applications
