EVAL_ACF_65W_FULLGAN

EVAL_ACF_65W_FullGaN evaluation board - High efficiency 65 W USB-PD charger with Infineon CoolGaN™ technology
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_ACF_65W_FULLGAN
EVAL_ACF_65W_FULLGAN
Application Notes

Product details

  • Frequency max
    350 kHz
  • Input Type
    AC
  • Input Voltage
    120 V
  • Iout
    0 A to 3.25 A
  • Output Voltage
    20 V
  • Pout max
    65 W
  • Target Application
    SMPS, Charger, Power Supplies
  • Topology
    Active Clamp, Flyback
OPN
EVALACF65WFULLGANTOBO1
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

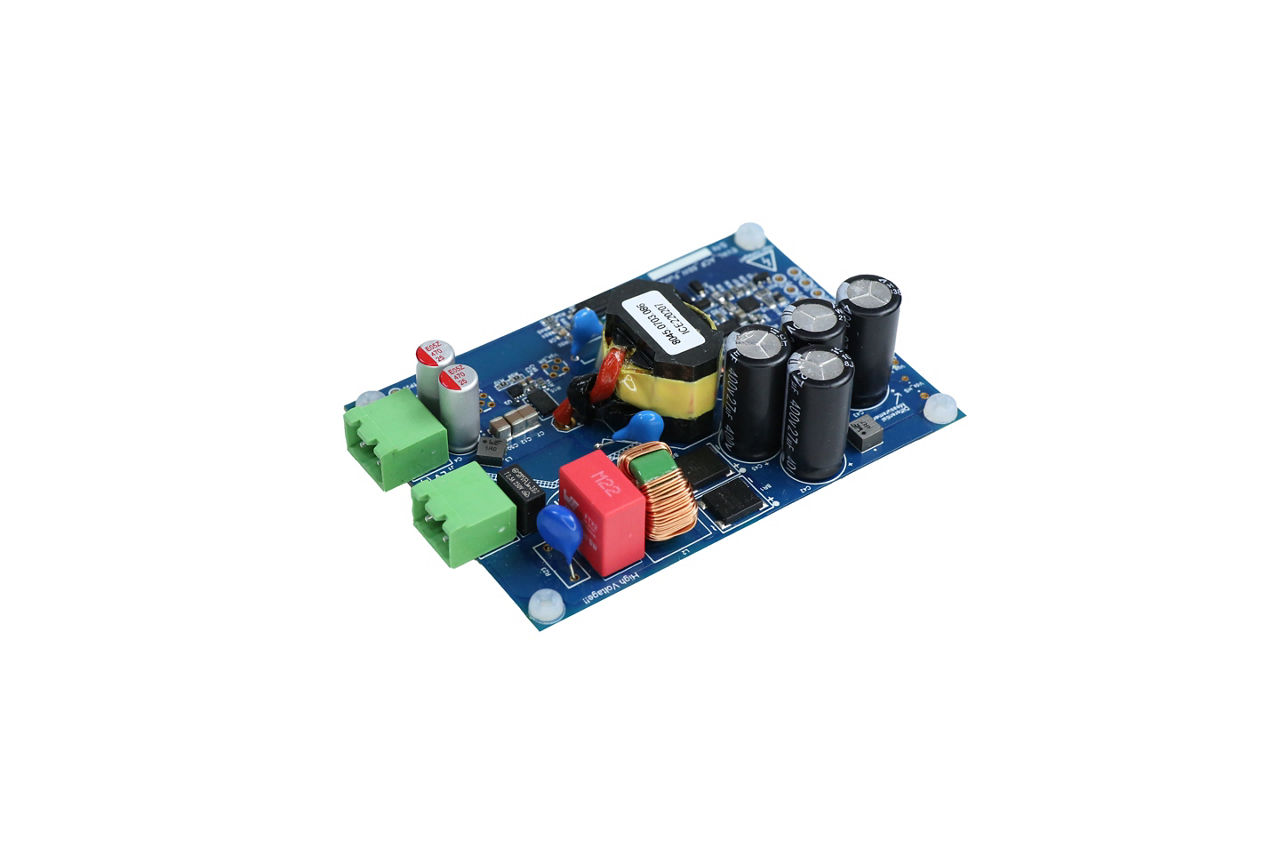

The EVAL_ACF_65W_FullGaN is a 65 W USB-PD type C charger evaluation board that uses Infineon CoolGaN™ IPS (Integrated Power Stage) half-bridge configuration as well a CoolGaN™ SG HEMT 100 V ICQ800NLS as synchronous rectifier. The board demonstrates a Full-GaN charger with high efficiency and includes additional measurement points and connectors for easy waveform creation.

Features

  • Full GaN solution
  • Peak efficiency of 94%
  • Low switching losses
  • Low FOM Qg x RDS(on)

Benefits

  • Increase in system power densitycy
  • Reduced charge time
  • Good thermal performance and longer lifetime
  • Enables high switching frequency

Applications
