- ASIC
- Battery management ICs
- Clocks and timing solutions
- ESD and surge protection devices
- Automotive Ethernet
- Evaluation Boards
- High reliability
- Isolation
- Memories
- Microcontroller
- Power
- RF
- Security and smart card solutions
- Sensor technology
- Small signal transistors and diodes
- Transceivers
- Universal Serial Bus (USB)
- Wireless connectivity
- Search Tools
- Technology
- Packages
- Product Information
- Ordering
- Overview
- Automotive Ethernet PHY for in-vehicle networking
- Automotive Ethernet Switches for in-vehicle networking
- Overview
- Embedded flash IP solutions
- Flash+RAM MCP solutions
- F-RAM (Ferroelectric RAM)
- NOR flash
- nvSRAM (non-volatile SRAM)
- PSRAM – Pseudostatic RAM
- Radiation hardened and high-reliability memories
- SRAM (static RAM)
- Wafer and die memory solutions
- Overview
- AURIX™ TriCore™ MCUs
- PSOC™ MCUs
- TRAVEO™ T2G MCUs
- XMC™ MCUs
- Legacy MCUs
- MOTIX™ motor control SoCs/SIPs
- Overview
- AC-DC power conversion
- Automotive conventional powertrain ICs
- Class D audio amplifier ICs
- Contactless power and sensing ICs
- DC-DC converters
- Diodes and thyristors (Si/SiC)
- eFuses
- Gallium nitride (GaN)
- Gate Driver ICs
- IGBTs – Insulated gate bipolar transistors
- Intelligent power modules (IPM)
- JFETs
- LED driver ICs
- Motor drivers
- MOSFETs
- Power modules
- Power supply ICs
- Protection and monitoring ICs
- Silicon carbide (SiC)
- Smart power switches
- Solid state relays and isolators
- Wireless charging ICs
- Overview
- Antenna cross switches
- Antenna tuners
- Bias and control
- Coupler
- Driver amplifiers
- Rad hard microwave and RF
- Low noise amplifiers (LNAs)
- RF diode
- RF switches
- RF transistors
- Wireless control receiver
- Overview
- Calypso® products
- CIPURSE™ products
- Contactless memories
- OPTIGA™ embedded security solutions
- SECORA™ security solutions
- Security controllers
- Smart card modules
- Smart solutions for government ID
- Overview
- ToF 3D image sensors
- Current sensors
- Gas sensors
- Inductive position sensors
- MEMS microphones
- Pressure sensors
- Radar sensors
- Magnetic position sensors
- Magnetic speed sensors
- Capacitive sensors
- Temperature sensors
- Battery sensors
- Digital X-ray
- Computed tomography
- Sensor interface ASICs
- Overview
- Bipolar transistors
- Diodes
- Small signal/small power MOSFET
- Overview
- Automotive transceivers
- Control communication
- Powerline communications
- Overview
- USB 2.0 peripheral controllers
- USB 3.2 peripheral controllers
- USB hub controllers
- USB PD high-voltage microcontrollers
- USB-C AC-DC and DC-DC charging solutions
- USB-C charging port controllers
- USB-C Power Delivery controllers
- Overview
- AIROC™ Automotive wireless
- AIROC™ Bluetooth® and multiprotocol
- AIROC™ connected MCU
- AIROC™ Wi-Fi + Bluetooth® combos
- AIROC™ Ultra-Wide Band Solutions
- Overview
- Commercial off-the-shelf (COTs) memory portfolio
- Defense memory portfolio
- High-reliability power conversion and management
- Overview
- Rad hard microwave and RF
- Radiation hardened power
- Space memory portfolio
- Overview
- Parallel NOR flash
- SEMPER™ NOR flash family
- SEMPER™ X1 LPDDR flash
- Serial NOR flash
- Overview
-
32-bit TriCore™ AURIX™ – TC2x
- Overview
- AURIX™ family – TC21xL
- AURIX™ family – TC21xSC (wireless charging)
- AURIX™ family – TC22xL
- AURIX™ family – TC23xL
- AURIX™ family – TC23xLA (ADAS)
- AURIX™ family – TC23xLX
- AURIX™ family – TC264DA (ADAS)
- AURIX™ family – TC26xD
- AURIX™ family – TC27xT
- AURIX™ family – TC297TA (ADAS)
- AURIX™ family – TC29xT
- AURIX™ family – TC29xTT (ADAS)
- AURIX™ family – TC29xTX
- AURIX™ TC2x emulation devices
-
32-bit TriCore™ AURIX™ – TC3x
- Overview
- AURIX™ family - TC32xLP
- AURIX™ family – TC33xDA
- AURIX™ family - TC33xLP
- AURIX™ family – TC35xTA (ADAS)
- AURIX™ family – TC36xDP
- AURIX™ family – TC37xTP
- AURIX™ family – TC37xTX
- AURIX™ family – TC38xQP
- AURIX™ family – TC39xXA (ADAS)
- TC39xXX/XP
- AURIX™ family – TC3Ex
- AURIX™ TC37xTE (emulation devices)
- AURIX™ TC39xXE (emulation devices)
- 32-bit TriCore™ AURIX™ – TC4x
- Overview
- PSOC™ 4 Arm® Cortex®-M0/M0+
- PSOC™ 4 HV Arm® Cortex®-M0+
- PSOC™ 5 LP Arm® Cortex®-M3
- PSOC™ 6 Arm® Cortex®-M4/M0+
- PSOC™ Multitouch Touchscreen Controller
- PSOC™ Control C3 Arm® Cortex®-M33
- PSOC™ Automotive 4: Arm® Cortex®-M0/M0+
- PSOC™ Edge Arm® Cortex® M55/M33
- PSOC™ Control C1 Arm® Cortex®-M0
- Overview
- 32-bit TRAVEO™ T2G Arm® Cortex® for body
- 32-bit TRAVEO™ T2G Arm® Cortex® for cluster
- Overview
- 32-bit XMC1000 industrial microcontroller Arm® Cortex®-M0
- 32-bit XMC4000 industrial microcontroller Arm® Cortex®-M4
- XMC5000 Industrial Microcontroller Arm® Cortex®-M4F
- 32-bit XMC7000 Industrial Microcontroller Arm® Cortex®-M7
- Overview
- Legacy 32-bit MCU
- Legacy 8-bit/16-bit microcontroller
- Other legacy MCUs
- Overview
- AC-DC integrated power stage - CoolSET™
- AC-DC PWM and PFC controller
- Overview
- Bridge rectifiers & AC switches
- CoolSiC™ Schottky diodes
- Diode bare dies
- Silicon diodes
- Thyristor / Diode Power Modules
- Thyristor soft starter modules
- Thyristor/diode discs
- Overview
- GaN bidirectional switches
- GaN smart
- GaN transistors (GaN HEMTs)
- GaN with integrated driver
- GaN bare dies
- Overview
- Automotive gate driver ICs
- Gate Driver ICs for GaN HEMTs
- Gate Driver ICs for SiC MOSFETs
- Half-Bridge Gate Driver ICs
- High-Side Gate Driver ICs
- Isolated Gate Driver ICs
- Level-Shift Gate Driver ICs
- Low-Side Gate Driver ICs
- Three-Phase Gate Driver ICs
- Transformer Driver ICs
- Overview
- AC-DC LED driver ICs
- Ballast IC
- DC-DC LED driver IC
- LED dimming interface IC
- Linear LED driver IC
- LITIX™ - Automotive LED Driver IC
- NFC wireless configuration IC with PWM output
- VCSEL driver
- Overview
- BLDC motor drivers
- BDC motor drivers
- Stepper & servo motor drivers
- Motor drivers with MCU
- Bridge drivers with MOSFETs
- Gate Driver ICs
- Overview
- Automotive MOSFET
- Dual MOSFETs
- MOSFET (Si & SiC) Modules
- N-channel depletion mode MOSFET
- N-channel MOSFETs
- P-channel MOSFETs
-
Silicon carbide CoolSiC™ MOSFETs
- Overview
- Silicon Carbide MOSFET modules
- Silicon carbide MOSFET discretes
- Silicon carbide MOSFETs bare dies
- 400 V / 440 V Silicon Carbide MOSFETs
- 650 V Silicon Carbide MOSFETs
- 750 V Silicon Carbide MOSFETs
- 1200 V Silicon Carbide MOSFETs
- 2000 V Silicon Carbide MOSFETs
- 2300 V Silicon Carbide MOSFETs
- 3300 V Silicon Carbide MOSFETs
- 1700 V Silicon Carbide MOSFETs
- Small signal/small power MOSFET
- Overview
- IGBT modules
- MOSFET (Si & SiC) Modules
- Intelligent power modules (IPM)
- Diodes and thyristors (Si/SiC)
- Automotive IGBT and CoolSiC™ MOSFET modules
- High density power modules
- Overview
- Automotive transceivers
- Linear voltage regulators for automotive applications
- OPTIREG™ PMIC
- OPTIREG™ switcher
- OPTIREG™ System Basis Chips (SBC)
- Overview
- High-side switches
- Low-side switches
- Multichannel SPI Switches & Controller
- Automotive eFuses
- Overview
- Radar sensors for automotive
- Radar sensors for IoT
- Overview
- EZ-USB™ CX3 MIPI CSI2 to USB 3.0 camera controller
- EZ-USB™ FX10 & FX5N USB 10Gbps peripheral controller
- EZ-USB™ FX20 USB 20 Gbps peripheral controller
- EZ-USB™ FX3 USB 5 Gbps peripheral controller
- EZ-USB™ FX3S USB 5 Gbps peripheral controller with storage interface
- EZ-USB™ FX5 USB 5 Gbps peripheral controller
- EZ-USB™ SD3 USB 5 Gbps storage controller
- EZ-USB™ SX3 FIFO to USB 5 Gbps peripheral controller
- Overview
- EZ-PD™ CCG3 USB type-C port controller PD
- EZ-PD™ CCG3PA USB-C and PD
- EZ-PD™ CCG3PA-NFET USB-C PD controller
- EZ-PD™ CCG7x consumer USB-C Power Delivery & DC-DC controller
- EZ-PD™ PAG1: power adapter generation 1
- EZ-PD™ PAG2: Power Adapter Generation 2
- EZ-PD™ PAG2-PD USB-C PD Controller
- Overview
- EZ-PD™ ACG1F one-port USB-C controller
- EZ-PD™ CCG2 USB Type-C port controller
- EZ-PD™ CCG3PA Automotive USB-C and Power Delivery controller
- EZ-PD™ CCG4 two-port USB-C and PD
- EZ-PD™ CCG5 dual-port and CCG5C single-port USB-C PD controllers
- EZ-PD™ CCG6 one-port USB-C & PD controller
- EZ-PD™ CCG6_CFP and EZ-PD™ CCG8_CFP Dual-Single-Port USB-C PD
- EZ-PD™ CCG6DF dual-port and CCG6SF single-port USB-C PD controllers
- EZ-PD™ CCG7D Automotive dual-port USB-C PD + DC-DC controller
- EZ-PD™ CCG7S Automotive single-port USB-C PD solution with a DC-DC controller + FETs
- EZ-PD™ CCG8 dual-single-port USB-C PD
- EZ-PD™ CMG1 USB-C EMCA controller
- EZ-PD™ CMG2 USB-C EMCA controller with EPR
Browse by core architecture
Browse by key technologies
- LATEST IN
- Aerospace and defense
- AI and data center
- Automotive
- Communications
- Consumer electronics
- Health and lifestyle
- Industrial
- Security solutions
- Smart home and building
- Solutions
- Overview
- Defense applications
- Space applications
- Overview
- Data center power solutions
- Edge computing
- Machine Learning Edge AI
- Overview
- ADAS & autonomous driving
- Automotive body electronics
- Automotive LED lighting systems
- Automotive zonal architecture
- Chassis control & safety
- Electric vehicle drivetrain system
- EV thermal management system
- In-vehicle infotainment & HMI
- Light electric vehicle solutions
- Overview
- Satellite communications
- Telecommunications infrastructure
- Overview
- Power adapters and chargers
- Complete system solutions for smart TVs
- Mobile device and smartphone solutions
- Semiconductor solutions for home entertainment applications
- Smart conference systems
- Drones
- AR and smart glasses
- Photovoltaic
- Consumer Wearables
- Home appliances
- Overview
- Power adapters and chargers
- Asset Tracking
- Battery formation and testing
- Electric forklifts
- Battery energy storage (BESS)
- EV charging
- High voltage solid-state power distribution
- Industrial automation
- Industrial motor drives and controls
- Industrial robots
- LED lighting system design
- Light electric vehicle solutions
- Power transmission and distribution
- Traction
- Uninterruptible power supplies (UPS)
- Digital health
- Robotics
- Wind power
- Hydrogen electrolysis
- Photovoltaic
- Industrial & Medical SMPS
- Power tools
- Overview
- Device authentication and brand protection
- Embedded security for the Internet of Things (IoT)
- eSIM applications
- Government identification
- Mobile security
- Payment solutions
- Access control and ticketing
- Overview
- Domestic robots
- Heating ventilation and air conditioning (HVAC)
- Home and building automation
- PC accessories
- Semiconductor solutions for home entertainment applications
- Overview
- Battery management systems (BMS)
- Connectivity
- Human Machine Interface
- Machine Learning Edge AI
- Motor control
- Power conversion
- Security
- Sensor solutions
- System diagnostics and analytics
- Overview
- FPGAs in datacenter applications
- Power system reliability modeling
-
Server rack power management
- Overview
- Server power supply units (PSU)
- Server battery backup units (BBU)
- Intermediate Bus Converter (IBC)
- Ampere CPU voltage regulator Ics
- Intel CPU voltage regulator Ics
- AMD CPU voltage regulator Ics
- AI accelerator cards
- SmartNIC cards
- Network switches for AI data centers and server racks
- Server power path protection
- Data center power distribution
- Overview
- Automotive animated LED lighting system
- Automotive LED front single light functions
- Automotive LED rear single light functions
- Full LED headlight system - multi-channel LED driver
- LED drivers (electric two- & three-wheelers)
- LED pixel light controller - supply & communication
- Static interior ambient LED light
- Overview
- Active suspension control
- Automotive braking solutions
- Automotive steering solutions
- Chassis domain control
- Overview
-
Automotive BMS
- Overview
- Automotive battery cell monitoring & balancing
- Automotive battery control unit (BCU)
- Automotive battery isolated communication
- Automotive battery management system (BMS) - 12 V to 24 V
- Automotive battery management system (BMS) - 48 V
- Automotive battery management system (BMS) - high-voltage
- Automotive battery pack monitoring
- Automotive battery passport & event logging
- Automotive battery protection & disconnection
- Automotive current sensing & coulomb counting
- BMS (electric two- & three-wheelers)
- EV charging
- FCEV powertrain system
- Auxiliary inverter
- Auxiliary inverter - high-voltage (commercial vehicles)
- EV traction inverter
- Traction inverter (electric commercial vehicles)
- Traction inverter (electric two- & three-wheelers)
- DC-DC converter high-voltage
- DC-DC converter high-voltage (commercial vehicles)
- On-board charging (electric commercial vehicles)
- On-board charging (OBC)
- On-board charging (OBC) solutions for electric two- and three-wheelers
- Overview
- AC-DC power conversion for telecommunications infrastructure
- DC-DC power conversion for telecommunications infrastructure
- FPGA in wired and wireless telecommunications applications
- Power system reliability modeling
- RF front end components for telecommunications infrastructure
- Memory solutions for cellular base stations
- Security solutions for cellular base stations
- Overview
- Audio amplifier solutions
- Complete system solutions for smart TVs
- Distribution audio amplifier unit solutions
- Home theater installation speaker system solutions
- Party speaker solutions
- PoE audio amplifier unit solutions
- Portable speaker solutions
- Powered active speaker systems
- Remote control
- Smart speaker designs
- Soundbar solutions
- Overview
- Data center power solutions
- Digital input/output (I/O) modules
- DIN rail power supply solutions
- Home and building automation
- Industrial HMI Monitors and Panels
- Industrial motor drives and controls
- Industrial PC
- Industrial robots
- Machine vision
- Mobile robots (AGV, AMR)
- Programmable logic controller (PLC)
- Solid-state circuit breaker (SSCB)
- Uninterruptible power supplies (UPS)
- Overview
- Durable healthcare equipment
- Disposable healthcare equipment
- Healthcare wearables
- Overview
- Automotive BMS
- Industrial and consumer BMS
- Overview
- AC-DC power conversion
- DC-DC power conversion
- Overview
- Power supply health monitoring
- LATEST IN
- Digital documentation
- Boards & Kits
- Finder & selection tools
- Platforms
- Services
- Simulation & Modeling
- Software
- Tools
- Partners
- Infineon for Makers
- University Alliance Program
- Overview
- Bipolar Discs Finder
- Bipolar Module Finder
- Connected Secure Systems Finder
- Diode Rectifier Finder
- ESD Protection Finder
- Evaluation Board Finder
- Gate Driver Finder
- IGBT Discrete Finder
- IGBT Module Finder
- IPM Finder
- Microcontroller Finder
- MOSFET Finder
- PMIC Finder
- Product Finder
- PSOC™ and FMx MCU Board & Kit Finder
- Radar Finder
- Reference Design Finder
- Simulation Model Finder
- Smart Power Switch Finder
- Transceiver Finder
- Voltage Regulator Finder
- Wireless Connectivity Board & Kit Finder
- Overview
- AIROC™ software & tools
- AURIX™ software & tools
- DRIVECORE™ for automotive software development
- iMOTION™ software & tools
- Infineon Smart Power Switches & Gate Driver Tool Suite
- MOTIX™ software & tools
- OPTIGA™ software & tools
- PSOC™ software & tools
- TRAVEO™ software & tools
- XENSIV™ software & tools
- XMC™ software & tools
- Overview
- CoolGaN™ Simulation Tool (PLECS)
- HiRel Fit Rate Tool
- Infineon Designer
- Interactive product sheet
- IPOSIM Online Power Simulation Platform
- InfineonSpice Offline Simulation Tool
- OPTIREG™ automotive power supply ICs Simulation Tool (PLECS)
- Power MOSFET Simulation Models
- PowerEsim Switch Mode Power Supply Design Tool
- Solution Finder
- XENSIV™ Magnetic Sensor Simulation Tool
- Overview
- AURIX™ certifications
- AURIX™ development tools
-
AURIX™ Embedded Software
- Overview
- AURIX™ Applications software
- AURIX™ Artificial Intelligence
- AURIX™ Gateway
- AURIX™ iLLD Drivers
- Infineon safety
- AURIX™ Security
- AURIX™ TC3xx Motor Control Application Kit
- AURIX™ TC4x SW application architecture
- Infineon AUTOSAR
- Communication and Connectivity
- Middleware
- Non AUTOSAR OS/RTOS
- OTA
- AURIX™ Microcontroller Kits
- Overview
- TRAVEO™ Development Tools
- TRAVEO™ Embedded Software
- Overview
- XENSIV™ Development Tools
- XENSIV™ Embedded Software
- XENSIV™ evaluation boards
- Overview
- CAPSENSE™ Controllers Code Examples
- Memories for Embedded Systems Code Examples
- PSOC™ 1 Code Examples for PSOC™ Designer
- PSOC™ 3 Code Examples for PSOC™ Creator
- PSOC™ 3/4/5 Code Examples
- PSOC™ 4 Code Examples for PSOC™ Creator
- PSOC™ 6 Code Examples for PSOC™ Creator
- PSOC™ 63 Code Examples
- USB Controllers Code Examples
- Overview
- DEEPCRAFT™ AI Hub
- DEEPCRAFT™ Audio Enhancement
- DEEPCRAFT™ Model Converter
-
DEEPCRAFT™ Ready Models
- Overview
- DEEPCRAFT™ Ready Model for Baby Cry Detection
- DEEPCRAFT™ Ready Model for Cough Detection
- DEEPCRAFT™ Ready Model for Direction of Arrival (Sound)
- DEEPCRAFT™ Ready Model for Factory Alarm Detection
- DEEPCRAFT™ Ready Model for Fall Detection
- DEEPCRAFT™ Ready Model for Gesture Classification
- DEEPCRAFT™ Ready Model for Siren Detection
- DEEPCRAFT™ Ready Model for Snore Detection
- DEEPCRAFT™ Studio
- DEEPCRAFT™ Voice Assistant
- Overview
- AIROC™ Wi-Fi & Bluetooth EZ-Serial Module Firmware Platform
- AIROC™ Wi-Fi & Bluetooth Linux and Android Drivers
- emWin Graphics Library and GUI for PSOC™
- Infineon Complex Device Driver for Battery Management Systems
- Memory Solutions Hub
- PSOC™ 6 Peripheral Driver Library (PDL) for PSOC™ Creator
- USB Controllers EZ-USB™ GX3 Software and Drivers
- Overview
- CAPSENSE™ Controllers Configuration Tools EZ-Click
- DC-DC Integrated POL Voltage Regulators Configuration Tool – PowIRCenter
- EZ-USB™ SX3 Configuration Utility
- FM+ Configuration Tools
- FMx Configuration Tools
- Tranceiver IC Configuration Tool
- USB EZ-PD™ Configuration Utility
- USB EZ-PD™ Dock Configuration Utility
- USB EZ-USB™ HX3C Blaster Plus Configuration Utility
- USB UART Config Utility
- XENSIV™ Tire Pressure Sensor Programming
- Overview
- EZ-PD™ CCGx Dock Software Development Kit
-
FMx Softune IDE
- Overview
- RealOS™ Real-Time Operating System
- Softune IDE Language tools
- Softune Workbench
- Tool Lineup for F2MC-16 Family SOFTUNE V3
- Tool Lineup for F2MC-8FX Family SOFTUNE V3
- Tool Lineup for FR Family SOFTUNE V6
- Virtual Starter Kit
- Windows 10 operation of released SOFTUNE product
- Windows 7 operation of released SOFTUNE product
- Windows 8 operation of released SOFTUNE product
- ModusToolbox™ Software
- PSOC™ Creator Software
- Radar Development Kit
- RUST
- USB Controllers SDK
- Wireless Connectivity Bluetooth Mesh Helper Applications
- XMC™ DAVE™ Software
- Overview
- AIROC™ Bluetooth® Connect App Archive
- Cypress™ Programmer Archive
- EZ-PD™ CCGx Power Software Development Kit Archive
- ModusToolbox™ Software Archive
- PSOC™ Creator Archive
- PSOC™ Designer Archive
- PSOC™ Programmer Archive
- USB EZ-PD™ Configuration Utility Archives
- USB EZ-PD™ Host SDK Archives
- USB EZ-USB™ FX3 Archive
- USB EZ-USB™ HX3PD Configuration Utility Archive
- WICED™ Smart SDK Archive
- WICED™ Studio Archive
- Overview
- Infineon Developer Center Launcher
- Infineon Register Viewer
- Pin and Code Wizard
- Timing Solutions
- Wireless Connectivity
- LATEST IN
- Support
- Training
- Developer Community
- News
Business & Financial Press
Jul 02, 2026
Business & Financial Press
Jul 01, 2026
Business & Financial Press
Jul 01, 2026
Business & Financial Press
Jun 26, 2026
- Company
- Our stories
- Events
- Press
- Investor
- Careers
- Quality
- Latest news
Business & Financial Press
Jul 02, 2026
Business & Financial Press
Jul 01, 2026
Business & Financial Press
Jul 01, 2026
Business & Financial Press
Jun 26, 2026

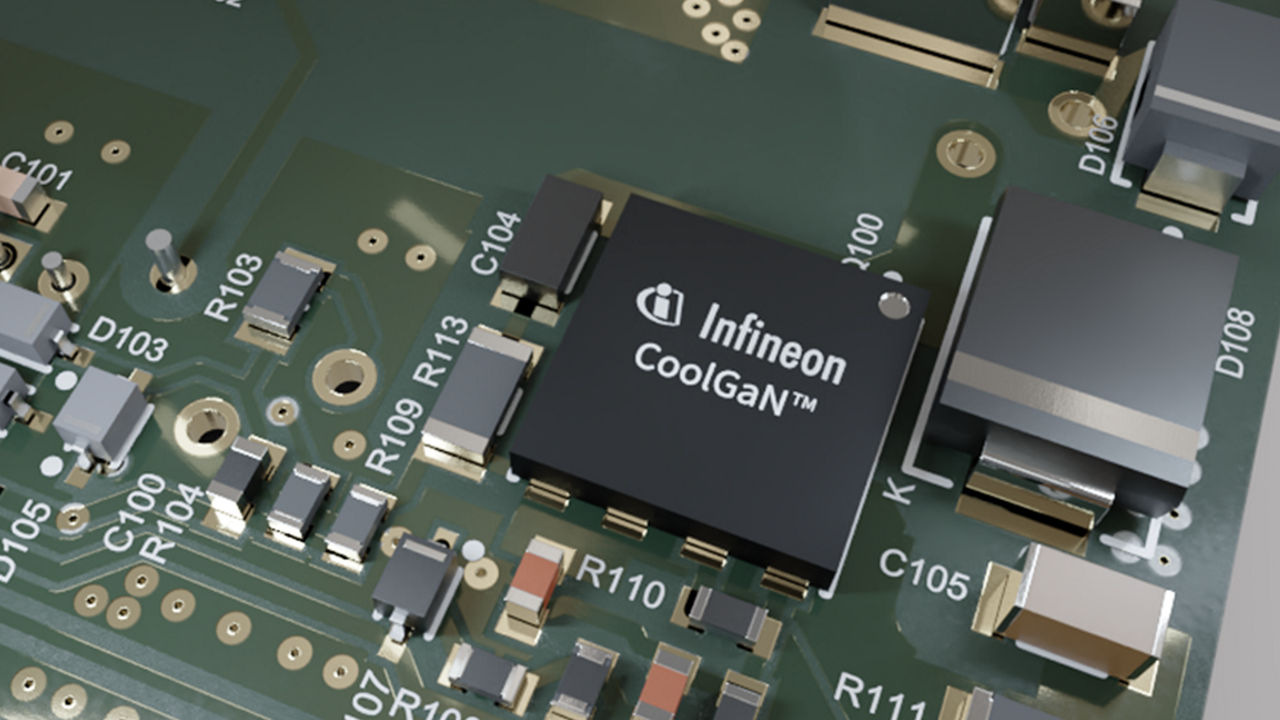

How to GaN
Master GaN design with expert insights, practical guidelines, and real-world application examples
While GaN system design shares many similarities with other transistor implementations, there are some key differences that must be considered, particularly when operating at high switching frequencies. In these cases, it is essential to follow best-practice layout techniques and take into account other critical considerations to ensure optimal performance and reliability.
Share in WeChat
Scan the QR code with your WeChat App to share this page.
Learn how integrated GaN and discrete GaN technologies differ in architecture, features, and performance, and how to choose the right device for your design goals.
Learn about the common mistakes to avoid when designing with GaN power transistors, including inadequate drive, insufficient current support, and poor gate drive circuit design.
Learn the fundamentals of designing with GaN (Gallium Nitride) devices, including understanding device limits, gate drive circuits, layout considerations, commutation loops, and thermal management.
Learn about the benefits of using Gallium Nitride (GaN) technology in power supplies, including improved efficiency, reduced size, and increased performance.
Learn how to accurately measure GaN gate signals, including techniques for measuring low-side and high-side gate signals, and how to select the right probes for the job.
Unlock the full potential of GaN technology and delve into the design of high-performance power electronics with a focus on optimized circuit layouts.
Get insights into CoolGaN™’s advanced qualification processes, JEDEC alignment, and the rigorous validation steps Infineon applies to ensure long-term performance.
Gain a detailed overview of modeling and simulation techniques for GaN power systems and understand the importance of simulation models in the hardware development process.

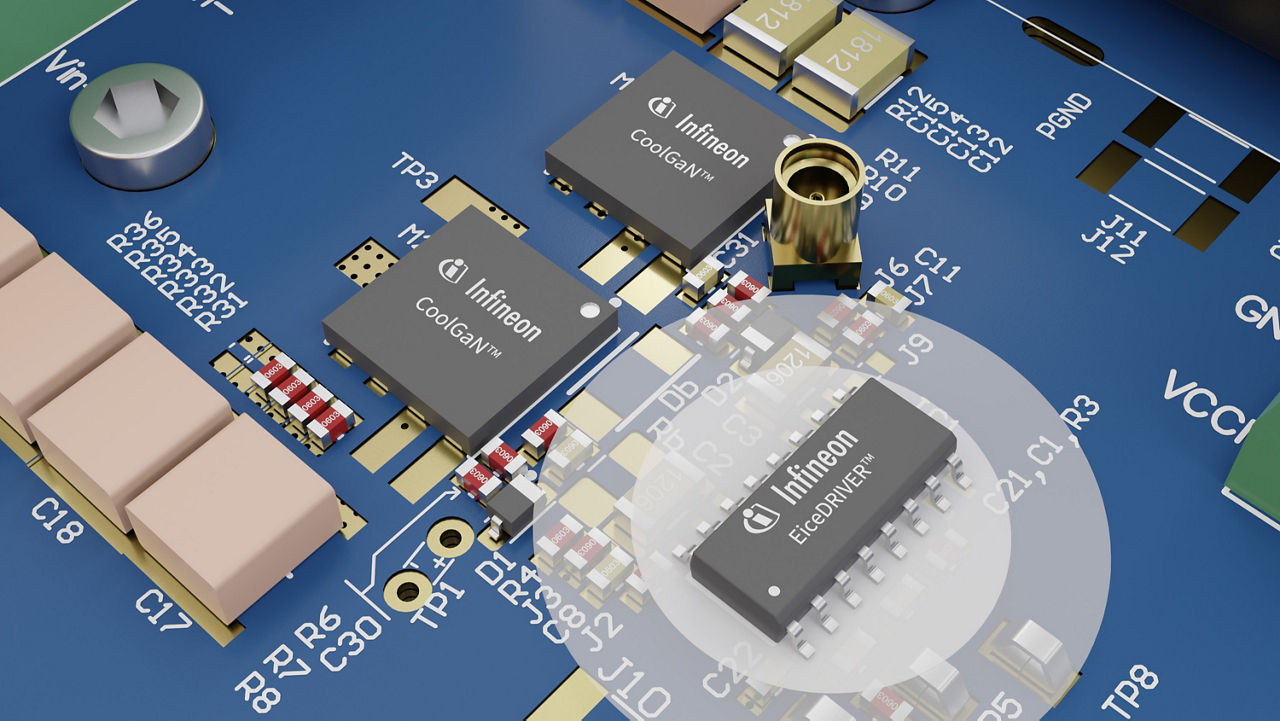

Gain a deep understanding of gate drive circuit design, layout steps, and thermal management guidelines for GaN power devices.
Watch now
Learn how to elevate your SMPS designs to a new level using GaN power devices; and explore the reference designs that Infineon offers to facilitate the rapid development of new devices.
Watch now
Learn how CoolGaN™ is shaping the future of low-voltage motor drives and battery-powered applications by delivering higher efficiency, power density, and reliability.
Watch now
Gain insights into how GaN-based motor inverters improve switching performance, enhance system reliability, and achieve superior energy ratings, while eliminating the need for heatsinks.
Watch now
Learn how CoolGaN™ is shaping the future of efficient and reliable solar and energy storage solutions.
Watch now
Learn about the full system solutions Infineon has to offer for USB-C adapters and chargers, covering CoolGaN™ power semiconductors , controllers, and much more.
Watch this engaging webinar session on how CoolGaN™ Automotive Transistor 100 V G1 is shaping the future of automotive power electronics.
Gain a practical understanding of the fundamentals of BDS, including its dynamic operations and four distinct modes of functionality that open new possibilities for system design.
Learn about Infineon‘s CoolGaN™ quality and reliability, and topics such as technology qualification, product validation, and packaging reliability.
Watch now
Learn the fundamentals about CoolGaN™ Bidirectional Switch 40 V-120 V G3, its implementation types for various voltage classes and applications, and the benefits of using a bidirectional switch in your designs.
Learn the fundamentals of GaN technology, the clear differences between E-mode and D-mode GaN, and what are the benefits of using E-mode GaN in your design.
The program is structured across 4 progressive learning levels, guiding participants from GaN fundamentals through intermediate and advanced system knowledge to expert-level application understanding.
What is GaN technology and how does it improve power electronics performance?
Gallium Nitride (GaN) is a wide-bandgap semiconductor technology that enables faster switching, higher efficiency, and greater power density compared to traditional silicon-based solutions.
In power electronics, GaN transistors significantly improve performance by:
- Reducing switching losses, enabling higher efficiency across applications
- Supporting higher switching frequencies, allowing smaller passive components
- Increasing power density, leading to more compact system designs
- Improving thermal performance, reducing cooling requirements
- All contributing to lower systems costs
These advantages make GaN especially suitable for applications such as USB-C chargers, AI and enterprise data centers, renewable energy systems, robots and robotics, and automotive power systems, where efficiency and size are critical.
👉 In practice: GaN helps engineers design smaller, lighter, more energy-efficient, and lower cost power systems—supporting Infineon’s goal of driving decarbonization through advanced semiconductor solutions.
How do I design with GaN transistors in power applications?
Designing with GaN requires a system-level approach that fully leverages its fast-switching capabilities.
Key steps to get started include:
- Select the right GaN device
Choose voltage class and package based on your application
- Optimize the gate drive strategy
Evaluate needs for performance, package, design flexibility and custom tuning when selecting discrete discretes versus integrated power stage.
- Focus on PCB layout
Minimize parasitic inductance with short, tight current loops and optimized routing.
- Adapt switching frequency strategy
Take advantage of GaN’s high-frequency capability to reduce magnetics size and improve efficiency.
- Validate thermals and EMI performance
Use simulation and measurement to ensure compliance and reliability.
👉 Infineon CoolGaN™ solutions are designed to simplify this process with optimized device characteristics, application notes, and reference designs.
What are the design trade-offs between discrete GaN transistors and integrated GaN power stages?
Discrete GaN solutions offer maximum design flexibility and custom tuning for varying voltage and current levels, while integrated power stage GaN (GaN ICs) combines the FETs and gate drivers on a single chip.
Discrete Pros and Cons
+ Ultimate Design Flexibility: Engineers can hand-pick the gate driver and precisely tune the drive strength to minimize overshoot, tailoring the circuit exactly to their specific application.
+ Higher Power Capability: Discrete packaging allows for better handling of higher currents and voltages, making it the preferred choice for heavy-duty or industrial-scale power systems.
+ Paralleling Options: For high-power circuits that require paralleling multiple transistors to handle high currents, discrete devices provide a straightforward design path.
+ Asymmetric Optimization: In topologies like buck converters, the high-side and low-side switches have different optimization needs. Discretes allow you to use a smaller, lower-charge FET on the high side to minimize switching losses, and a larger, lower-resistance FET on the low side to minimize conduction losses.
– Nuanced PCB Layout: Designers must route connections between the discrete GaN FET and the external gate driver, which introduces parasitic inductance and tighter control of gate ringing or false turn-ons.
– Higher Component Count: The need for separate drivers, resistors, and bypass capacitors increases the bill of materials (BOM) and consumes more board space.
GaN IC Pros and Cons
+ Near-Zero Gate Loop Inductance: Because the gate driver and the GaN FET are bonded inside the same package, the gate loop inductance is practically eliminated. This delivers clean, ringing-free switching waveforms.
+ Built-In System Protection: Integrated stages feature built-in under-voltage lockout (UVLO), over-temperature shutdown, and ultra-fast blanking/over-current protection for fast reaction and protection.
+ Increased Power Density: By eliminating the need for external driver components and complex PCB traces, integrated GaN reduces the overall footprint.
+ Simplified Design: Built-in features like dead-time control, level shifting, and thermal protection streamline the development process and accelerate time-to-market.
– Limited Power Range: It is challenging to incorporate large GaN dies into IC packages for extremely high power requirements, meaning discrete solutions are still needed for the higher power tiers.
– Vendor Lock-In: Integrated GaN pinouts aren’t standardized. If a specific integrated IC goes out of stock, drop-in replacements do not exist, forcing an expensive PCB redesign.
– Thermal Compounding: Placing the heat-generating gate driver and the highly efficient but hot GaN FET in the exact same miniature package concentrates the heat flux. Dissipating heat from a single small IC can be tougher than spreading discretes across a board.
– Fixed Performance Profiles: You cannot tune the gate drive speed or alter the internal dead-time. You are locked into the vendor’s pre-engineered compromises leaving less room for gate-drive tuning optimization.
👉 Infineon CoolGaN™ solutions are available in discrete, CoolGaN™ Transistor families and as integrated power stages, called CoolGaN™ Drive.
What common challenges occur in GaN design and how can I avoid them?
Switching from Si MOSFETs to e-mode GaN HEMTs is not a drop‑in replacement. Many first-time designs fail not because GaN is difficult, but because engineers apply MOSFET intuition where it no longer holds.
Here are the most common mistakes, grouped by area:
Topic | First-timer mistakes | Why it’s bad for GaN | Solutions |
Layout | Reusing MOSFET PCB layout with long gate loops and/or power loops | GaN switches 5–10x faster (high dv/dt, di/dt). Even a few nH of stray inductance can cause ringing, overshoot, false triggering | Tight power loop (FET + decoupling), gate loop kept ultra short and clean. |
Not minimizing parasitic inductance | Kelvin source connection (or equivalent) | ||
Gate drive | Using a “generic” MOSFET driver with low CMTI. | Drivers with low CMTI can misfire, latch up, or momentarily turn on both devices, causing false switching or shoot‑through. | Select a gate driver with high CMTI (≥150 V/ns) and sufficient peak current capability (e.g., ≥2 A). |
Not managing Miller/false turn‑on. | Fast dV/dt and shared source inductance can turn the opposite device on. | Use Kelvin source pins, tight gate loops, proper turn‑off impedance, optional Miller clamp or small Cgs. | |
Starting with big gate resistors | Slows edges, increases loss, and worsens deadtime conduction | Start with small RG and tune with a double-pulse test. Consider split on/off resistors. | |
Unnecessary or excessive negative gate bias (or none when needed) | Applying the wrong bias or none at all can lead to device malfunction, increased losses, or reduced system efficiency. | Default to 0 V off unless measurements show false turn‑on; only add slight negative bias (−1 to −2 V) if needed and if the device/driver explicitly allow it. | |
Inadequate local driver decoupling and return | Supply bounce or long return paths modulate VGS, creating timing jitter, overshoot, or false turn‑on. | Gate driver supply must be decoupled within a few millimeters; Gate return should be the Kelvin source, not the power source. | |
Switching behavior, current limit, timing, and topology assumptions | Using “Si‑style” long deadtime. | Long deadtime wastes power and heats the device. | Minimize deadtime and consider adaptive control. |
Measuring inductor current assuming its same as switch current | Peak current may be higher due to additive capacitive transient current and inductor entering saturation | Ensure instantaneous current is within transistor limits and there is sufficient gate drive current | |
Using long leads, sockets, or flying wires during bring‑up | Added inductance and capacitance produce ringing and overshoot, masking real behavior and risking system failure. | Test on a proper PCB. During experimentation, slow edges (temporarily increase RG, add snubbers), and run reduced voltage/current until stable. | |
Expecting big gains without changing frequency or magnetics | With Si‑era switching frequency and magnetics, GaN’s advantage may be small. | Benefits grow when you raise frequency and shrink magnetics—if the rest of the design also follows GaN design guidelines | |
Thermal Management | Placing thermal vias around the device rather than directly underneath it | GaN junction temperature may increase past its maximum limit in a short period. | Follow layout guidelines referencing copper layers and copper vias to maximize thermal performance |
Routing all heat down into the printed circuit board (PCB) | Sinking all heat into the PCB may not maximize system efficiency and can limit the maximum power output of the system | Leverage GaN package options for top-side cooling and dual-side cooling allowing for maximum heat to escape directly into the ambient air. | |
Relying solely on the datasheet's junction-to-case thermal resistance (θJC) to calculate operating temperatures | May overlook rapid thermal spikes that can occur during burst loads, leading to unexpected field system operation. | Run thermal simulations looking at the entire thermal network, paying close attention to the case-to-ambient (θCA) resistance | |
Measurement | Probing the switch node or gate with long ground leads. | You’ll see (or create) ringing that isn’t real. | Use high‑bandwidth differential probes |
Skipping the double‑pulse test. | Without a controlled test, you can’t quantify switching loss, overshoot, or tune gate/snubbers accurately. | Build a proper double‑pulse fixture. Start at low bus voltage and current and step up as you tune. | |
Measuring gate-to-power-source | Hides true VGS and can miss precarious spikes. | Reference measurements to the Kelvin source |
👉 Infineon provides a comprehensive ecosystem—including CoolGaN™ devices, evaluation boards, and design resources—to help engineers overcome these challenges and accelerate time-to-market.
