Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant
Lead-free

IRS2153D

END OF LIFE
600 V half-bridge gate driver IC with oscillator, integrated bootstrap FET, programmable frequency and programmable shutdown
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2153D
IRS2153D
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half-Bridge
  • Input Vcc range
    10.1 V to 15.4 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Sink)
    0.26 A
  • Output Current (Source)
    0.18 A
  • Qualification
    Industrial
  • VBS UVLO (Off)
    8 V
  • VBS UVLO (On)
    9 V
  • VCC UVLO (On)
    11 V
  • VCC UVLO (Off)
    9 V
  • Voltage Class
    600 V
OPN
IRS2153DPBF
Product Status discontinued
Infineon Package
PDIP8
Package Name N/A
Packing Size 3000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PDIP8
Package Name -
Packing Size 3000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EiceDRIVER™ Self-Oscillating 600 V half-bridge gate driver IC with typical 0.18 A source and 0.26 A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs . Also available in 8 Lead SOIC.

Features

  • Integ. 600 V half-bridge driver
  • CT, RT programmable oscillator
  • 15.4 V Zener clamp on Vcc
  • Micropower startup
  • Non-latched shutdown on CT pin
  • Internal bootstrap FET
  • +/- 50 V/ns dV/dt immunity
  • Internal deadtime
  • Typical deadtime 1.1 µs (IRS2153D)
  • Typical deadtime 0.6 µs (IRS21531D)

Diagrams

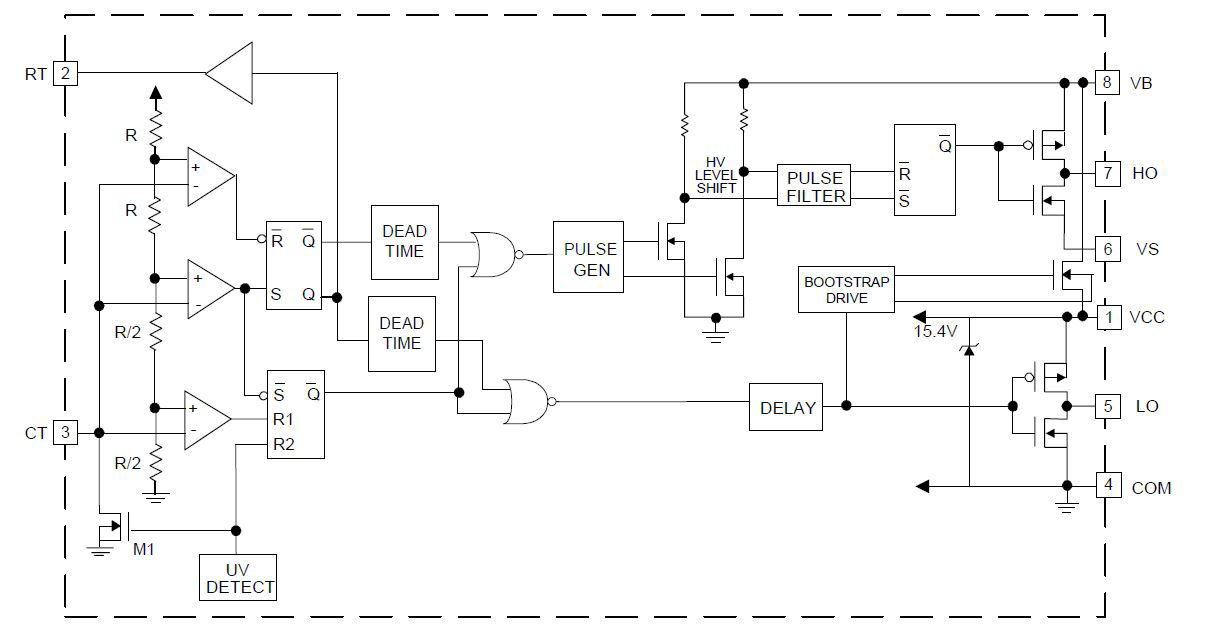

Circuit_Diagramm_IRS2153D
Circuit_Diagramm_IRS2153D
Circuit_Diagramm_IRS2153D Circuit_Diagramm_IRS2153D Circuit_Diagramm_IRS2153D
×
