IR2125

500 V single high-side gate driver IC with over current protection and fault reporting
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR2125
IR2125
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Input Vcc
    12 V to 18 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Source)
    1.6 A
  • Output Current (Sink)
    3.3 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    200 ns
  • Turn On Propagation Delay
    170 ns
  • VBS UVLO (On)
    9.2 V
  • VBS UVLO (Off)
    8.3 V
  • VCC UVLO (On)
    8.9 V
  • VCC UVLO (Off)
    8 V
  • Voltage Class
    500 V
Recommended
OPN
IR2125PBF
Product Status active and preferred
Infineon Package
PDIP8
Package Name N/A
Packing Size 3000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PDIP8
Package Name -
Packing Size 3000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ 500 V high side gate driver IC with typical 1.6 A source and 3.3 A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs . Also available in 16 Lead SOIC WB.

Features

  • Floating channel for bootstrap op.
  • Fully operational to +500 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply range: 12 to 18 V
  • Undervoltage lockout
  • Current detection
  • Current limiting loop
  • Error lead indicates fault conditi.
  • Error lead programs shutdown time
  • Output in phase with input
  • 2.5, 5 & 15 V input logic compatib.

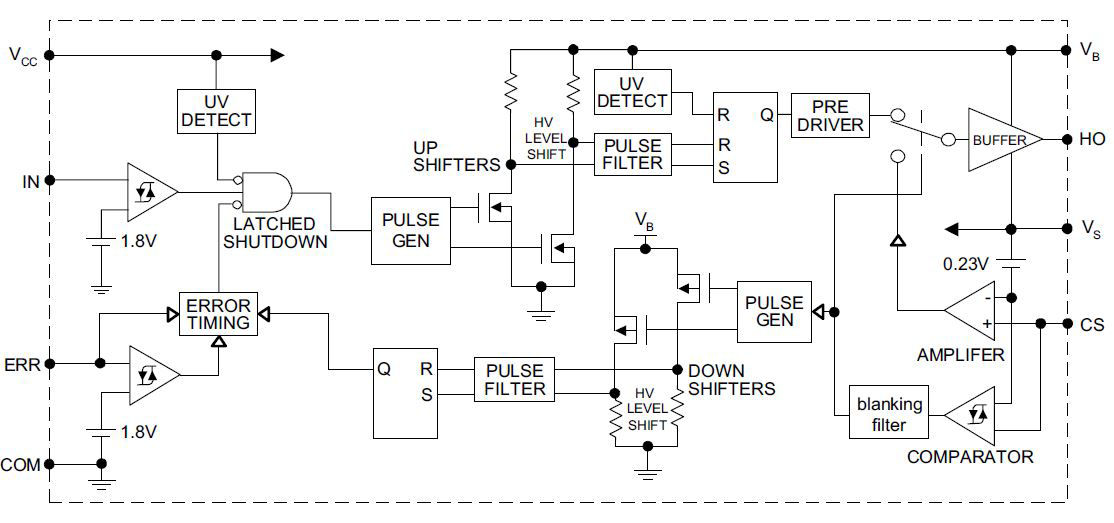

Diagrams

Circuit_Diagramm_IR2125
Circuit_Diagramm_IR2125
Circuit_Diagramm_IR2125 Circuit_Diagramm_IR2125 Circuit_Diagramm_IR2125
×
