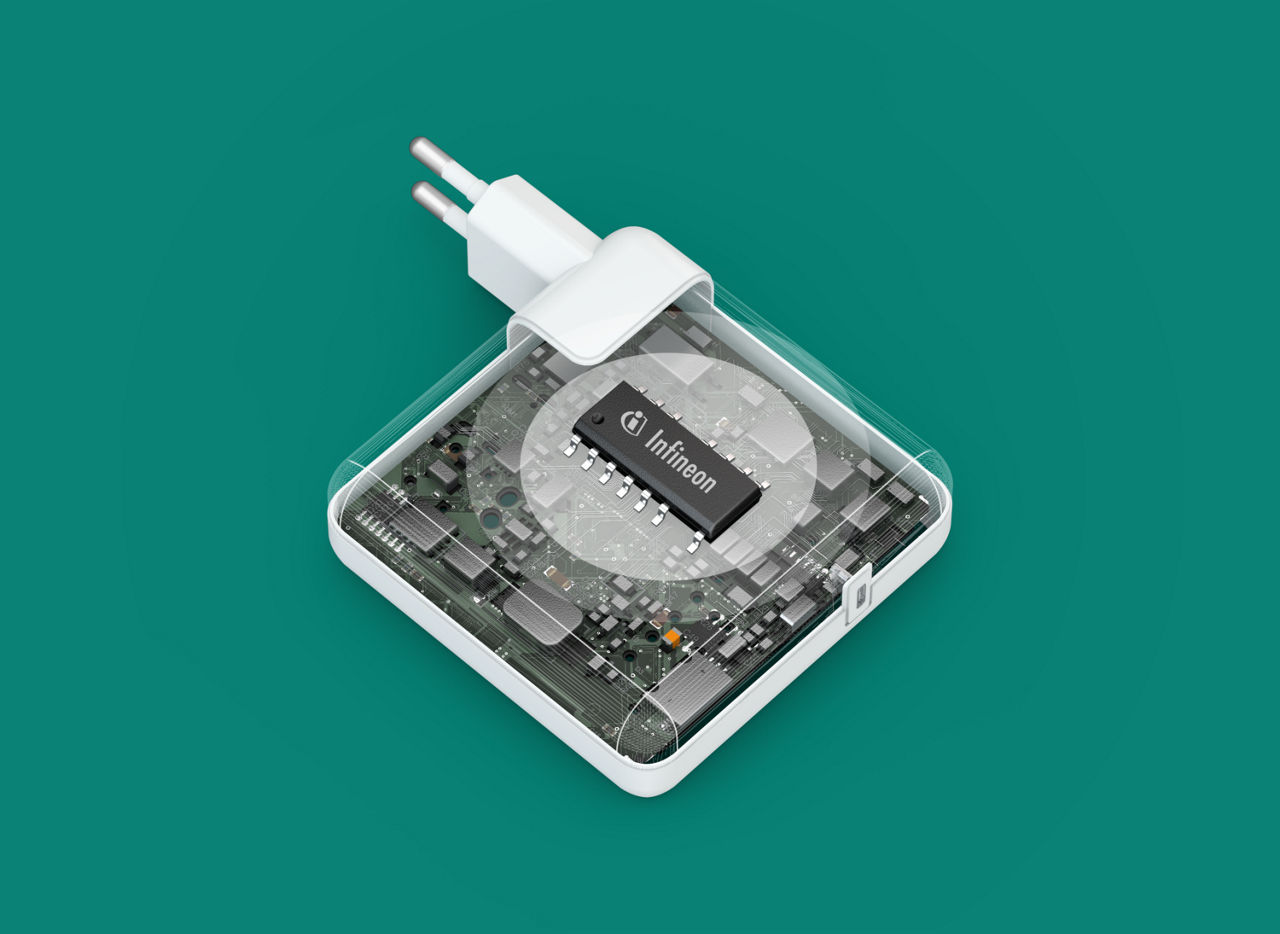

A GaN charger utilizes Gallium Nitride (GaN) instead of traditional silicon MOSFETs to convert alternating current (AC) from the wall power outlet into direct current (DC) to charge the battery in devices such as smartphones, power speakers and laptop PCs.

As GaN charger technology matures, gallium nitride chargers are quickly becoming the default choice for anyone shopping for a new charger for their electronic devices.

For more than half a century, silicon (Si) has been the undisputed bedrock of the electronics industry. From the microprocessors running our computers to the foundational power management integrated circuits (PMICs) found inside wall adapters, silicon has served us remarkably well.

However, as consumers demand faster charging speeds, smaller travel accessories, and multi-device capabilities, silicon is approaching its practical limits for high-frequency, high-power-density charger designs.

Gallium Nitride (GaN) is a binary III/V direct bandgap semiconductor. In pure chemical terms, it combines Gallium (atomic number 31) and Nitrogen (atomic number 7). When bonded, they form a crystalline structure that is far more robust than silicon when subjected to electric fields.

The defining metric of any semiconductor substrate is its bandgap. The bandgap dictates how easily electrons can escape from the valence band to the conduction band to conduct electricity.

Learn more about the physics behind GaN's bandgap and why it outperforms silicon. This same principle applies inside any GaN power supply, from a phone charger to a server power supply unit.

GaN power transistors enable significantly faster switching than conventional silicon MOSFETs. This comes from the wide bandgap combined with the two-dimensional electron gas (2DEG) that forms inside a GaN HEMT — a thin, highly conductive channel that lets electrons move with very little resistance.

Because electrons travel through GaN with minimal resistance, GaN-based power transistors can switch on and off at frequencies measuring in the hundreds of kilohertz (kHz) or even megahertz (MHz).

Traditional silicon power metal-oxide-semiconductor field-effect transistors (MOSFETs) are generally bound to switching speeds under 100 kHz. By operating at several times higher switching frequencies, a GaN charger minimizes the time an electrical current spends in a transitional, energy-wasting state.

Learn more about the GaN FET's internal structure and how it enables this fast switching.

Gallium Nitride (GaN) is a binary III/V direct bandgap semiconductor. In pure chemical terms, it combines Gallium (atomic number 31) and Nitrogen (atomic number 7). When bonded, they form a crystalline structure that is far more robust than silicon when subjected to electric fields.

The defining metric of any semiconductor substrate is its bandgap. The bandgap dictates how easily electrons can escape from the valence band to the conduction band to conduct electricity.

Learn more about the physics behind GaN's bandgap and why it outperforms silicon. This same principle applies inside any GaN power supply, from a phone charger to a server power supply unit.

GaN power transistors enable significantly faster switching than conventional silicon MOSFETs. This comes from the wide bandgap combined with the two-dimensional electron gas (2DEG) that forms inside a GaN HEMT — a thin, highly conductive channel that lets electrons move with very little resistance.

Because electrons travel through GaN with minimal resistance, GaN-based power transistors can switch on and off at frequencies measuring in the hundreds of kilohertz (kHz) or even megahertz (MHz).

Traditional silicon power metal-oxide-semiconductor field-effect transistors (MOSFETs) are generally bound to switching speeds under 100 kHz. By operating at several times higher switching frequencies, a GaN charger minimizes the time an electrical current spends in a transitional, energy-wasting state.

Learn more about the GaN FET's internal structure and how it enables this fast switching.

When evaluating modern charging hardware, engineers rely heavily on two central engineering metrics: Power Levels (measured in Watts) and Power Densities (measured in Watts per cubic inch, or W/in³).

With GaN, there has been a Charger power density revolution from 3 to 5 W/in³ chargers with silicon MOSFETs to 9 to 18+ W/in³ with GaN, approaching a 4x improvement.

Power density is the ultimate indicator of structural optimization. It is computed using a straightforward geometric ratio:

Power Density = Maximum Rated Output Power (Watts) / Physical Volume of the Charger (Cubic Inches)

  • Traditional silicon chargers (The Past): Old-school laptop chargers and stock smartphone blocks generally operate at power densities ranging between 3 to 5 W/in³. They require vast physical volume to house internal components and large metal heat sinks to shed excess thermal waste.
  • GaN Chargers (The Present & Future): Modern GaN-based chargers, also referred to as adapters, typically achieve power densities of 9 to 18+ W/in³. This means you get up to three to four times the electrical power output packed into the exact same physical space.

GaN technology scales beautifully across a wide array of power requirements, allowing a single architecture to service everything from low-draw accessories to power-hungry workstations.

  • Primary Target: Smartphones, tablets, and handheld gaming consoles.
  • The GaN Benefit: As an example, some 30 W GaN chargers can be built to the physical dimensions of an old 5W "sugar cube" silicon stock charger — the exact size depends on the specific design. This pocketable size makes GaN adapters an ideal daily carry item for commuters who need rapid top-ups via USB-C Power Delivery (PD) and Programmable Power Supply (PPS) protocols.
  • Primary Target: Business laptops, ultrabooks and multi-device charging combinations.
  • The GaN Benefit: The 65 W to 100 W tier is the sweet spot of modern, efficient charging. A single 65 W GaN adapter can replace your laptop's large, proprietary power cord. As one example, a 100 W charger with two ports can act as your single charger to carry, charging your laptop and your smartphone simultaneously — dynamically splitting the power, for instance delivering 65 W to the laptop and 30W to the phone (using the remaining 5 W as a safety buffer).

    The exact split depends on the manufacturer and the specific ports involved, but both devices will receive enough power to fast-charge simultaneously without overheating or damaging the batteries. And, a 100 W 2-port GaN charger is typically 40% to 60% smaller in volume and about 40% to 55% lighter than an equivalent 2-port silicon MOSFET-based charger.
  • Primary Target: High-end creator workstations, enthusiast gaming laptops, and multi-port charging hubs.
  • The GaN Benefit: Prior to GaN, a 140 W or 240 W power supply resembled a heavy paving brick. Utilizing advanced GaN platforms paired with the latest USB Power Delivery Extended Power Range (EPR) standard, manufacturers can deliver up to 48 V and 5 A (240 W) out of an adapter that fits comfortably in the palm of your hand. This completely redefines mobile workstations and minimizes travel weight for digital nomads.

Power density is the ultimate indicator of structural optimization. It is computed using a straightforward geometric ratio:

Power Density = Maximum Rated Output Power (Watts) / Physical Volume of the Charger (Cubic Inches)

  • Traditional silicon chargers (The Past): Old-school laptop chargers and stock smartphone blocks generally operate at power densities ranging between 3 to 5 W/in³. They require vast physical volume to house internal components and large metal heat sinks to shed excess thermal waste.
  • GaN Chargers (The Present & Future): Modern GaN-based chargers, also referred to as adapters, typically achieve power densities of 9 to 18+ W/in³. This means you get up to three to four times the electrical power output packed into the exact same physical space.

GaN technology scales beautifully across a wide array of power requirements, allowing a single architecture to service everything from low-draw accessories to power-hungry workstations.

  • Primary Target: Smartphones, tablets, and handheld gaming consoles.
  • The GaN Benefit: As an example, some 30 W GaN chargers can be built to the physical dimensions of an old 5W "sugar cube" silicon stock charger — the exact size depends on the specific design. This pocketable size makes GaN adapters an ideal daily carry item for commuters who need rapid top-ups via USB-C Power Delivery (PD) and Programmable Power Supply (PPS) protocols.
  • Primary Target: Business laptops, ultrabooks and multi-device charging combinations.
  • The GaN Benefit: The 65 W to 100 W tier is the sweet spot of modern, efficient charging. A single 65 W GaN adapter can replace your laptop's large, proprietary power cord. As one example, a 100 W charger with two ports can act as your single charger to carry, charging your laptop and your smartphone simultaneously — dynamically splitting the power, for instance delivering 65 W to the laptop and 30W to the phone (using the remaining 5 W as a safety buffer).

    The exact split depends on the manufacturer and the specific ports involved, but both devices will receive enough power to fast-charge simultaneously without overheating or damaging the batteries. And, a 100 W 2-port GaN charger is typically 40% to 60% smaller in volume and about 40% to 55% lighter than an equivalent 2-port silicon MOSFET-based charger.
  • Primary Target: High-end creator workstations, enthusiast gaming laptops, and multi-port charging hubs.
  • The GaN Benefit: Prior to GaN, a 140 W or 240 W power supply resembled a heavy paving brick. Utilizing advanced GaN platforms paired with the latest USB Power Delivery Extended Power Range (EPR) standard, manufacturers can deliver up to 48 V and 5 A (240 W) out of an adapter that fits comfortably in the palm of your hand. This completely redefines mobile workstations and minimizes travel weight for digital nomads.

The raw technology advantages of GaN are only half the story. To actually harvest those benefits, power electronics engineers must transition away from old silicon circuit designs and implement advanced high-frequency circuit topologies.

POWER CONVERSION PIPELINE

AC Input (Wall Plug) → PFC Stage (GaN Boost) → DC-DC Isolation (ACF or LLC Resonant) → DC Output (To Device)

The Flyback topology has long been the default choice for low-to-medium power adapters due to its simplicity and low component count. However, traditional flyback circuits waste energy stored in the transformer's leakage inductance, dissipating it as pure heat through a resistor-capacitor-diode (RCD) snubber circuit.

  • How GaN Enhances It: In an Active Clamp Flyback (ACF) circuit, the wasteful snubber is replaced by an active switch (a GaN HEMT) and a clamping capacitor.
  • The Mechanism: The ACF topology utilizes this stored leakage energy to achieve Zero Voltage Switching (ZVS). Instead of forcing the main power switch to turn on while a high voltage sits across it, the active clamp forces the voltage across the switch to drop to zero right before it fires.
  • The Result: Switching losses drop to nearly zero, allowing the charger to run at switching speeds well over 200 kHz. This high frequency dramatically shrinks the required size of the transformer's magnetic core.

For high-power adapters (typically 100 W to 240 W and beyond), the ACF topology can run into efficiency limitations. In this segment, engineers deploy LLC Resonant Converters (comprising two inductors (L) and one capacitor (C)).

  • How GaN Enhances It: LLC converters naturally favor soft-switching methodologies, ensuring both Zero Voltage Switching (ZVS) at turn-on and Zero Current Switching (ZCS) at turn-off.
  • The Mechanism: Because GaN components possess exceptionally low parasitic capacitances (such as COSS, the output capacitance), the dead-time required between alternating cycles in an LLC circuit can be slashed down to the nanosecond range.
  • The Result: The converter maintains peak efficiencies of 95% – 97%+ even when outputting maximum current, ensuring that high-wattage multi-port laptop chargers remain cool and compact.

Learn more about how the LLC stage operates inside high-power GaN chargers.

Global regulatory frameworks require electronic power supplies over 75 W to include Power Factor Correction (PFC) to prevent harmonic distortion of the public AC grid. A traditional silicon layout requires a dedicated, bulky PFC boost stage followed by a separate DC-DC conversion stage.

By using GaN, designers can build integrated Totem-Pole PFC architectures. This approach eliminates the highly inefficient AC diode bridge rectifier entirely, replacing it with ultra-low resistance GaN switches. The reduction in component count and systemic electrical resistance allows multi-port high-power blocks to shrink by 30% or more.

The Flyback topology has long been the default choice for low-to-medium power adapters due to its simplicity and low component count. However, traditional flyback circuits waste energy stored in the transformer's leakage inductance, dissipating it as pure heat through a resistor-capacitor-diode (RCD) snubber circuit.

  • How GaN Enhances It: In an Active Clamp Flyback (ACF) circuit, the wasteful snubber is replaced by an active switch (a GaN HEMT) and a clamping capacitor.
  • The Mechanism: The ACF topology utilizes this stored leakage energy to achieve Zero Voltage Switching (ZVS). Instead of forcing the main power switch to turn on while a high voltage sits across it, the active clamp forces the voltage across the switch to drop to zero right before it fires.
  • The Result: Switching losses drop to nearly zero, allowing the charger to run at switching speeds well over 200 kHz. This high frequency dramatically shrinks the required size of the transformer's magnetic core.

For high-power adapters (typically 100 W to 240 W and beyond), the ACF topology can run into efficiency limitations. In this segment, engineers deploy LLC Resonant Converters (comprising two inductors (L) and one capacitor (C)).

  • How GaN Enhances It: LLC converters naturally favor soft-switching methodologies, ensuring both Zero Voltage Switching (ZVS) at turn-on and Zero Current Switching (ZCS) at turn-off.
  • The Mechanism: Because GaN components possess exceptionally low parasitic capacitances (such as COSS, the output capacitance), the dead-time required between alternating cycles in an LLC circuit can be slashed down to the nanosecond range.
  • The Result: The converter maintains peak efficiencies of 95% – 97%+ even when outputting maximum current, ensuring that high-wattage multi-port laptop chargers remain cool and compact.

Learn more about how the LLC stage operates inside high-power GaN chargers.

Global regulatory frameworks require electronic power supplies over 75 W to include Power Factor Correction (PFC) to prevent harmonic distortion of the public AC grid. A traditional silicon layout requires a dedicated, bulky PFC boost stage followed by a separate DC-DC conversion stage.

By using GaN, designers can build integrated Totem-Pole PFC architectures. This approach eliminates the highly inefficient AC diode bridge rectifier entirely, replacing it with ultra-low resistance GaN switches. The reduction in component count and systemic electrical resistance allows multi-port high-power blocks to shrink by 30% or more.

The transition from silicon to Gallium Nitride represents one of the most practical upgrades in modern tech accessories. By leveraging a wider bandgap and low-loss, high-speed GaN power transistors, GaN chargers compress immense, multi-device power into an ultra-compact form factor that runs remarkably cool.

Whether you are looking to declutter your work desk, lighten your travel bag, or fast-charge your laptop and phone simultaneously, switching to GaN technology based chargers deliver an immediate upgrade to your daily workflow.
