IRS20965S

END OF LIFE
High voltage, high speed MOSFET driver with floating PWM inputs designed for Class D audio amplifier applications
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS20965S
IRS20965S
Data Sheet

Product details

  • Audio Input Type
    PWM
  • Description
    Driver for 500W applications - 1 channel PWM input Class-D audio amplifier
  • Output Current (Sink)
    2000 mA
  • Output Current (Source)
    2000 mA
  • Package
    SOIC 16 pins
  • Speaker Channels
    1
  • Supply Voltage ((V))
    +/-100
  • Technology
    HVIC
  • VCC
    10 V to 15 V
OPN
IRS20965STRPBF
Product Status discontinued
Infineon Package
PG-DSO-16
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-DSO-16
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Benefits

  • Hi-side and Lo-side independent floating PWM input
  • Programmable bidirectional over-current detection with self-reset function
  • Over current sensing output
  • Shoot-through prevention logic
  • High noise immunity
  • + - 100V ratings deliver up to 500W in output power
  • 3.3 V / 5 V logic compatible input
  • Operates up to 800kHz

Applications

Diagrams

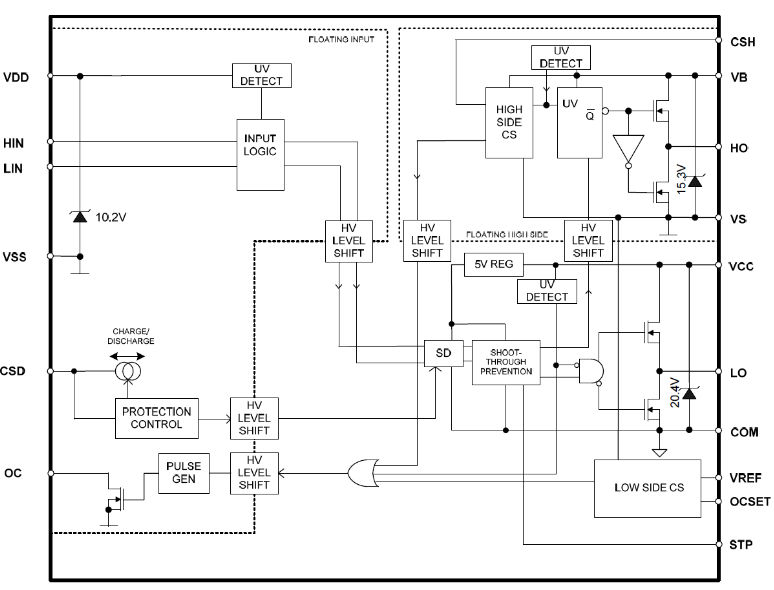

fbd-irs20965s
fbd-irs20965s
fbd-irs20965s fbd-irs20965s fbd-irs20965s

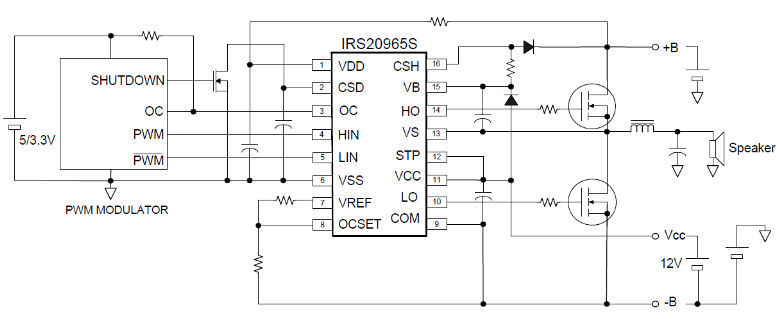

tc-irs20965s tc-irs20965s tc-irs20965s
×
