Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant
Lead-free

IR21531

END OF LIFE
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR21531
IR21531
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Input Vcc
    10 V to 15.6 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Sink)
    0.26 A
  • Output Current (Source)
    0.18 A
  • Qualification
    Industrial
  • VBS UVLO (On)
    10 V
  • VBS UVLO (Off)
    8 V
  • VCC UVLO (Off)
    8 V
  • VCC UVLO (On)
    9 V
  • Voltage Class
    600 V
OPN
IR21531PBF
Product Status discontinued
Infineon Package
PDIP8
Package Name N/A
Packing Size 3000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PDIP8
Package Name -
Packing Size 3000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Half Bridge Driver, LO In Phase with RT, Programmable Oscillating Frequency, 0.6us Deadtime in a 8-pin DIP package and differenct phase

Features

  • Integ. 600 V half-bridge driver
  • 15.6 V zener clamp on Vcc
  • True micropower start up
  • Tighter initial deadtime control
  • Low temp. coefficient deadtime
  • Shutd. feat. (1/6th Vcc) on CT pin
  • Incr. undervolt. lockout hysteresis
  • Lower power level-shifting circuit
  • Const. LO, HO pulse widths at start
  • Lower di/dt for better noise imm.
  • Low side output in phase with RT
  • Internal bootstrap diode (IR21531D)

Applications

Diagrams

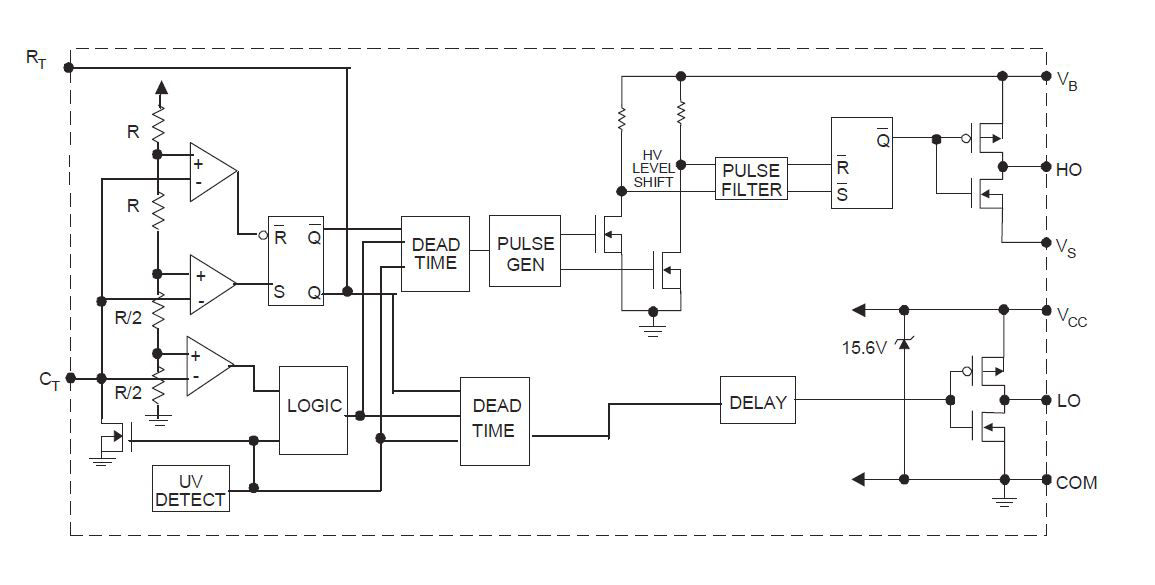

Circuit_Diagramm_IR21531
Circuit_Diagramm_IR21531
Circuit_Diagramm_IR21531 Circuit_Diagramm_IR21531 Circuit_Diagramm_IR21531
×
