IHW15N120R3

END OF LIFE
1200 V IGBT with anti-parallel diode in TO-247 package
Data Sheet
package
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IHW15N120R3
IHW15N120R3
View replacement
Data Sheet

Product details

  • Eoff (Hard Switching)
    0.7 mJ
  • IC (@ 25° ) max
    30 A
  • IC (@ 100°) max
    15 A
  • ICpuls max
    45 A
  • IF max
    30 A
  • IFpuls max
    45 A
  • Package
    TO-247-3
  • Ptot max
    254 W
  • QGate
    165 nC
  • RGint
    0 Ω
  • RG
    14.6 Ω
  • Switching Frequency
    8 kHz to 60 kHz
  • td(off)
    300 ns
  • Technology
    IGBT RC Soft Switching
  • tf
    46 ns
  • VCE(sat)
    1.48 V
  • VCE max
    1200 V
  • VF
    1.55 V
  • VGE(th)
    5.8 V
OPN
IHW15N120R3FKSA1
Product Status discontinued
Infineon Package
PG-TO247-3
Package Name TO247
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-TO247-3
Package Name TO247
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 3rd generation of reverse conducting 1200 V, 15 A TRENCHSTOP™ RC-IGBT3 with monolithically integrated reverse conducting diode in a TO-247 package has been optimized for lower switching and conduction losses. Reduced power dissipation together with soft switching behavior allows better thermal performance and EMI behavior resulting in lower system costs. Excellent performance can be achieved at lower costs.

Features

  • Best-in-class VCEsat & Vf
  • Lowest switching losses
  • Highest efficiency
  • Tj(max) = 175°C
  • Soft current turn-off waveforms
  • Low EMI

Benefits

  • Lowest power dissipation
  • Better thermal management
  • Surge current capability
  • Reduced system costs
  • reliability against peak currents

Applications

Home appliances

Diagrams

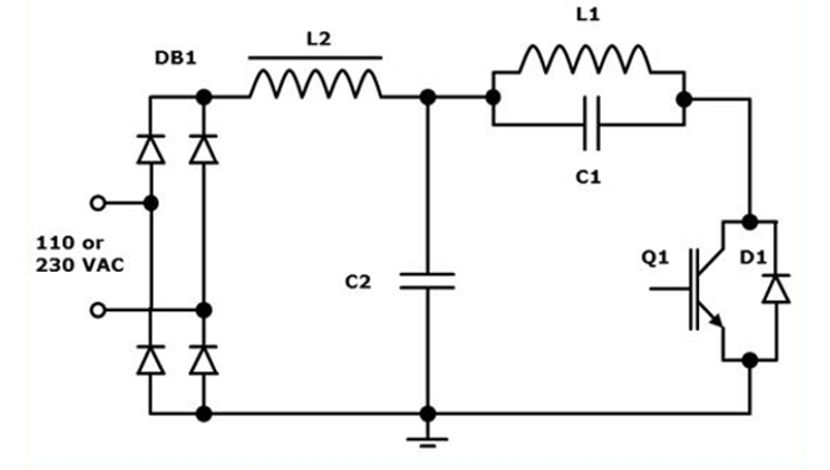

circuit_diagram_singleswitchtopology
