ICE2QR4765-T
ICE2QR4765-T
Data Sheet

Product details

  • ESD Protection max
    2 kV
  • Family
    CoolSET™
  • Frequency Range
    Variable
  • Green Product
    Yes
  • ICC
    1.5 mA
  • Mounting
    THT
  • Operating Temperature
    -40 °C to 130 °C

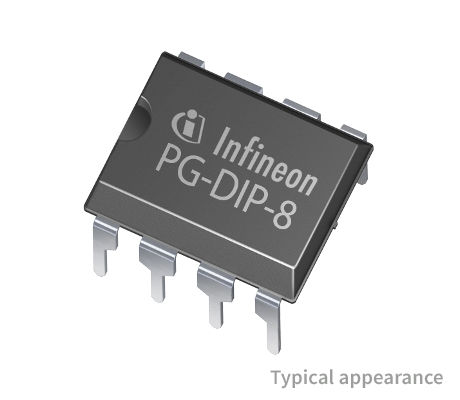

  • Package
    PG-DIP-8
  • Pout max
    15 W
  • RDS (on) max
    5.44 Ω
  • Sub Application
    Offline SMPS
  • Switching Frequency
    Variable
  • Target Application
    Power Supplies
  • Technology
    Gen2
  • tf
    30 ns
  • Topology
    Flyback
  • tr
    30 ns
  • Type
    PWM controller with integrated MOSFET
  • VCC
    10.5 V to 24 V
  • VDS max
    650 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Integrated power management IC with 650V avalanche rugged CoolMOS™, startup cell and QR current mode flyback PWM controller. Capable for 16W SMPS design. This derivative has an extended operating temperature to -40°C. The digital frequency reduction feature score a very stable operation with decreasing load change, and the fold-back correction keep the maximum power limits within tolerance desired by SMPS designers.

Features

  • Integrated power IC with 650V avalanche rugged CoolMOS™, startup cell and QR flyback PWM controller
  • Digital frequency reduction with decreasing load,
  • Cycle-by-cycle current limitation with fold-back correction
  • Built-in digital soft-start
  • Active burst mode for lowest standby power <50mW
  • Latch-off mode for short-winding and output voltage
  • Enhanced integrated protection functions, modulated gate drive
  • Operating temperature extended to -40°C, etc.

Benefits

  • Higher efficiency
  • Low EMI noise
  • Low standby power, etc.

Applications
