not for new design
RoHS Compliant

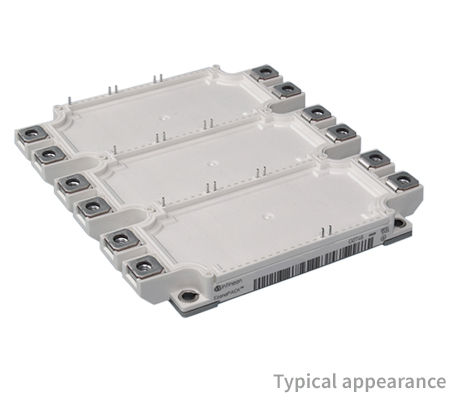

FS300R17KE4

1700 V, 300 A sixpack IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS300R17KE4
FS300R17KE4
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    162 mm
  • Dimensions (width)
    150 mm
  • Features
    Solder Pin
  • Housing
    EconoPACK™ + B
  • IC(nom) / IF(nom)
    300 A
  • IC max
    300 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
OPN
FS300R17KE4BOSA1
Product Status not for new design
Infineon Package AG-ECONOPP
Package Name N/A
Packing Size 4
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package AG-ECONOPP
Package Name -
Packing Size 4
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPACK™ + B-series 1700V sixpack IGBT module with Trench/Fieldstop IGBT4 and Emitter Controlled 3 diode

Features

  • Easy separation of DC and AC
  • Optimized Thermal Resistance
  • Highest power density
  • For compact Inverter Designs

Applications
