FS05MR12A6MA1B

This HybridPACK™ Drive is a very compact six-pack module (1200V/200A) optimized for hybrid and electric vehicles.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS05MR12A6MA1B
FS05MR12A6MA1B
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (width)
    100.5 mm
  • Dimensions (length)
    154.5 mm
  • Features
    PinFin Base Plate
  • Housing
    HybridPACK™ Drive
  • ID
    200 A
  • Launch year
    2020
  • Planned to be available until at least
    2033
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    5.5 mΩ
  • VDS max
    1200 V
OPN
FS05MR12A6MA1BBPSA1
Product Status not for new design
Infineon Package AG-HDG1-3211
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package AG-HDG1-3211
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The power module implements the new CoolSiC™ Automotive MOSFET 1200V, optimized for electric drive train applications.

Features

  • New semiconductor material
  • Silicon Carbide
  • Blocking voltage 1200V
  • Low RDSon
  • Low Switching Losses
  • Low Qg and Crss
  • T vj op= 150°C
  • Mechanical Features
  • 4.2kV DC 1sec Insulation
  • High Creepage and Clearance Distances
  • Compact design
  • High Power Density
  • Direct Cooled PinFin Base Plate
  • High Performance Si3N4 Ceramic
  • Guiding elements for PCB and cooler assembly
  • Integrated NTC temperature sensor
  • PressFIT Contact Technology
  • RoHS compliant
  • UL 94 V0 module frame

Benefits

  • Compact Design
  • Direct Cooled Base Plate
  • Guiding elements for PCB and cooler assembly
  • Integrated NTC temperature sensor
  • PressFIT Contact Technology
  • RoHS compliant
  • Superior reliability

Diagrams

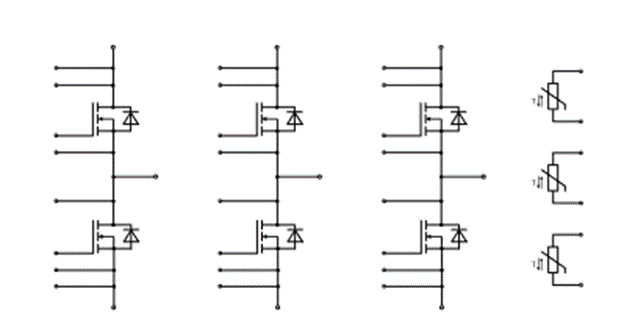

FS05MR12A6MA1B_Diagram
