BTF50060-1TEA

High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Data Sheet

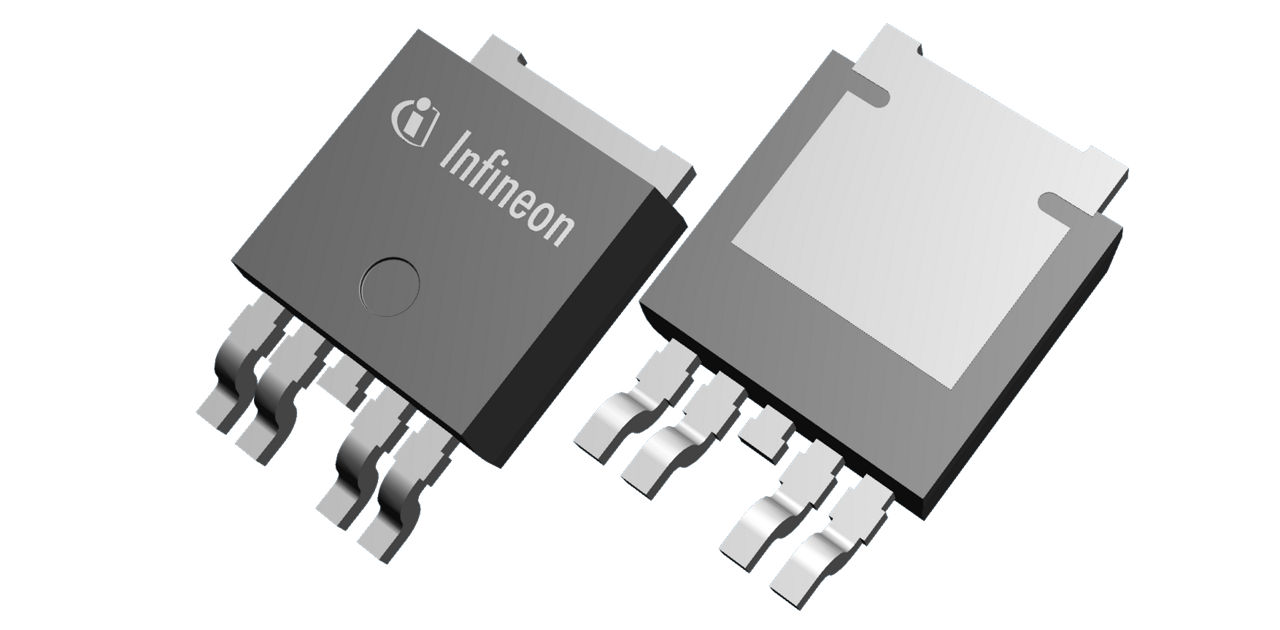

package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTF50060-1TEA
BTF50060-1TEA
ea.
Data Sheet

Product details

  • Channels
    1
  • Current Limit min
    60 A
  • Diagnostics
    Sense
  • Family
    Classic PROFET™ 12V
  • IL (Short Circuit Current)
    60 A
  • Mounting
    SMT
  • Nominal Load Current per channel (All channels active)
    13.5 A
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    2033
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    6 mΩ
  • RDS (on) (@ Tj = 150°C) max
    12 mΩ
  • Recommended Operating Voltage
    4.7 V to 28 V
  • toff (Turn OFF time) max
    1.5 µs
  • ton (Turn ON time) max
    1 µs
Recommended
OPN
BTF500601TEAAUMA1
Product Status active
Infineon Package
PG-TO252-5
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-5
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Overload protection
  • Current limitation
  • Short circuit protection
  • Thermal shutdown
  • Overvoltage protection
  • Fast demagnetization of inductive loads
  • Reverse battery protection1)
  • Open drain diagnostic output
  • Open load detection in OFF-state
  • CMOS compatible input
  • Loss of ground & loss of Vbb protection
  • Electrostatic discharge (ESD) protection

Benefits

  • PWM capability up to 25kHz
  • High load current capability
  • High inrush current capability
  • High energy capability
  • Integrated protection functionality
  • Integrated diagnosis functionality

Applications
