R 12V PDU SWITCH20

12 V High current power distribution switch with core-less hall based current measurement – Demonstration Board
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

R 12V PDU SWITCH20
R 12V PDU SWITCH20
ea.
Application Notes

Product details

  • Board Type
    Demo Board
  • Dimensions
    135 mm x 100 mm
  • Family
    Sensor, EiceDRIVER™ Gate Driver, OptiMOS™ 7
  • Input Type
    DC
  • Qualification
    Automotive
  • Supply Voltage
    8 V to 36 V
  • Target Application
    Relays, Construction and agricultural vehicles (CAV), Power Distribution, Automotive
  • Topology
    Back to Back common source, High-Side, High-side switch
OPN
R12VPDUSWITCH20TOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

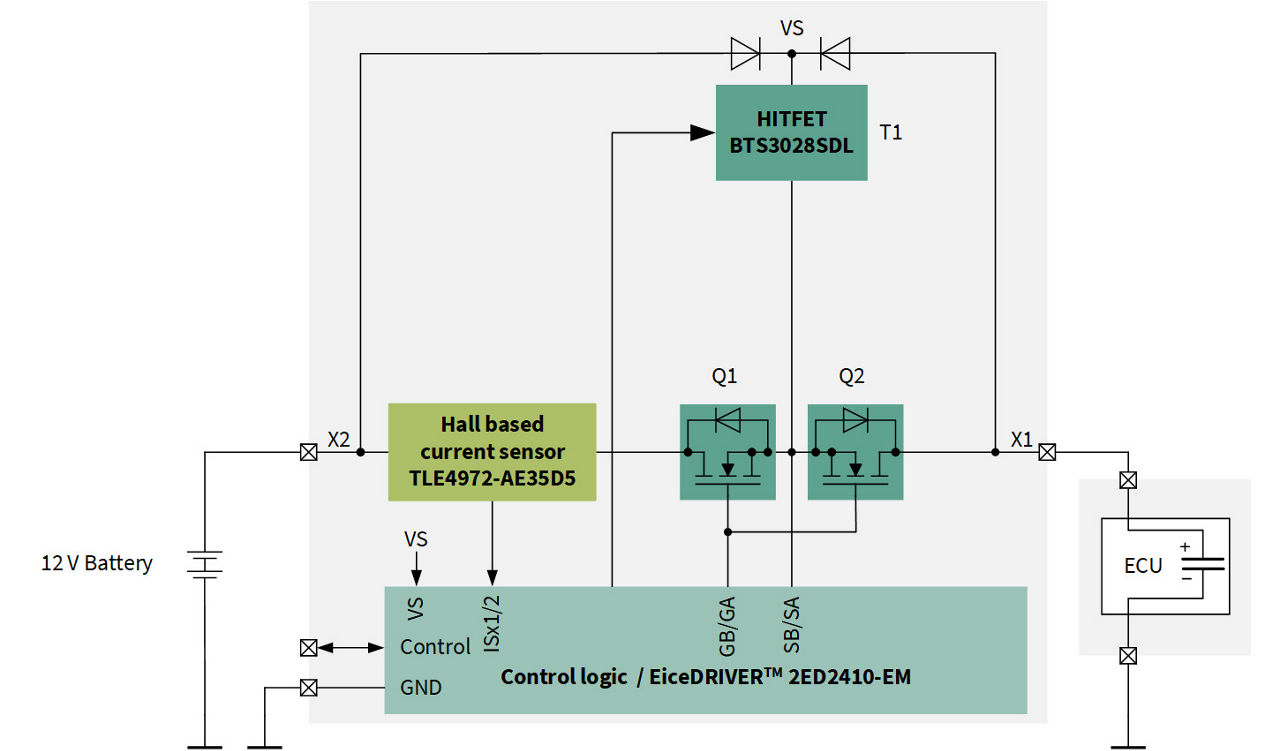

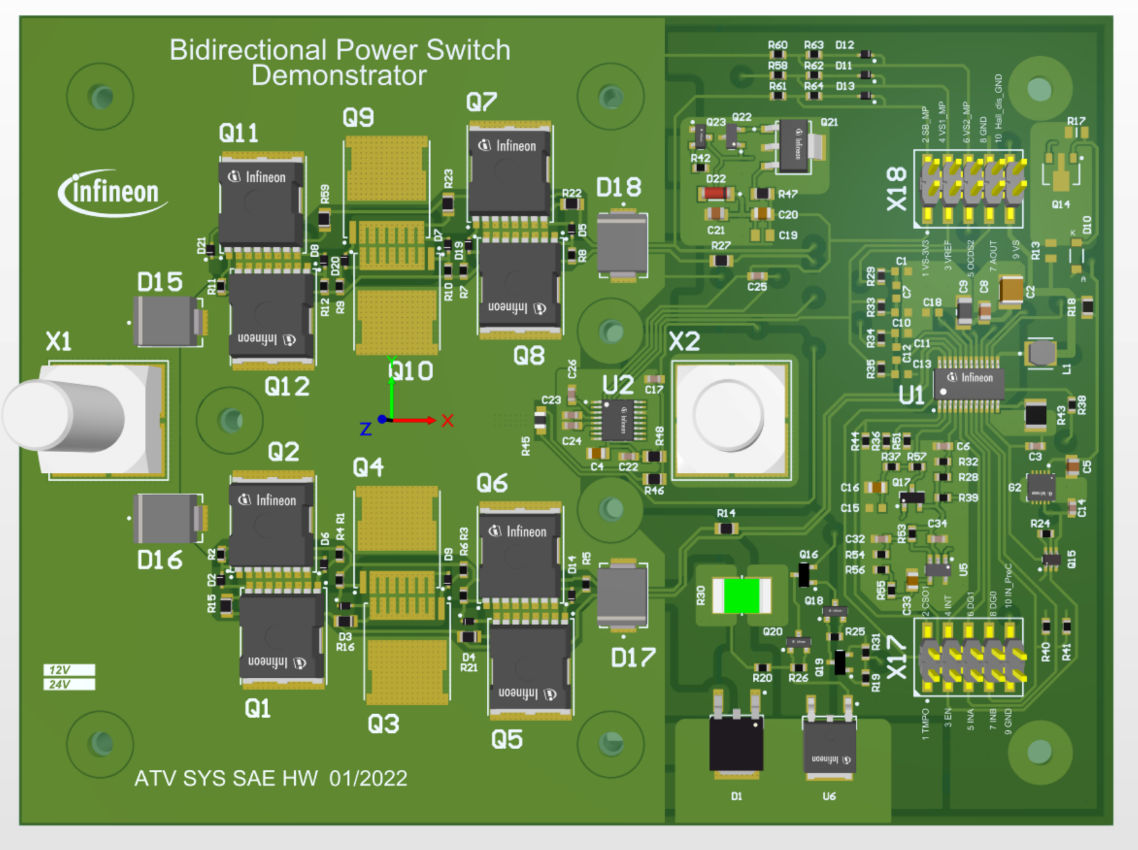

The growing trend of vehicle electrification and autonomous driving requires new power distribution architectures. This reference board offers reliable, fast switching and fail operational capability. It features overcurrent protection, a pre-charge path, and Power-MOSFET-Transistors in OptiMOSTM technology. Controlled by EiceDRIVERTM APD 2ED2410-EM, it has protection features and a core-less hall-based current sensor.

Features

  • 200 A continuous current power switch
  • One high-side channel
  • One channel for a pre-charge path
  • Core-less hall based current monitoring
  • Over current protection adjustable
  • Integrated wire-protection

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

R-12V-PDU-Switch20
R-12V-PDU-Switch20
R-12V-PDU-Switch20 R-12V-PDU-Switch20 R-12V-PDU-Switch20
×
