IPT034N15NM6

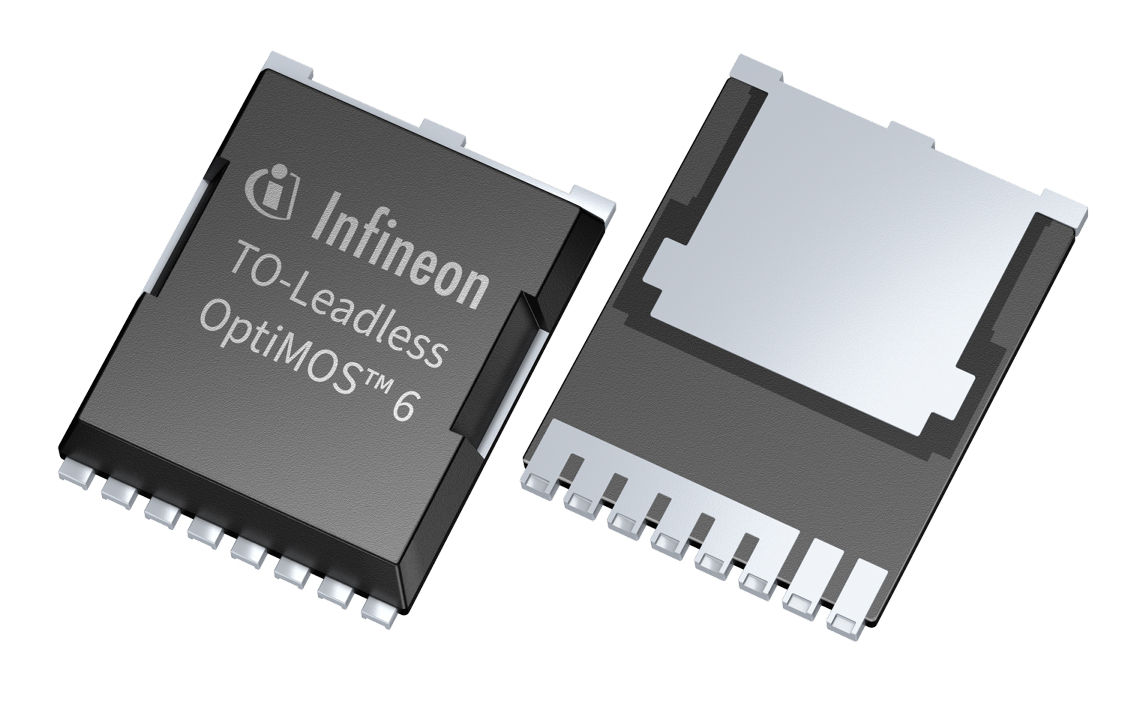

OptiMOS™ 6 power MOSFET 150 V normal level in TOLL package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPT034N15NM6
IPT034N15NM6
ea.
Data Sheet

Product details

  • ID (@25°C) max
    194 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    TOLL (HSOF-8)
  • Polarity
    N
  • QG (typ @10V)
    69 nC
  • RDS (on) (@10V) max
    3.4 mΩ
  • VDS max
    150 V
  • VGS(th)
    3.5 V
Recommended
OPN
IPT034N15NM6ATMA1
Product Status active and preferred
Infineon Package
PG-HSOF-8
Package Name TOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HSOF-8
Package Name TOLL
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IPT034N15NM6 OptiMOS™ 6 150 V in normal level is setting a new level of performance within the highly competitive 150 V market. OptiMOS™ 6 150 V technology was designed to fulfill the requirements of both high and low switching frequency applications, in hard and soft switching.

Features

  • Very low RDS(on)
  • 20% lower FOMg than OptiMOS™ 5
  • Industry's lowest Qrr in 150 V
  • Improved diode softness vs OptiMOS™ 5
  • Tight Vgs(th) spread of +/-500 mV
  • High avalanche ruggedness
  • High current rating
  • Max Tj of 175°C and MSL1

Benefits

  • Low conduction and switching losses
  • Stable operation with improved EMI
  • Better current sharing when paralleling
  • Superior power handling capability
  • Enhanced robustness
  • Improved system reliability
