IKY140N120CH7

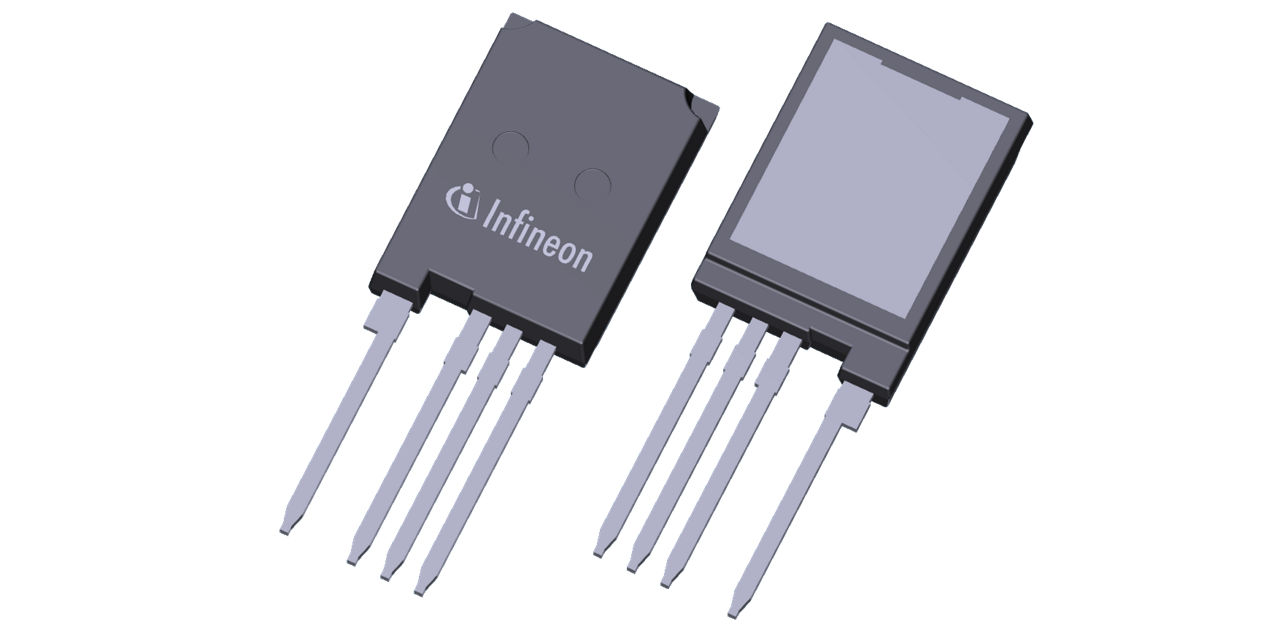

1200 V, 140 A IGBT with anti-parallel diode in TO-247PLUS 4pin package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IKY140N120CH7
IKY140N120CH7
ea.
Data Sheet

Product details

  • Eoff (Hard Switching)
    8.45 mJ
  • Eon
    4.42 mJ
  • IC (@ 25°) max
    232 A
  • IC (@ 100°) max
    193 A
  • ICpuls max
    560 A
  • IF max
    170 A
  • IFpuls max
    560 A
  • Irrm
    216 A
  • Package
    TO247-4-PLUS
  • Ptot (@ TA=25°C) max
    962 W
  • QGate
    1032 nC
  • Qrr
    13900 nC
  • RGint
    0 Ω
  • RG
    2.9 Ω
  • Switching Frequency
    16 kHz to 100 kHz
  • td(off)
    504 ns
  • td(on)
    48 ns
  • Technology
    TRENCHSTOP™ IGBT7
  • tf
    123 ns
  • tr
    23 ns
  • VCE(sat)
    2 V
  • VCE max
    1200 V
  • VF
    2.5 V
  • VGE(th)
    5.5 V
Recommended
OPN
IKY140N120CH7XKSA1
Product Status active and preferred
Infineon Package
PG-TO247-4
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO247-4
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Hard-switching 1200 V, 140 A TRENCHSTOP™ IGBT7 H7 discrete in TO-247PLUS 4pin package technology has been developed to fulfill the demand in applications focusing on decarbonization such as solar photovoltaic, uninterruptible power supplies and battery chargers.

Features

  • Excellent VCEsat behav.
  • Fast switching behavior
  • Low EMI emissions
  • Optimized diode for target applica.
  • Low Qrr
  • Low gate resistor select. possible
  • Excellent switch.behavior (@>5 Ω)
  • Offering Tj(max) of 175 °C
