Active and preferred
RoHS Compliant

FS100R17PE4

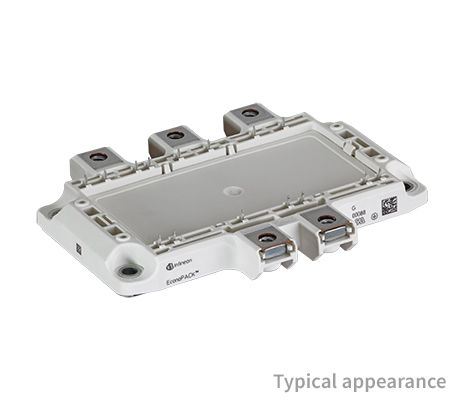

1700 V, 100 A sixpack IGBT module
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS100R17PE4
FS100R17PE4
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    130 mm
  • Dimensions (width)
    70.6 mm
  • Features
    PressFIT
  • Housing
    EconoPACK™ 4
  • IC(nom) / IF(nom)
    100 A
  • IC max
    100 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
Recommended
OPN
FS100R17PE4BOSA1
Product Status active and preferred
Infineon Package
AG-ECONO4
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
AG-ECONO4
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPACK™ 4 1700V sixpack IGBT module with Trench/Fieldstop IGBT4, Emitter Controlled 4 diode, NTC and PressFIT Contact Technology

Features

  • Extended operation temp. Tvj op
  • Low VCEsat
  • VCEsatwith positive temp. coeffici.
  • Isolated base plate
  • Standard housing

Applications
