Active and preferred
RoHS Compliant

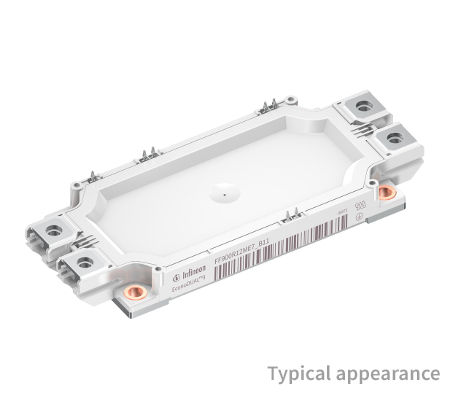

FF1MR12MM1HP_B11

CoolSiC™ MOSFET half-bridge module 1200 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1MR12MM1HP_B11
FF1MR12MM1HP_B11
ea.
Data Sheet

Product details

  • Applications
    Solar, eCAV, EV Charger, ESS, UPS
  • Configuration
    Half-bridge
  • Dimensions (width)
    62 mm
  • Dimensions (length)
    152 mm
  • Features
    TIM, PressFIT
  • Housing
    EconoDUAL™ 3
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    1.46 mΩ
Recommended
OPN
FF1MR12MM1HPB11BPSA1
Product Status active and preferred
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoDUAL™ 3 CoolSiC™ MOSFET half-bridge module 1200 V, 1.4 mΩ with enhanced generation 1, integrated NTC temperature sensor, PressFIT contact technology, and pre-applied Thermal Interface Material. Also available with wave structure on the back side of the base plate for direct liquid cooling (FF1MR12MM1HW_B11).

Features

  • Low switching losses
  • Superior gate oxide reliability
  • Higher gate threshold voltage
  • Higher power output
  • Robust integrated body diode
  • High cosmic ray robustness
  • High speed switching module
  • Tvj op = 175°C overload
  • PressFIT Pins
  • Screw power terminals
  • Integrated NTC temperature sensor
  • Isolated baseplate

Benefits

  • High switching frequency
  • Reduced volume and size
  • Reduction of system costs
  • High thermal efficiency
