CoolSiC™ MOSFET M2 .XT fourpack module 1200 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F4-8MXTR12C2M2_H11
F4-8MXTR12C2M2_H11
ea.
Data Sheet

Product details

  • Applications
    DC-DC Conerter, EV Charger
  • Configuration
    Fourpack
  • Dimensions (length)
    57.1 mm
  • Dimensions (width)
    62.8 mm
  • Features
    .XT interconnection technology, PressFIT
  • Housing
    Easy 2C
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    8.3 mΩ
Recommended
OPN
F48MXTR12C2M2H11BPSA1
Product Status active and preferred
Infineon Package AG-EASY2C
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY2C
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 2C CoolSiC™ MOSFET M2 .XT, fourpack module 1200 V, 8 mΩ with NTC temperature sensor and high current PressFIT contact technology

Features

  • Improved package concept
  • .XT interconnection technology
  • CoolSiC M2 chip technology
  • High current PressFIT pins
  • Integrated NTC temperature sensor
  • Overload conditions up to Tvj over=200°C
  • Enlarged gate-source voltage window

Benefits

  • Outstanding module efficiency
  • System efficiency improvement
  • Enhanced lifetime
  • High temperature withstand capability
  • Reduction of static losses
  • Compact design
  • Full compability to Easy Pack B™

Diagrams

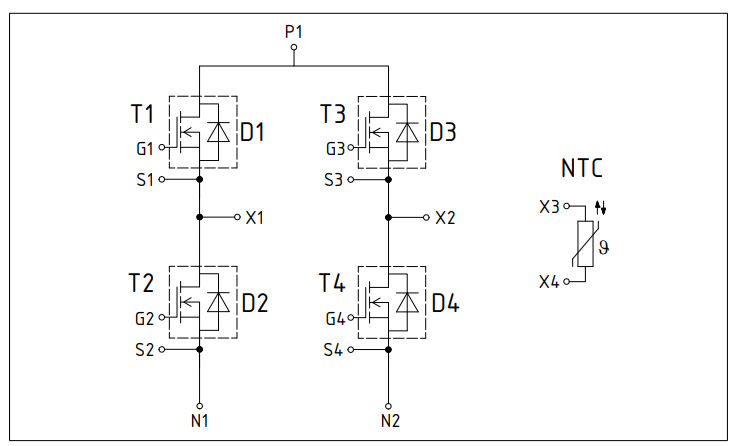

F4-13_F4-8_Circut Diagram
F4-13_F4-8_Circut Diagram
F4-13_F4-8_Circut Diagram F4-13_F4-8_Circut Diagram F4-13_F4-8_Circut Diagram
×
modalImg
