AUIRS21811S

Automotive qualified High and Low Side Driver, SoftTurn-On, Noninverting Inputs, Separate High and Low Side Inputs in a 8-lead SOIC package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIRS21811S
AUIRS21811S
ea.
Data Sheet

Product details

  • Channels
    2
  • Isolation Type
    Functional levelshift
  • Output Current (Sink)
    2.3 A
  • Output Current (Source)
    1.9 A
  • Package
    8-Lead SOIC
  • Qualification
    Automotive
  • Turn Off Propagation Delay
    135 ns
  • Turn On Propagation Delay
    135 ns
  • VBS UVLO (Off)
    8.2 V
  • VBS UVLO (On)
    8.9 V
  • Voltage Class
    600 V
Recommended
OPN
AUIRS21811STR
Product Status active
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The AUIRS21811S is a high-voltage, high-speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage.

Applications

Diagrams

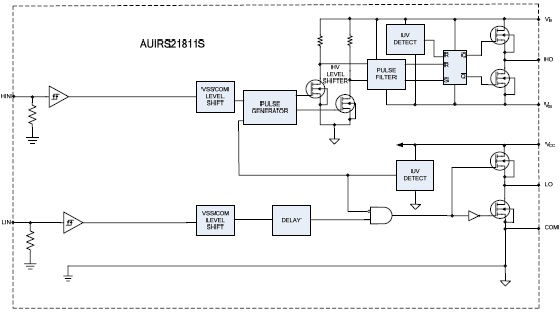

fbd-auirs21811
fbd-auirs21811
fbd-auirs21811 fbd-auirs21811 fbd-auirs21811

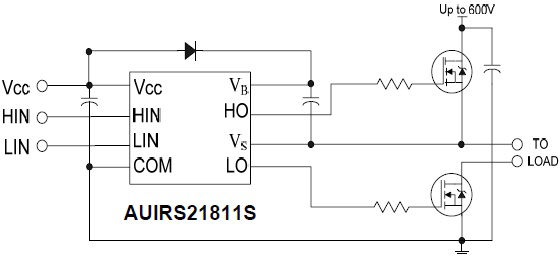

tc-auirs21811 tc-auirs21811 tc-auirs21811
×
