KIT_HB_GAN_BT_RC_PFN_A

NEW
Half-bridge daughter board with CoolGaN™ Transistor 650 V G5 in DFN8x8 and dual-channel bootstrap driver IC
User manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_HB_GAN_BT_RC_PFN_A
KIT_HB_GAN_BT_RC_PFN_A
User manual

Product details

  • Input Voltage max
    650 V
  • Output Current max
    18 A
Recommended
OPN
KITHBGANBTRCPFNATOBO1
Product Status active and preferred
Infineon Package L
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package L
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

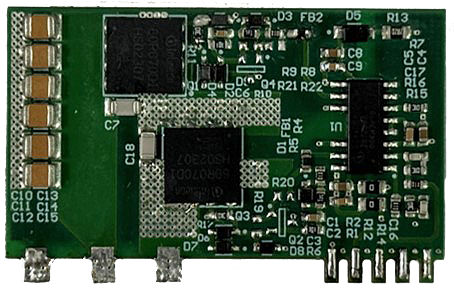

The KIT_HB_GaN_BT_RC_PFN_A is a half-bridge daughter board featuring CoolGaN™ Transistors 650 V G5 in a DFN8x8 package, and a dual-channel bootstrap gate driver IC (EiceDRIVER™ 2EDB7259Y). The board allows the driving of CoolGaN™ with bipolar gate-to-source voltages (RC interface circuit).

Features

  • Universal platform with RC circuit
  • Compact optimized and solution
  • High power and frequency application
  • Easy plug-and-play solution

Benefits

  • Configurable via jumper wires
  • Minimal layout impact concerns
  • Easy replacement of gate drivers
