TLE92466ED

TLE92466ED is designed for control of 6 linear solenoids in automatic transmission, electronic stability control, and active suspension applications.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE92466ED
TLE92466ED
ea.
Data Sheet

Product details

  • Channels
    6
  • Classification
    ISO 26262-compliant
  • Comments
    6 Channel Integrated Constant Current Control IC
  • Operating Voltage
    4 V to 40 V
  • Output Current
    1.5 A
  • Planned to be available until at least
    2039
  • Quiescent Current
    0,01mA
  • RDS (on) (multiple)
    115 mOhm
  • SPI
    32 Bit
Recommended
OPN
TLE92466EDXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-36
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-36
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE92466ED device precisely controls current through inductive loads with <1% error. It supports programmable target currents (0-1500mA, 15-bit resolution) and dither currents up to 1800mA. The built-in dither generator adds programmable triangular/trapezoidal waveform to setpoint. With integrated transistors and sensing resistors, external components are minimized. TLE92466ED is ISO 26262 compliant, ensuring ASIL C safety level.

Features

  • Six independent low side channels
  • <1% current control accuracy
  • Programmable setpoint from 0mA to 1.5A
  • Load current including dither 1.8A
  • Current in parallel channel mode 2.7A
  • Integrated dither generator
  • Integrated sense resistor RSHUNT = 140mΩ
  • Excellent immunity to large load supply
  • Operation down to 3.5 V at VDD pin
  • 33 bit SPI with 8 bit CRC & SPI watchdog
  • Sophisticated protection and diagnostic

Benefits

  • Enables ASIL D on system level
  • Full temp range up to 175°C
  • ±1% Accuracy (-40°C to 150°C)
  • Excellent Battery Ripple Rejection
  • Intuitive family concept,4CH TLE92464ED.
  • Utilize TLE92464ED framework
  • Scalable solution
  • Integrated Power Devices
  • Optimize component placement
  • Implement current limit, slew rate
  • Improved Short-to-Battery performance

Diagrams

tle92464ed 4chx
tle92464ed 4chx
tle92464ed 4chx tle92464ed 4chx tle92464ed 4chx

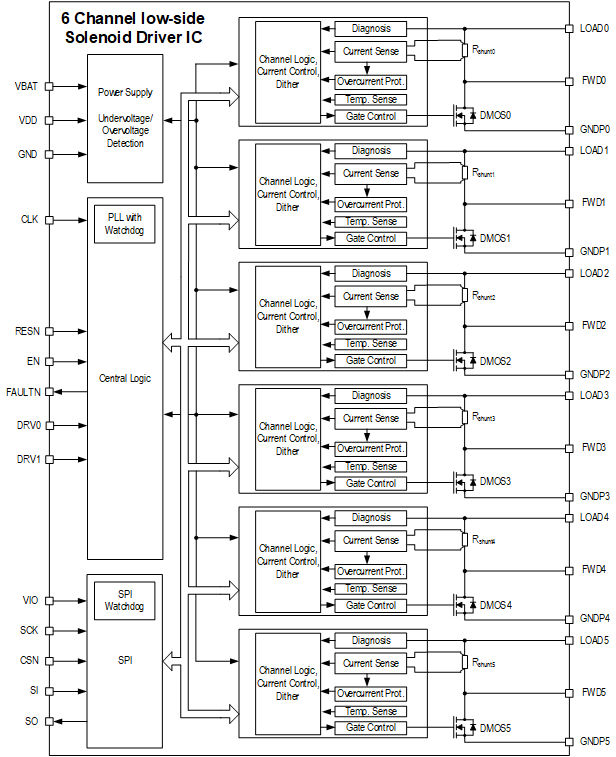

TLE92466ED_Block_diagram_6CHx TLE92466ED_Block_diagram_6CHx TLE92466ED_Block_diagram_6CHx
TLE92466ED_Block_diagram_6CHx TLE92466ED_Block_diagram_6CHx TLE92466ED_Block_diagram_6CHx
×
