IAUCN04S7L023H

NEW
40 V, N-Ch, 2.34 mΩ, Automotive Power MOSFET, SSO8 HB (5x6), OptiMOS™-7
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUCN04S7L023H
IAUCN04S7L023H
ea.
Data Sheet

Product details

  • ID (@25°C) max
    100 A
  • Launch year
    2025
  • Operating Temperature
    -55 °C to 175 °C
  • Planned to be available until at least
    2038
  • Polarity
    N
  • QG (typ @10V)
    29 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    2.34 mΩ
  • Technology
    OptiMOS™-7
  • VDS max
    40 V
  • VGS(th)
    1.5 V
Recommended
OPN
IAUCN04S7L023HATMA1
Product Status active and preferred
Infineon Package
PG-TDSON-8
Package Name Dual SSO8 HB
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TDSON-8
Package Name Dual SSO8 HB
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

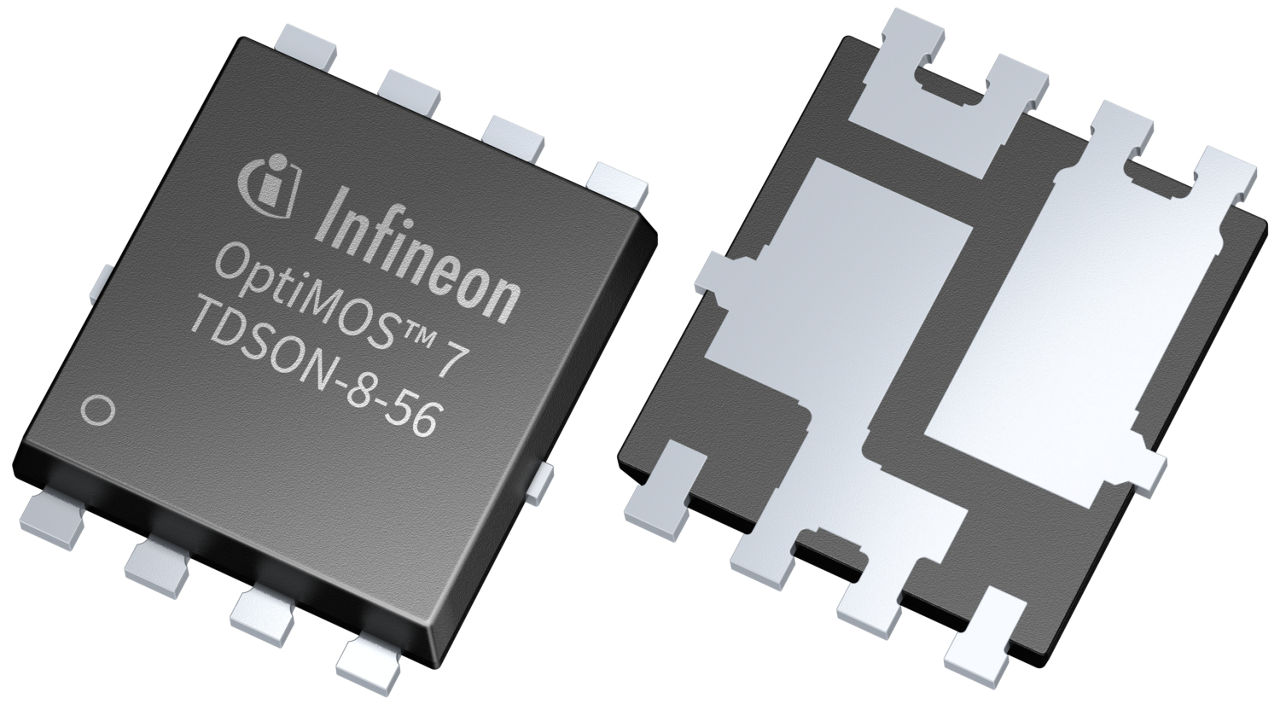

The new integrated SSO8 half-bridge (5x6mm²) is the innovative and cost-efficient package solution for motor drive & body applications. The integrated half-bridge provides the ideal solution for optimized routing in bridge applications and helps reduce the PCB area considerably. The new OptiMOS™-7 40V portfolio provides a wide RDS(on) range from 2.3 mΩ to 5.4 mΩ combined with an increased current rating of up to 100A.

Features

  • 5x6 mm² H-bridge footprint
  • Up to 100A high current capability
  • 2-channel H-bridge configuration
  • Leading-edge OptiMOS™-7 40V
  • RDS(on) range: 2.3 mΩ – 5.4 mΩ
  • Cu-clip for low RDS(on) & low inductance
  • High avalanche capability
  • SOA ruggedness

Benefits

  • High power & current density in H-bridge
  • Optimized layout & form factor
  • High thermal capacity lead-frame
  • Reduced conduction losses
  • Optimized switching behavior
  • JEDEC industry std. package
  • Automotive robust package & IFX quality
