not for new design
RoHS Compliant
Lead-free

ESD101-B1-02ELS

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESD101-B1-02ELS
ESD101-B1-02ELS
ea.
Data Sheet

Product details

  • CL
    0.1 pF
  • IEFT
    30 A
  • IPP
    2 A
  • IR max
    50 µA
  • Protected Lines
    1
  • Rdyn (reverse)
    1.3 Ω
  • Rdyn (forward)
    1.3 Ω
  • Vcl typ. reverse (TLP 16A)
    29
  • Vcl typ. reverse (@16A) max
    29 V
  • VESD
    -12 kV to 12 kV
  • VWM max
    5.5 V
  • VWM min
    -5.5 V
OPN
ESD101B102ELSE6327XTSA1
Product Status not for new design

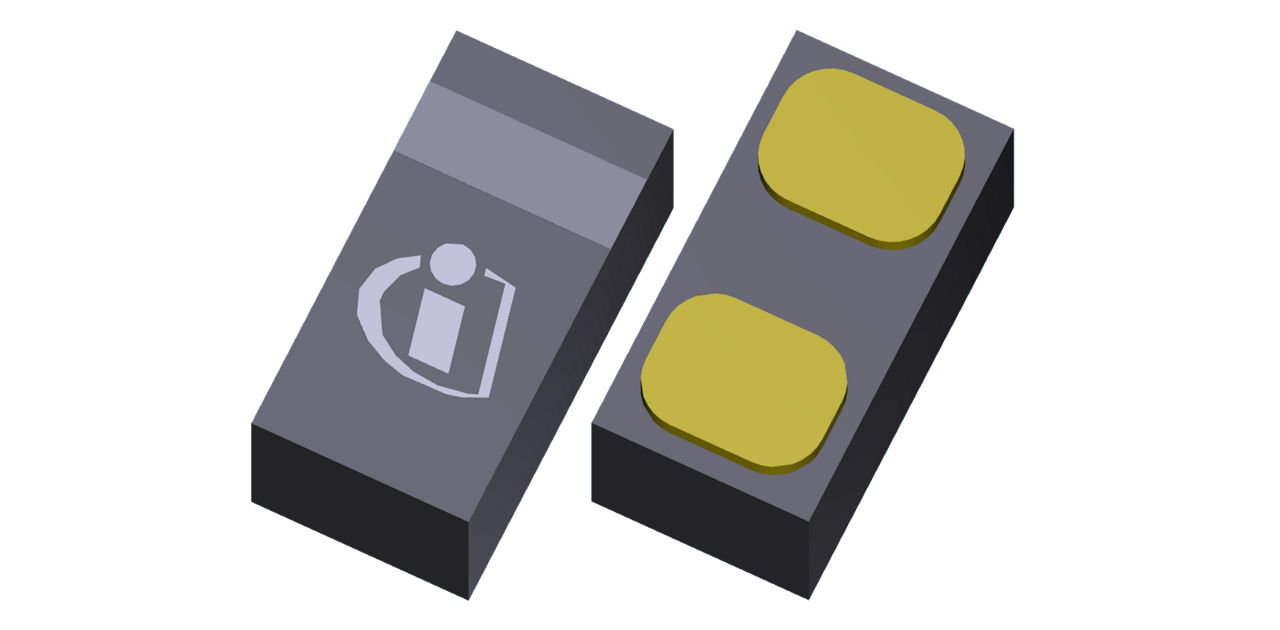

Infineon Package
PG-TSSLP-2-3
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-TSSLP-2-3
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Bi-directional Ultra Low Capacitance ESD / Transient Protection
