BTG7007A-1EPW

12 V | 8 mΩ | 10.3 A | integrated I²t wire protection| automatic Idle mode | 1 channel smart high-side power switch | analog current sense, sequential diagnosis | PG-TSDSO-14 | ISO 26262-compliant | PROFET™ Wire Guard 12V
Data Sheet
package
board
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTG7007A-1EPW
BTG7007A-1EPW
ea.
Data Sheet

Product details

  • Adjustable overcurrent protection
    12.8 A to 77.5 A
  • Certifications
    ISO 26262-compliant
  • Channels
    1
  • Classification
    ISO 26262-compliant
  • Diagnostics
    SENSE
  • Family
    PROFET™ Wire Guard 12V
  • Halogen-free
    yes
  • I²t wire protection range
    6.7 A to 11.4 A
  • Load Current
    10.3 A
  • Mounting
    SMT
  • Nominal Load Current per channel
    10.3 A
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 150°C) max
    14.7 mΩ
  • RDS (on) (@ Tj = 25°C)
    8 mΩ
  • Recommended Operating Voltage
    2.75 V to 28 V
Recommended
OPN
BTG7007A1EPWXUMA2 BTG7007A1EPWXUMA1
Product Status active and preferred discontinued
Infineon Package
PG-TSDSO-14
PG-TSDSO-14
Package Name N/A N/A
Packing Size 3000 3000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 2a 2a
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
View replacement

Product Status
Active
Infineon Package
PG-TSDSO-14
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package
PG-TSDSO-14
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

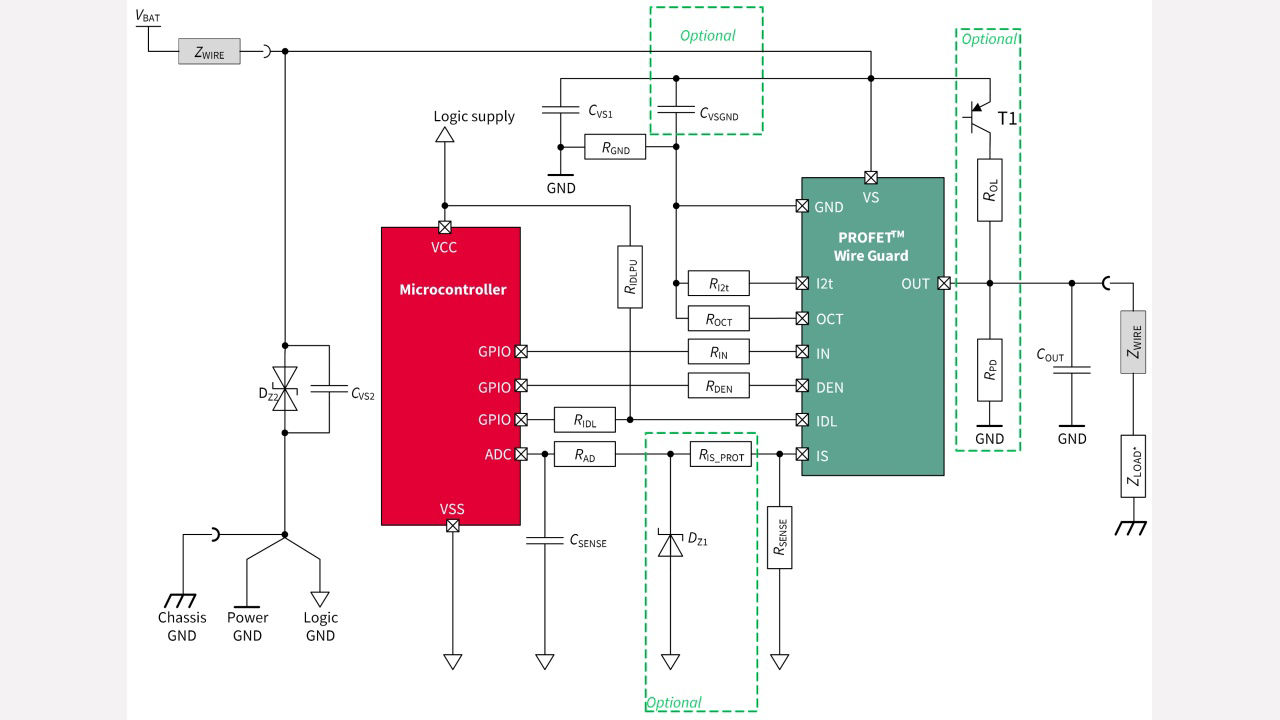

The single-channel high-side power switch BTG7007A-1EPW, member of the PROFET™ Wire Guard family, is designed for wire protection in modern automotive E/E architectures. It is equipped with integrated I²t wire protection, and enhanced diagnostic capabilities. Its adjustable overcurrent protection threshold ensures fast failure isolation towards power supplies and the automatic idle mode reduces the current consumption to ~ 50 µA during parking.

Features

  • High-side switch with embedded protection
  • Sequential diagnosis for status readout
  • Selectable integrated I²t protection
  • Operating current < 60 µA during parking
  • IDL pin for microcontroller wake-up
  • Adjustable overcurrent protection threshold
  • Capacitive load switching mode
  • Reverse ON for reverse polarity
  • Inverse current condition capable

Benefits

  • Precise wire protection
  • Fast failure isolation to power supply
  • Precise application diagnostics
  • Dynamic load control during parking
  • Automatic Idle mode at ~ 50 µA
  • Fast, safe charging of big capacitors
  • pin and footprint compatibility
  • ISO 26262-compliant
