SOT-223

PG-SOT223-3-905

Package details

  • Package Material
    PG
  • Package Family
    PG-SOT223
  • Terminals
    3
  • Variant
    905
  • Exposed Paddle
    No
  • Body Length (mm)
    3.7
  • Body Width (mm)
    6.7
  • Min. Terminal Pitch (mm)
    2.3
  • TUBE
    Pieces/Reel
    Reels/Box

    80
    1
  • TAPE & REEL
    Pieces/Reel
    Reels/Box

    2500
    1
  • TAPE & REEL
    Pieces/Reel
    Reels/Box

    2500
    1
Infineon small outline transistor (SOT), diode (SOD), as well as semi conductor (SC) and semi conductor transistor (SCT) packages are offered various as families. The lead frame based packages can feature symmetric or non-symmetric pinout configurations with a maximum pin count of up to 6. The dual row gullwing shaped leads allow for high-throughput board mounting using surface mount technology (SMT). The lead construction allows for high integration levels, while providing the reliability of the gullwing shape. Typical products are transistors, diodes, MOSFET and bias controllers, driver ICs, surge protection, switches, and more.

Image Gallery

PG-SOT223-3-905_Package Outline
PG-SOT223-3-905_Package Outline

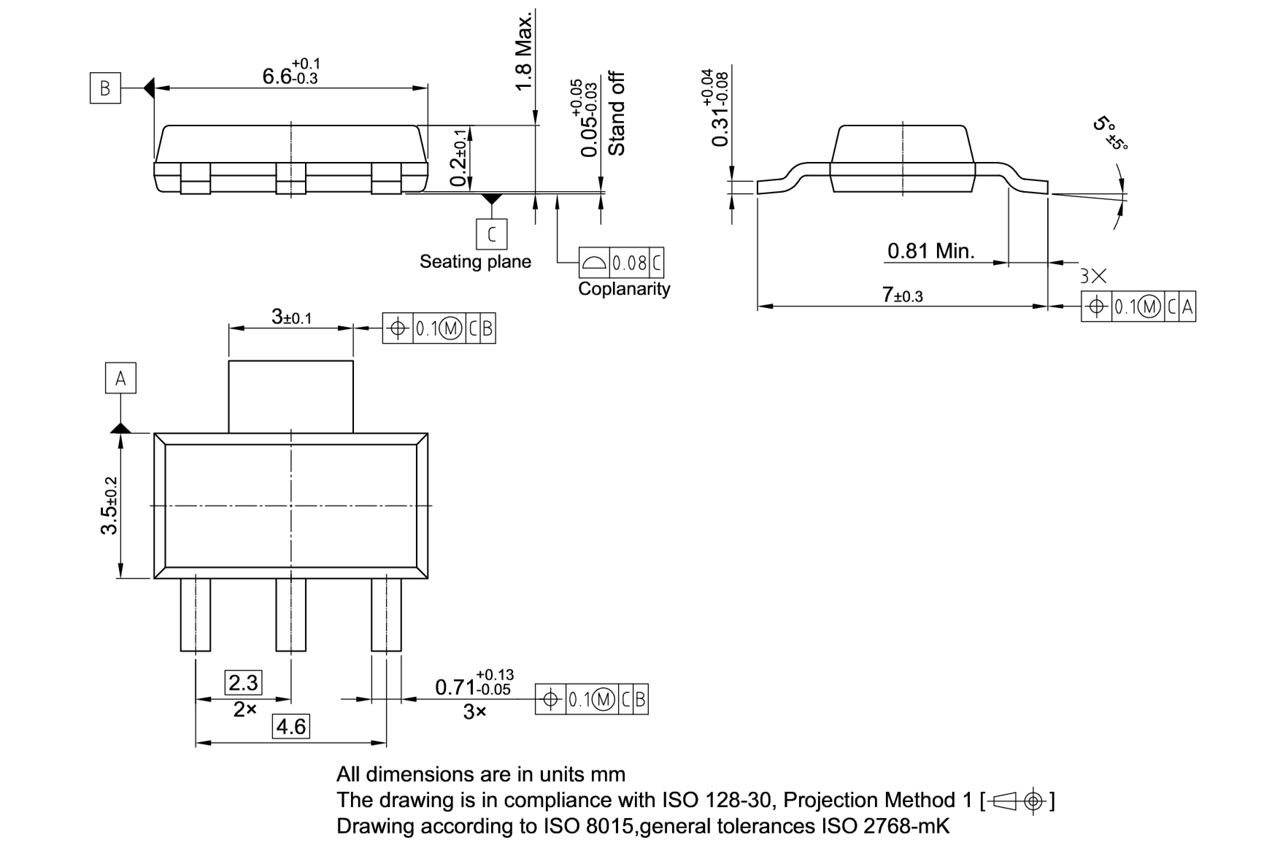

PG-SOT223-3-905_Package Outline PG-SOT223-3-905_Package Outline PG-SOT223-3-905_Package Outline

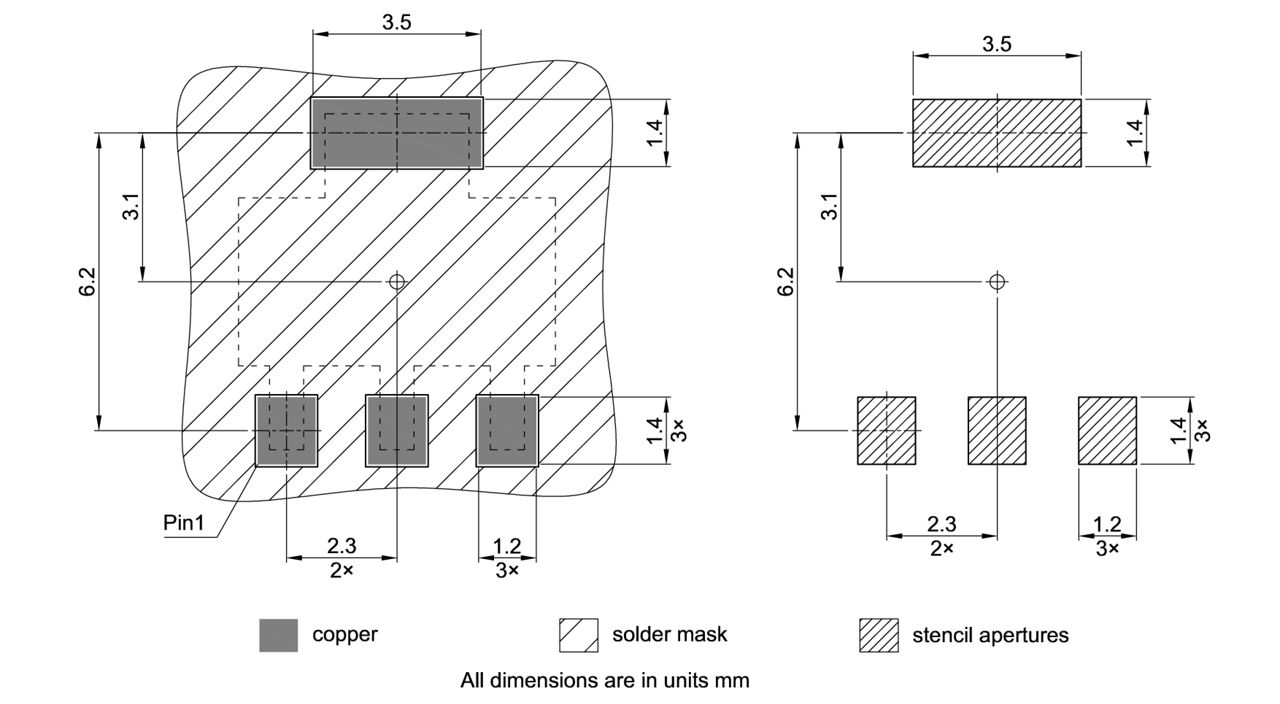

PG-SOT223-3-905_Footprint Drawing PG-SOT223-3-905_Footprint Drawing PG-SOT223-3-905_Footprint Drawing

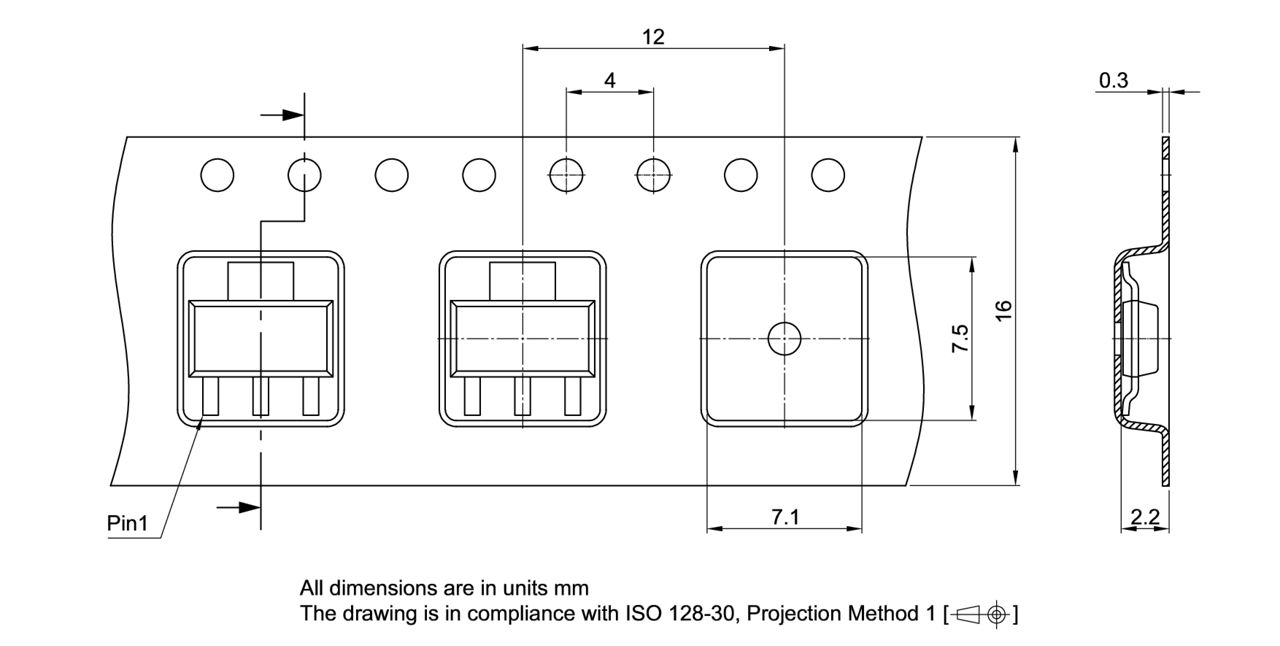

PG-SOT223-3-905_Tape and Reel PG-SOT223-3-905_Tape and Reel PG-SOT223-3-905_Tape and Reel
×
